BALLUFF BES516-329-E5-C-S4 INDUCTIVE SENSOR
Quick Overview
Manufactured By: BALLUFF
Manufacturer Part Number: BES 516-329-E5-C-S 4
IMS Product Code: 1934749
Packaging: Sold Individually
Sold Individually
Kit of 5
Description:

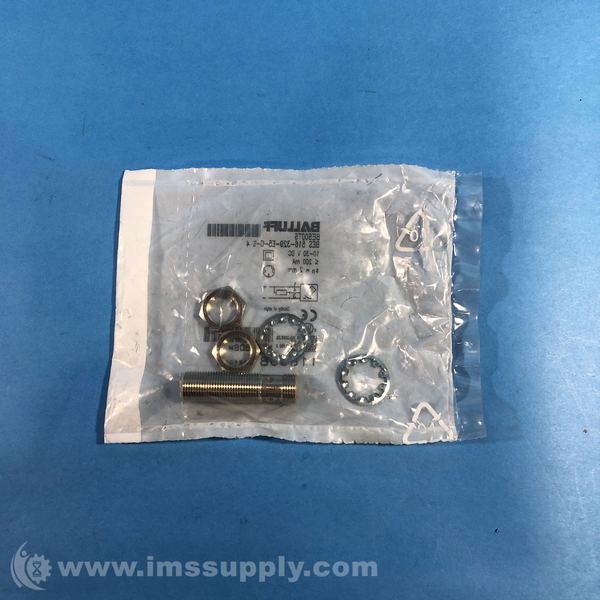

Balluff BES516-329-E5-C-S4 Inductive Sensor
Inductive proximity sensor, M12x1 housing, flush mount, 2 mm sensing range, NPN NO switching output, nickel-plated brass housing
Specifications
- Sensing Range: 2 mm
- Surface Diameter / Body Style: 12 mm / Cylindrical
- Output: 3-wire, DC, NPN, N.O.
- Connection: M12 x 1 , 4-pin
- Supply Voltage: 10.0…30.0 V
- Mech. installation condition: Flush (shielded)
- Rated operating distance Sn: 2.00 mm
- Approvals / Conformity: cULus, CE, EAC
- Basic standard: IEC 60947-5-2
- Enclosure Type per IEC 60529: IP68 according to BWN PR 20
- Housing material: CuZn
- Sensing face material: PBT
- Surface protection: Nickel-plated
- Depth: 45.0 mm
- Diameter d1: M12x1
- Mounting length: 30.0 mm
- Tightening torque: 15 Nm
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Open Box (Special):
This package is missing a locking washer.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
