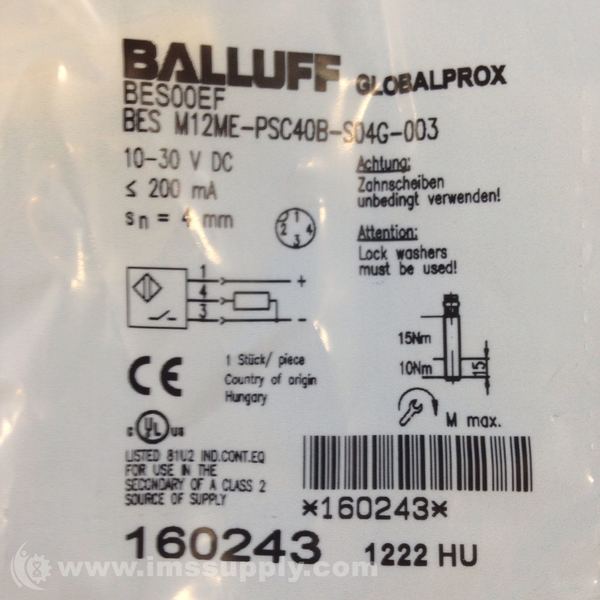

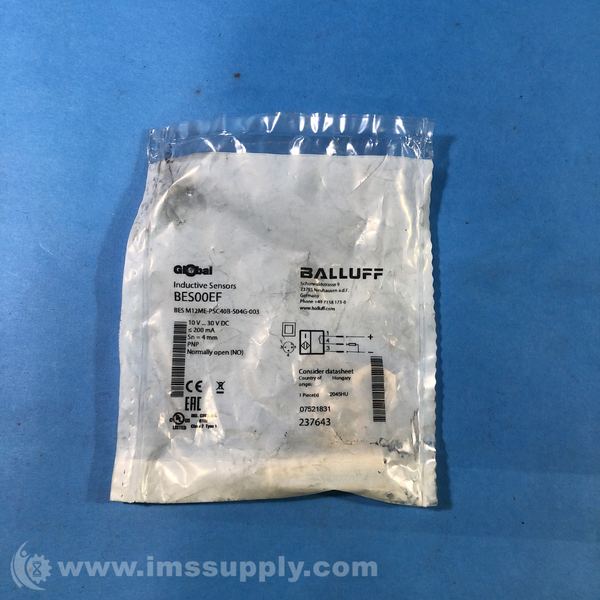

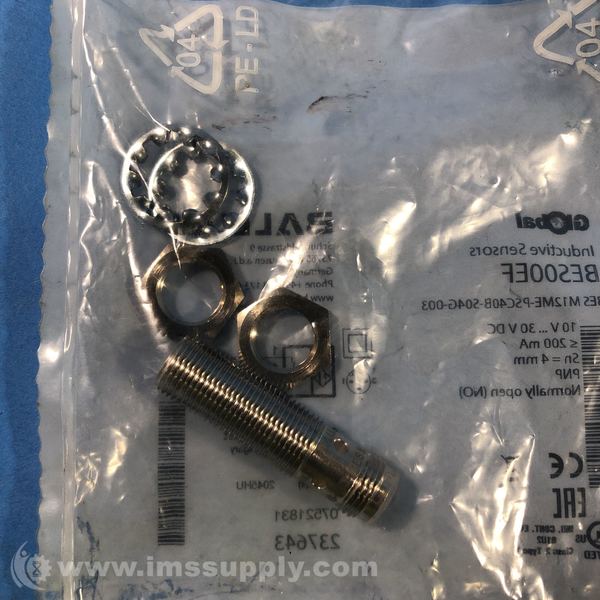

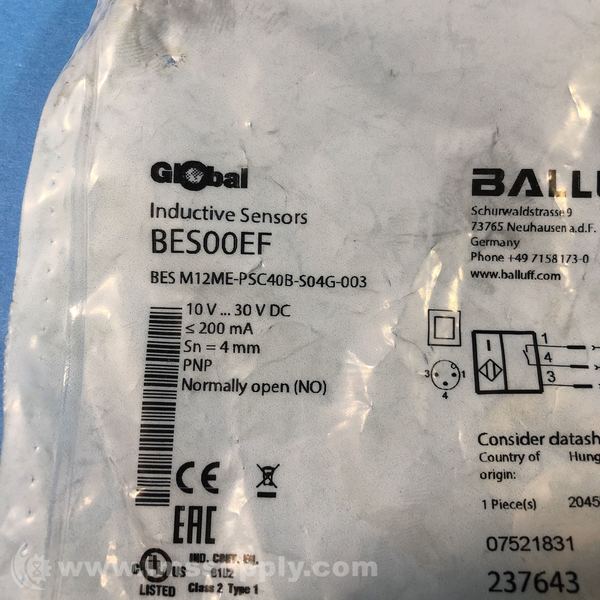

BALLUFF BES-M12ME-PSC40B-S04G-003 INDUCTIVE SENSOR
Quick Overview
Manufactured By: BALLUFF
Manufacturer Part Number: BES-M12ME-PSC40B-S04G-003
IMS Product Code: 309850
Packaging: Sold Individually
Description:
PROXIMITY SWITCH INDUCTIVE 4MM RANGE 10-30VDC PNP
| Body Style | Tubular | |
| Thread Size | M12 x 1 | |
| Output Type | PNP | |
| Detection Range | 4 mm | |
| Terminal Type | Connector | |
| Supply Voltage | 10 → 30 V dc | |
| Length | 45mm | |
| Maximum DC Voltage | 30V | |
| Mounting Type | Flush | |
| IP Rating | IP68 | |
| Switching Current | 200 mA | |
| Housing Material | Copper Zinc | |
| Minimum Operating Temperature | -25°C | |
| Short Circuit Overload Protection | Yes | |
| Maximum Operating Temperature | +70°C | |
| Shielding | Partial | |
| Reverse Polarity Protection | Yes | |
| Switching Frequency | 1000 Hz | |
| Standards Met | CE, CULus, IEC 60947-5-2 |
