BALLUFF BES Q80KA-PAH40B-S04Q INDUCTIVE SENSOR
Quick Overview
Manufactured By: BALLUFF
Manufacturer Part Number: BES Q80KA-PAH40B-S04Q
IMS Product Code: 1854969
Packaging: Sold Individually
Description:

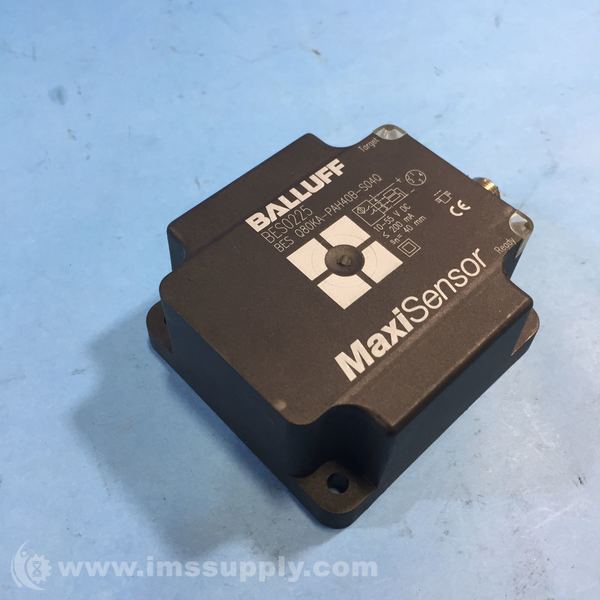

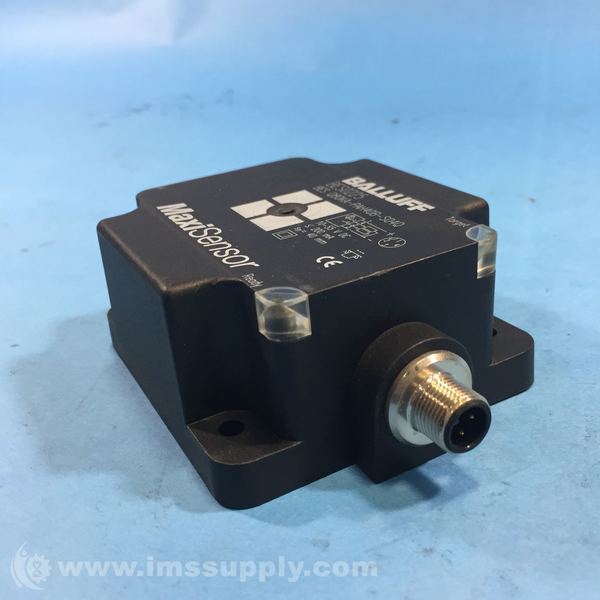

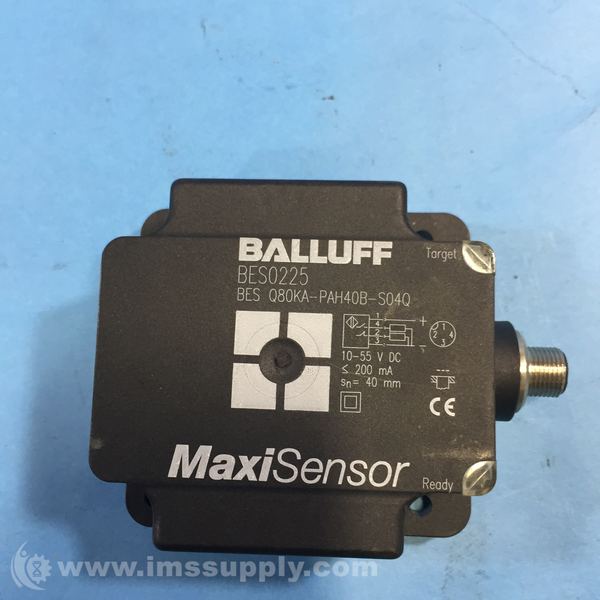

Balluff BES Q80KA-PAH40B-S04Q Inductive Sensor
Inductive sensor for object detection in metal areas, suitable for flush mounting with a sensing range of 40 mm.
Specifications
- Dimension: 106 x 80 x 40 mm
- Installation: For flush mounting
- Switching output: PNP NO/NC
- Housing material: PBT, GF30
- Connection: Connector, M12x1-Male, 4-pin
- Ambient temperature: -25-70 degrees C
- Approval/Conformity: CE, EAC, WEEE
- Style: 80x80
- Range: 40 mm
- Switching frequency: 50 Hz
- Material sensing surface: PBT, GF30
- Operating voltage Ub: 10-55 VDC
- IP rating: IP67
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 14 hours and 57 minutes.
