BALLUFF BES02K4 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: BALLUFF
Manufacturer Part Number: BES02K4
IMS Product Code: 1809490
Packaging: Sold Individually
Description:

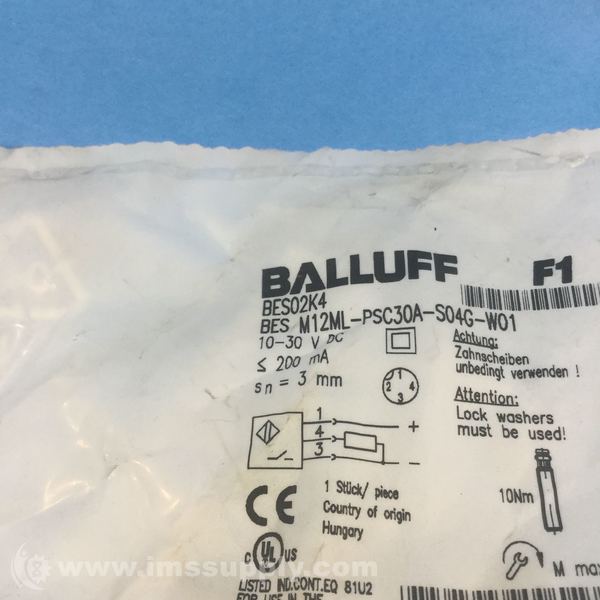

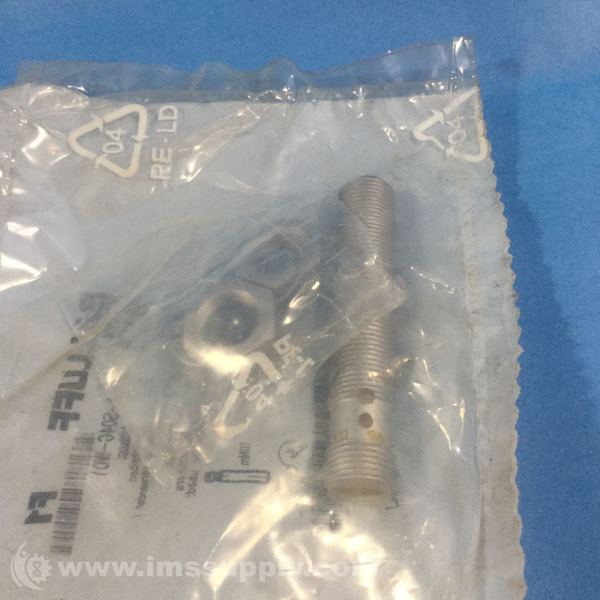

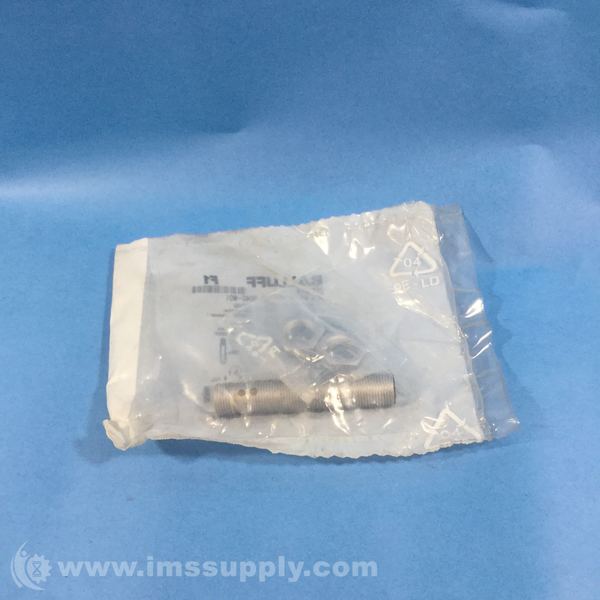

Balluff BES02K4 Inductive Proximity Sensor
Inductive proximity sensor for detecting metal objects, M12x1 housing, PNP normally open output, 3mm sensing range, 10-30V DC operating voltage, IP67 rated, brass housing with PTFE coating.
Specifications
- Dimension: Ø 12 x 65 mm
- Style Housing: M12x1
- Installation: Flush mounting
- Range: 3 mm
- Switching output: PNP Normally open (NO)
- Switching frequency: 2000 Hz
- Housing material: Brass, PTFE coated
- Material sensing surface: Ceramic coated
- Connection: Connector, M12x1-Male, 4-pin
- Operating voltage: 10-30 V DC
- Current: <= 200 mA
- Ambient temperature: -25...70 °C
- IP rating: IP67
- Torque: 10 Nm
- Approvals: CE, cULus
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 26 In Stock
Ships today if ordered in the next 10 hours and 51 minutes.
