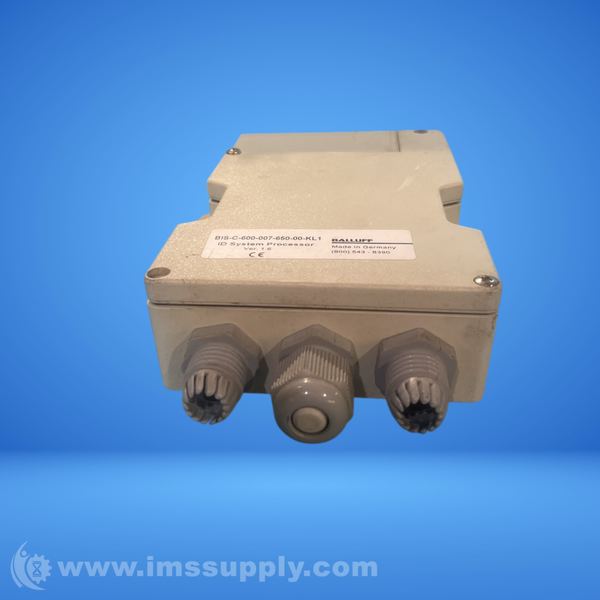

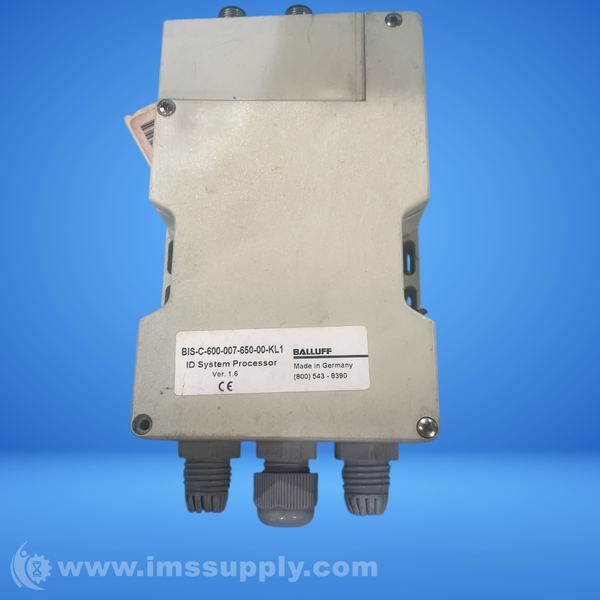

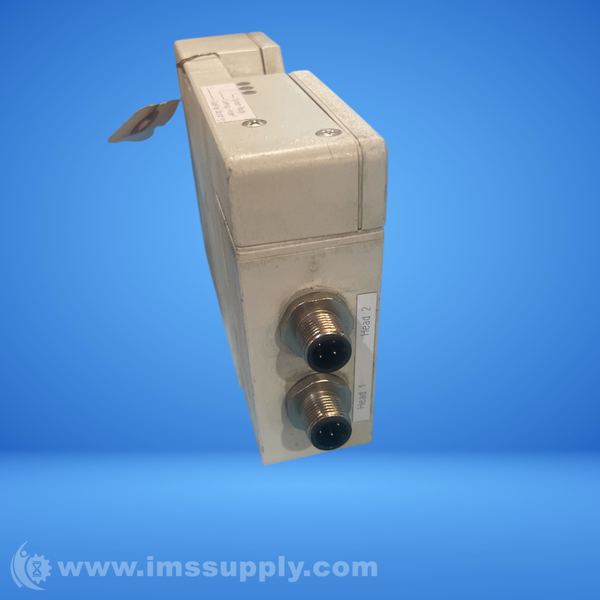

BALLUFF BIS-C-600-007-650-00-KL1 RFID PROCESSOR UNIT
Quick Overview
Manufactured By: BALLUFF
Manufacturer Part Number: BIS-C-600-007-650-00-KL1
IMS Product Code: 2161432
Packaging: Sold Individually
Description:
Balluff BIS-C-600-007-650-00-KL1 RFID Processor Unit
RFID processor unit with RS232 interface, supporting LF 125 kHz frequency.
Specifications
- Frequency: 125 kHz
- Read/Write Distance: up to 60 mm
- Operating Temperature: -25 degrees C to +70 degrees C
- Storage Temperature: -40 degrees C to +85 degrees C
- Dimensions: 86 mm x 36 mm x 14 mm
- Weight: approx. 50 g
- Material: Plastic
- Protection Class: IP67
- Cable Length: 2 m
- Model Type: BIS C-650
- Operating Voltage: 19.2...28.8 VDC
- Interface: RS232
- Number of Connectable S/L Heads/Antennas: 2
- Housing Material: ABS
- Ambient Temperature: 0...60 degrees C
- SW Version: 4.4
- HW Version: 2.1
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 10 minutes.
