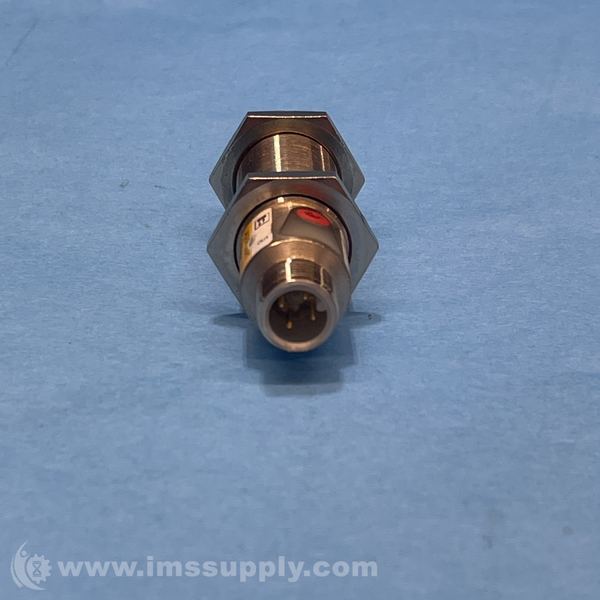

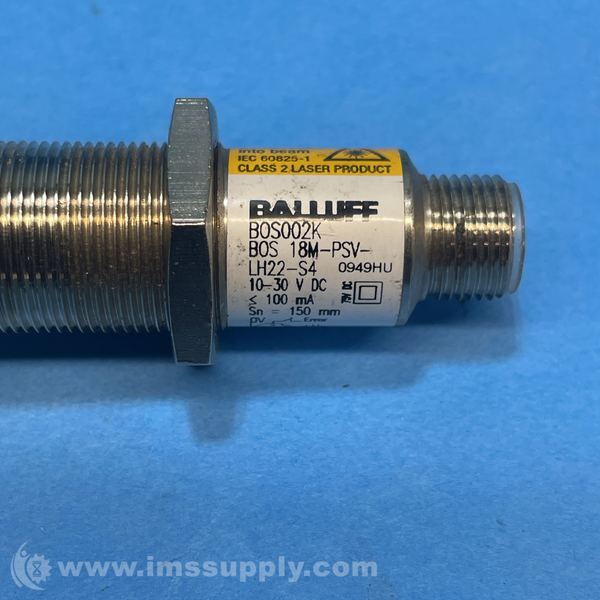

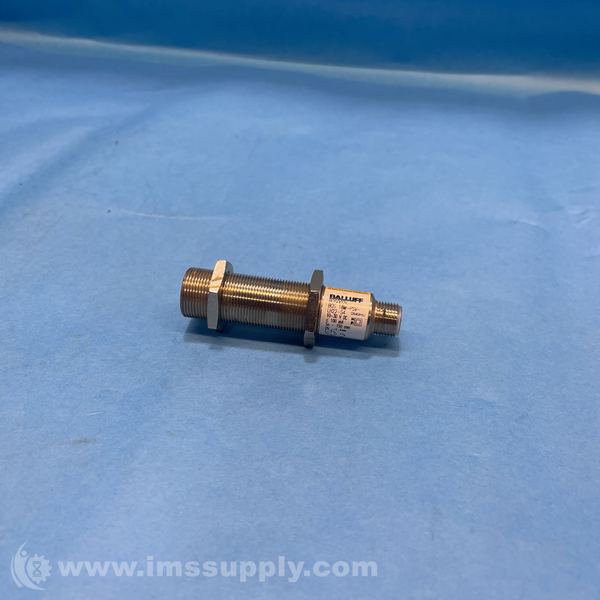

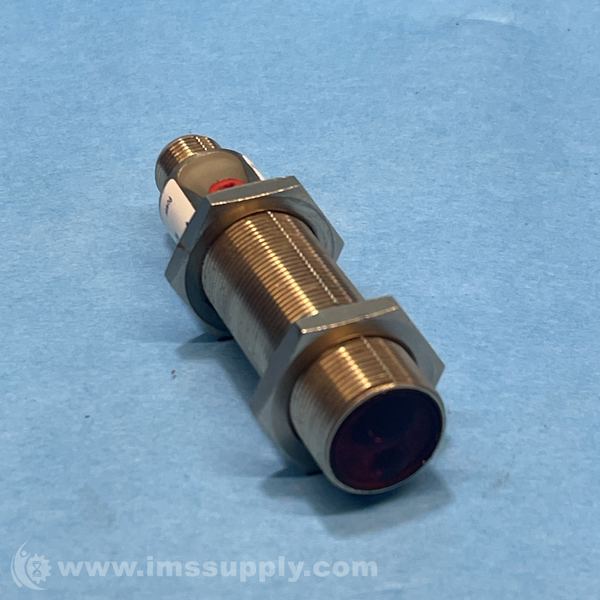

BALLUFF BOS 18M-PSV-LH22-S4 PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: BALLUFF
Manufacturer Part Number: BOS 18M-PSV-LH22-S4
IMS Product Code: 2136655
Packaging: Sold Individually
Description:
Balluff BOS 18M-PSV-LH22-S4 Photoelectric Sensor
Photoelectric Sensor with background suppression, PNP normally open output, 10-30VDC, 100mA, 30-150mm sensing distance
Specifications
- brand: Balluff
- mpn: BOS 18M-PSV-LH22-S4
- series: 18M
- dimension: Ø 18 X 75 MM
- interface: PNP NORMALLY OPEN (NO)
- principle of operation: PHOTOELECTRIC SENSOR
- principle of optical operation: DIFFUSE SENSOR TRIANGULATION
- special optical feature: BACKGROUND SUPPRESSION
- voltage: 10-30VDC
- current: 100mA
- sensing distance: 30-150mm
- output type: PNP NORMALLY OPEN (NO)
- weight: 0.45 kgs
- design: Cylinder, straight optics
- emission type: red light
- adjustable: sensing range
- built-in short circuit protection: yes
- built-in reverse polarity protection: yes
- connection type: plug connector
- connector type: M12x1-S04
- case material: brass
- min. sensing range: 30 mm
- maximum extraneous light: 10,000 lux
- light spot dimensions, typical: 0.05 mm x 0.1 mm in focus
- emission source: red LED
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, October 6, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
