BALLUFF BOS 26K-PA-1LHB-S4-C LASER SENSOR
Quick Overview
Manufactured By: BALLUFF
Manufacturer Part Number: BOS 26K-PA-1LHB-S4-C
IMS Product Code: 1785280
Packaging: Sold Individually
Description:

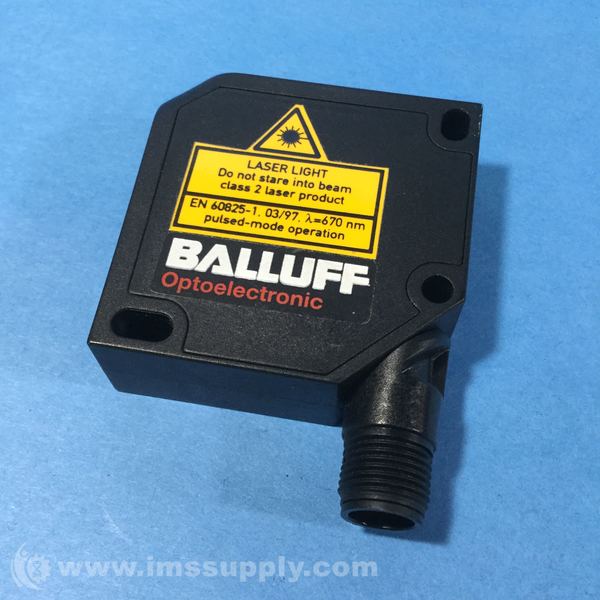

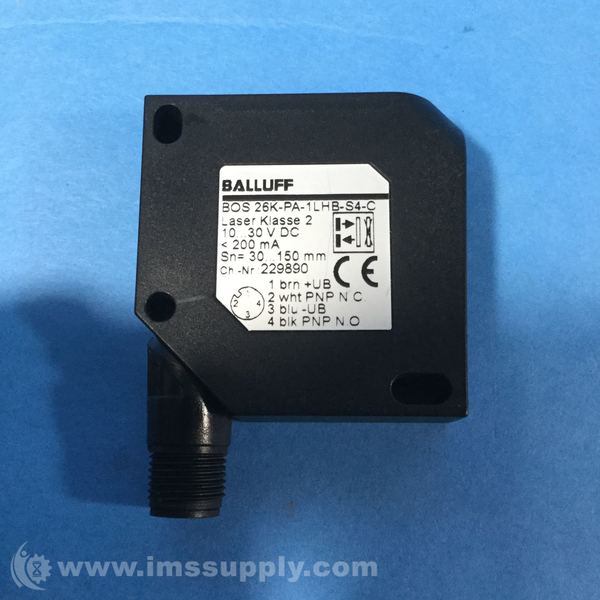

Balluff BOS 26K-PA-1LHB-S4-C Laser Sensor
Photoelectric diffuse sensor with background suppression, laser red light, 10-30 VDC, PNP NO/NC, 30-150 mm sensing range, M12 male 4-pin connector.
Specifications
- Series: 26K
- Dimensions: 17 x 50 x 50 mm
- Interface: PNP normally open (NO) PNP normally closed (NC)
- Functional principle: Optoelectronic sensor
- Optical functional principle: Light sensor, triangulation
- Optical special feature: Background suppression
- Beam characteristics: Focus typically at 80 mm
- Light type: Laser red light
- Light spot size: 0.1 mm in focus
- Range: 30...150 mm
- Connection: Connector, M12x1 plug, 4-pin
- Housing material: ABS
- Active surface, Material: PMMA
- Operating voltage Ub: 10...30 VDC
- Approval/Conformity: cULusCEEACWEEE
- Laser Class: 2
- Laser radiation: Do not look into beam
- EN 60825-1: Pp<3.5 mW; t=6us F=14 kHz lambda=670 nm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
