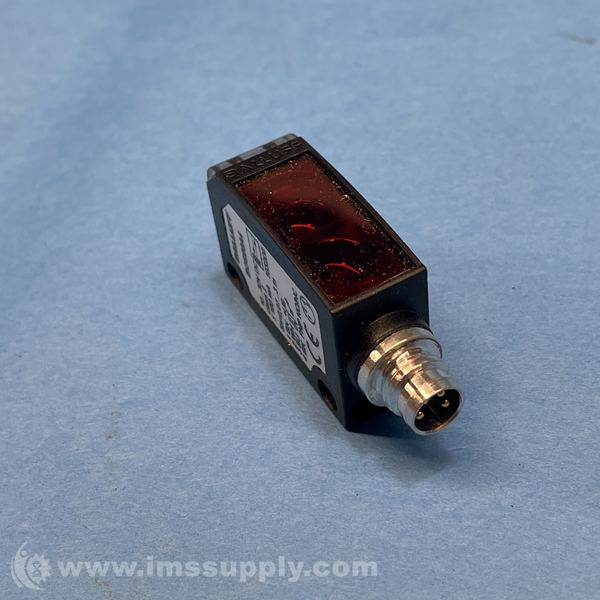

BALLUFF BOS 6K-PU-1LQA-S75-C LASER PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: BALLUFF
Manufacturer Part Number: BOS6K-PU-1LQA-S75-C
IMS Product Code: 2136218
Packaging: Sold Individually
Description:
Balluff BOS 6K-PU-1LQA-S75-C Laser Photoelectric Sensor
Laser photoelectric sensor with retro-reflective type functionality, operating at 10-30 VDC, consuming 100 mA, and featuring PNP normally open/normally closed output with M8 4-pin connector.
Specifications
- voltage: 10-30 VDC
- current: 100 mA
- ambient temperature: -20..60 degrees C
- connector type: M8x1-S75
- housing material: ABS
- mounting type: Screw: M3
- operating range: 0...3 m
- light type: Laser red light
- dimensions: 12.0 mm x 21.0 x 37.0 mm
- series: 6K
- design: Square, 90° connector
- emission type: LED, red
- optical feature: Background suppression
- connection type: Cable with detachable connector
- cable length: 0.50 m
- scanning area: 25...100 mm
- light spot dimensions: 5 mm x 5 mm at 60 mm

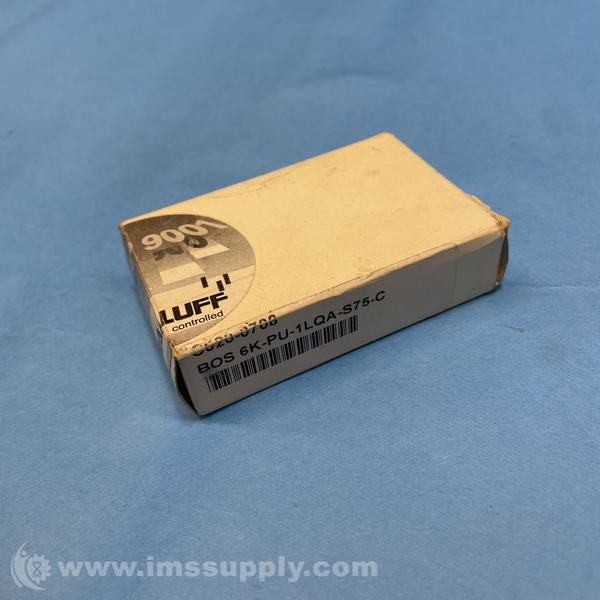

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 16 hours and 19 minutes.
