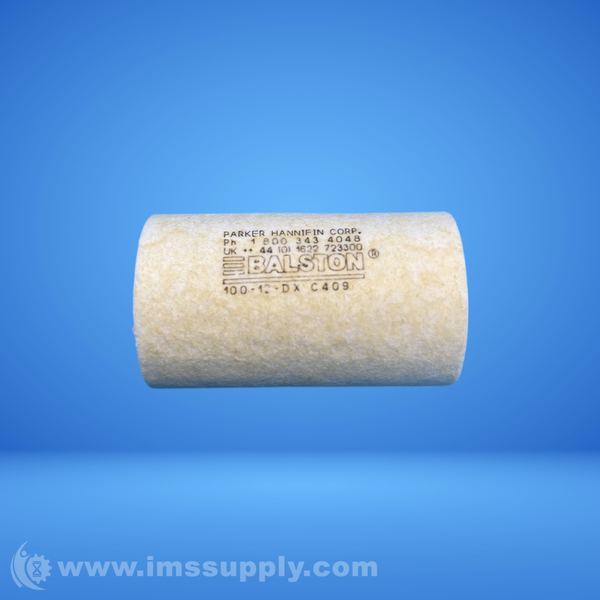

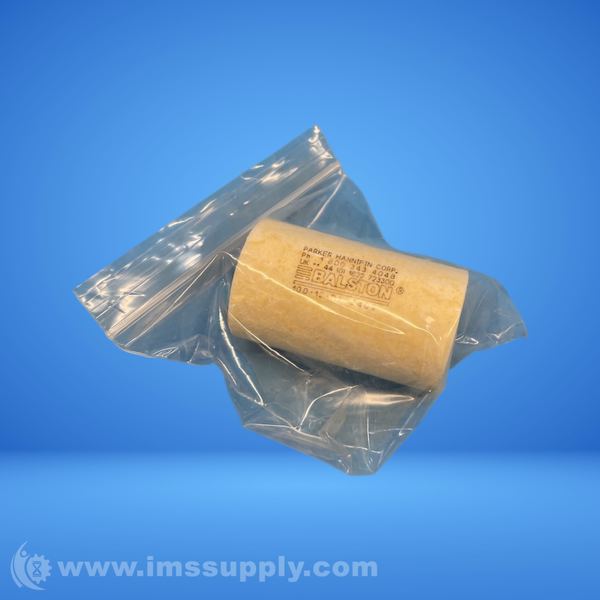

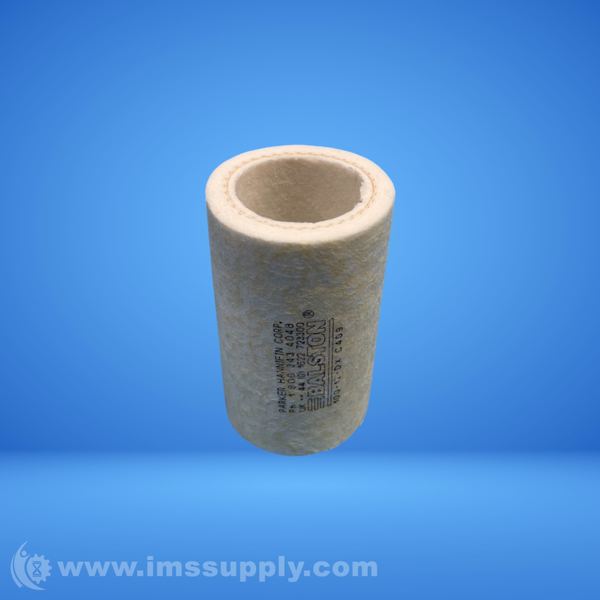

BALSTON 100-12-DX COALESCING FILTER ELEMENT
Quick Overview
Manufactured By: BALSTON
Manufacturer Part Number: 100-12-DX
IMS Product Code: 2121062
Packaging: Sold Individually
Description:
Balston 100-12-DX Coalescing Filter Element
Coalescing filter element for compressed air systems, made with borosilicate microfiber and fluoro-carbon resin binder. 93% efficiency at 0.01 µm, maximum operating temperature 125°F.
Specifications
- Type: Coalescing Filter Element
- Filter Grade: DX
- Filter Rating: 93% at 0.01 µm
- Micron Rating: 0.01 µm
- Filter Media: Borosilicate MicroFiber w/ FluoroCarbon Resin Binder
- Length: 2.500 inches
- Outer Diameter: 1.700 inches
- Inner Diameter: 1.000 inch
- Maximum Flow: 20 SCFM @ 100 PSIG
- Operating Temperature Range: MAX 125 F
- Initial Differential Pressure: .5 PSID
