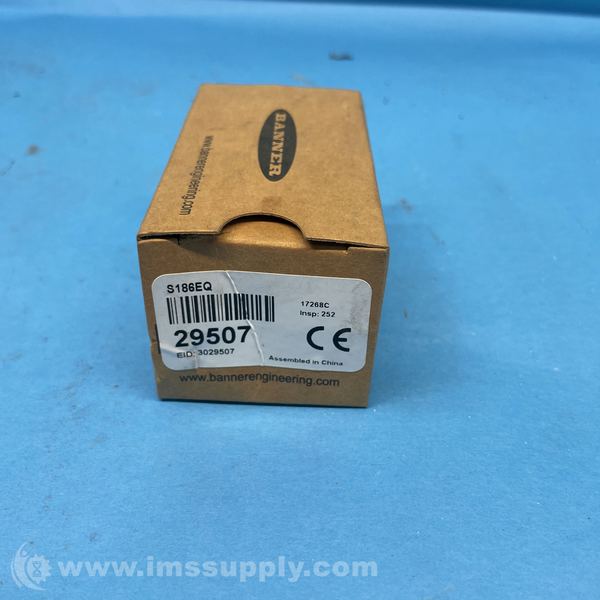

BANNER ENGINEERING CORP. 29507 S186EQ EMITTER
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: 29507
IMS Product Code: 2135835
Packaging: Sold Individually
Description:

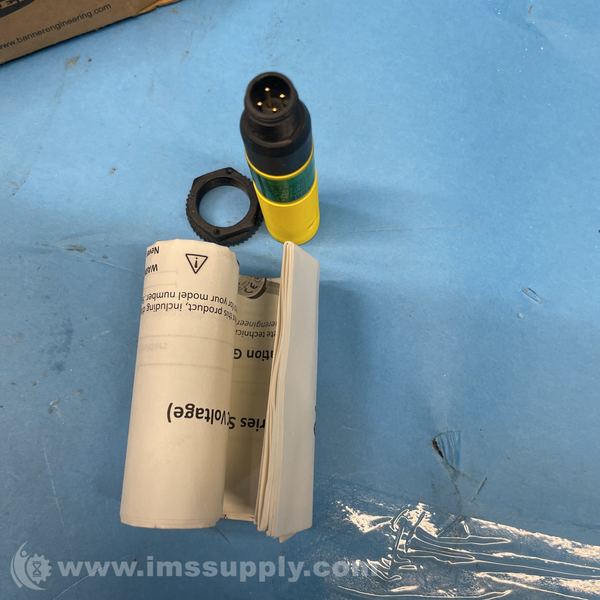

Banner Engineering Corp. 29507 S186EQ Emitter
Infrared LED emitter for opposed-mode sensing, 10-30V DC, IP67/IP69K, M12 quick disconnect, 20m range.
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Mode: Opposed
- Sensing Beam: Infrared LED
- Max Sensing Distance: 20000 mm
- Connection: Integral QD
- Quick Disconnect Type: M12
- Number of Pins: 4
- IP Rating: IP67, IP69K
- NEMA / UL Type Rating: NEMA 4X
- Housing Style: Barrel
- Barrel Diameter: 18 mm
- Primary Housing Material: Thermoplastic
- Lens Material: Polycarbonate
- Min Op. Temp.: -40 degrees C
- Max Op. Temp.: 70 degrees C
- Max Op. Relative Humidity: 90% @ 50C
- Delay at Power-up: 100 ms
- Repeatability: 375 µs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 34 minutes.
