BANNER 33413 T18 FIXED FIELD SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: 33413
IMS Product Code: 2121333
Packaging: Sold Individually
Description:

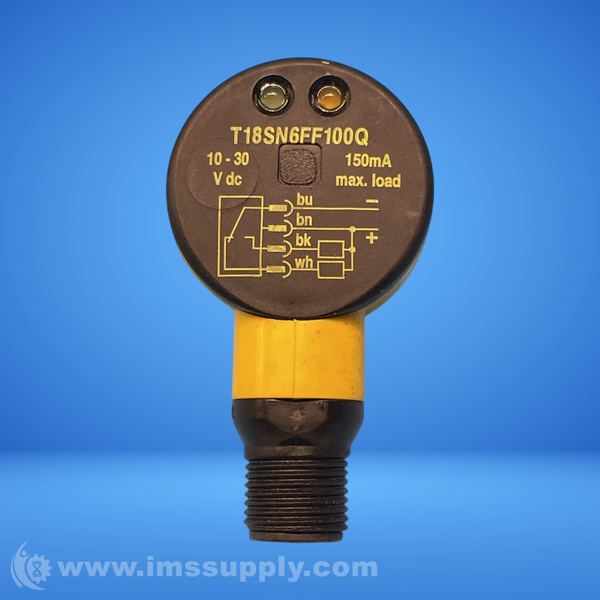

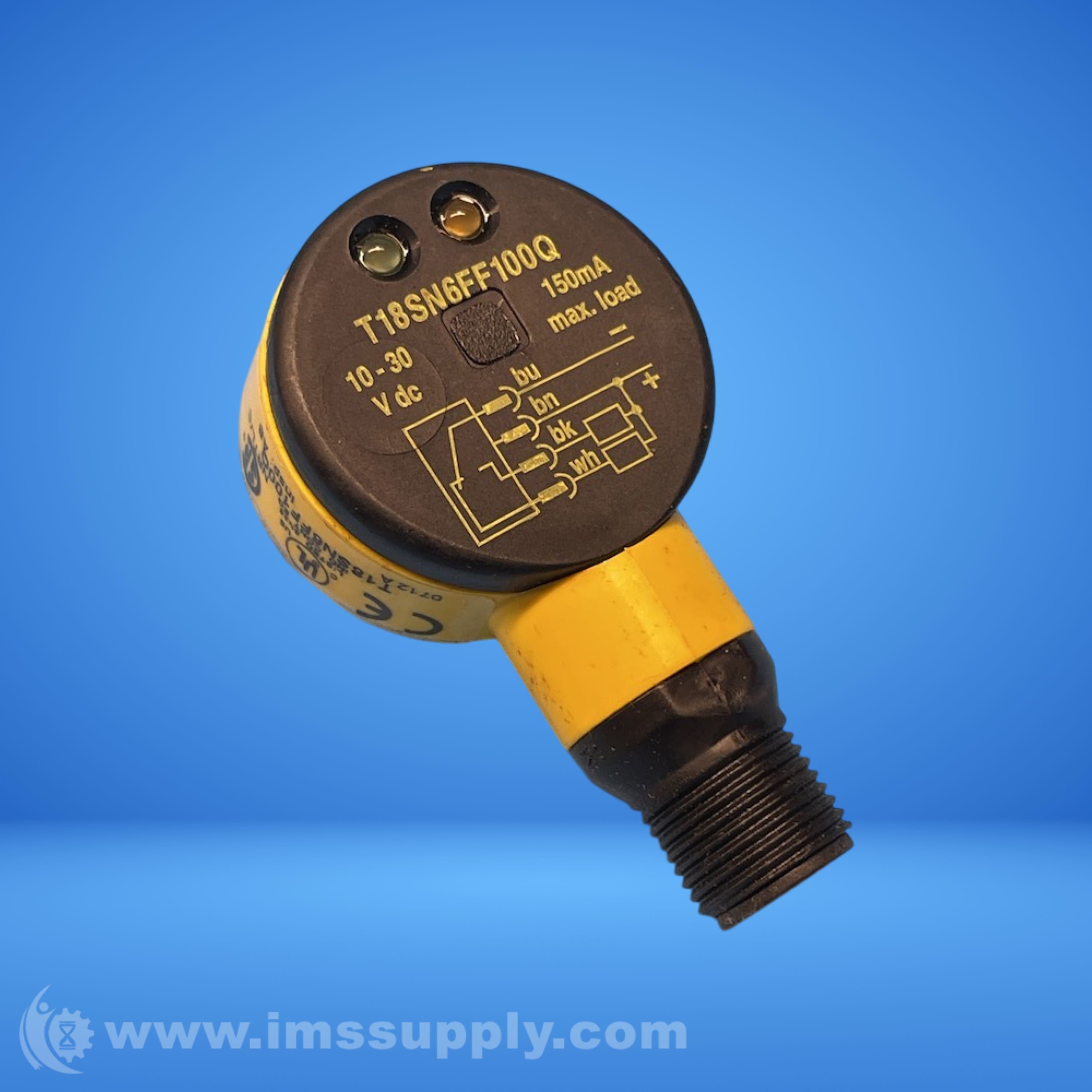

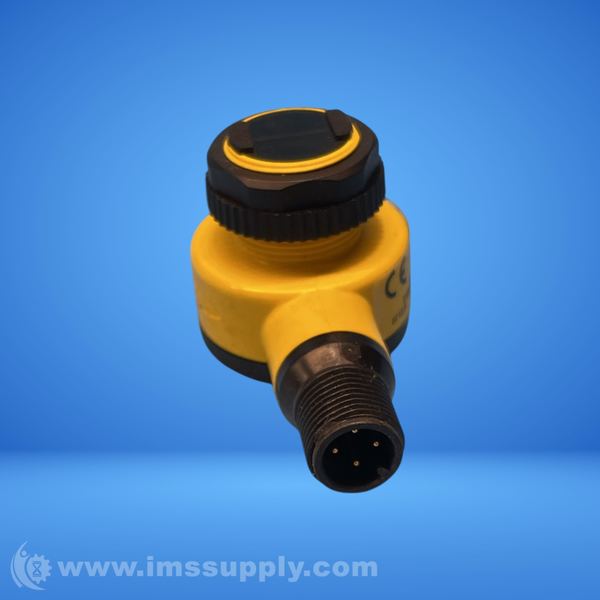

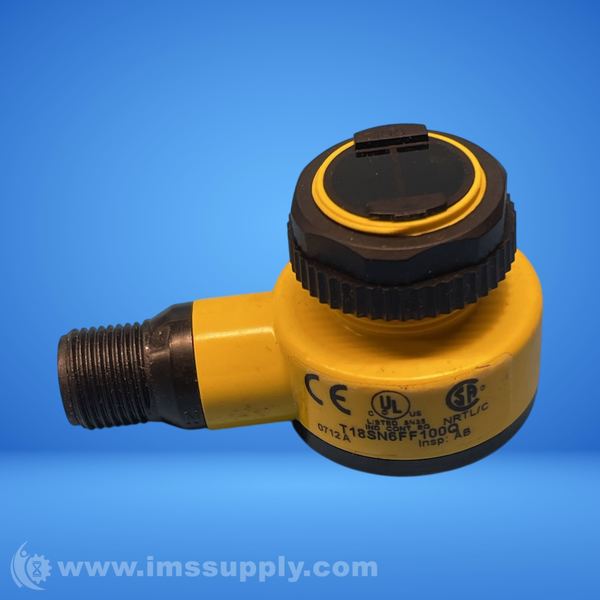

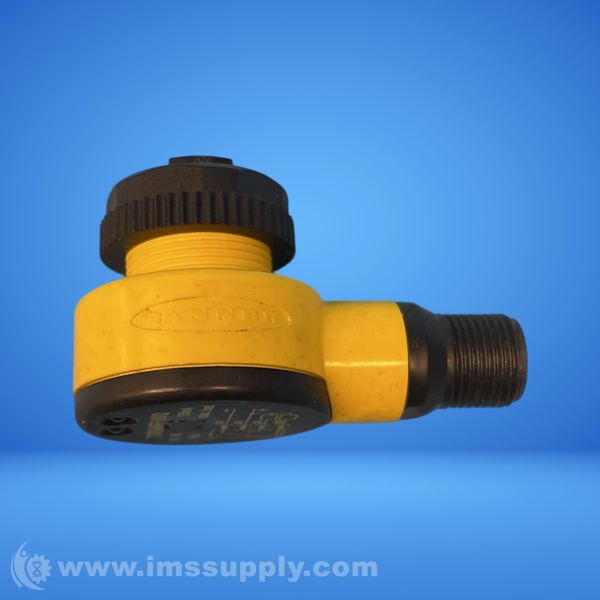

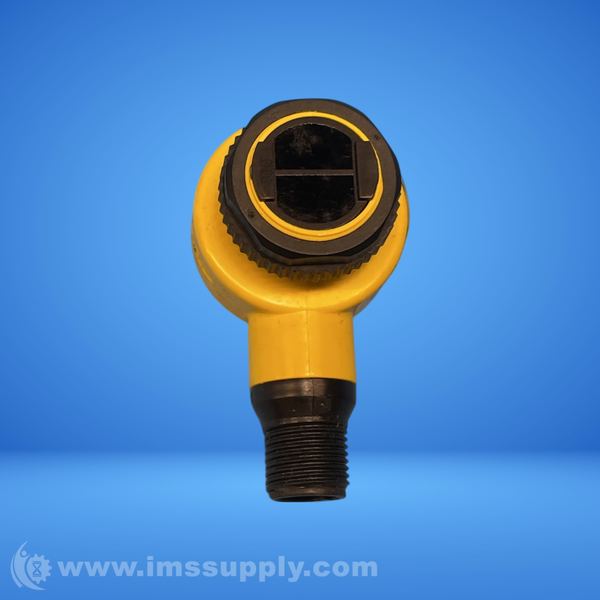

Banner 33413 T18 Fixed Field Sensor
T18 Series Self-Contained Barrel-Mount Sensor
Specifications
- Power: DC
- Sensing Beam: Infrared LED
- IP Rating: IP67, IP69K
- NEMA / UL Type Rating: NEMA 4X
- Supply Voltage: 10-30 V dc
- Sensing Mode (General): Proximity
- Sensing Mode (Detailed): Background Suppression (Fixed)
- Housing Style: Barrel
- Primary Housing Material: Thermoplastic
- Input Output: Discrete
- Max Sensing Distance (mm): 100
- Outputs: NPN
- Connection: Integral QD
- Quick Disconnect Type: M12
- Operation: Light/Dark Operate
- Min Op. Temp. (C): -40
- Max Op. Temp. (C): 70
- Output response time (ms): 3
- Delay at Power-up (ms): 100
- Repeatability (µs): 750
- Number of Pins: 4
- Max Op. Relative Humidity [%]: 90% @ 50°C
- Lens Material: Acrylic
- Barrel Diameter (mm): 18
- Indicator: LEDs

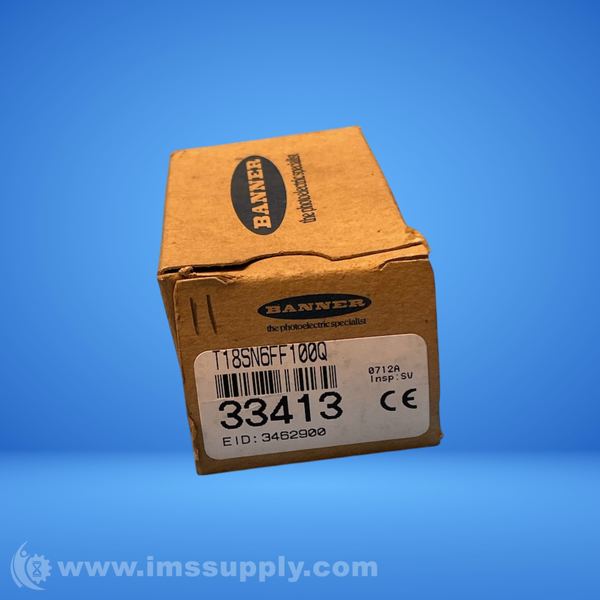

New - Open Box:
