BANNER ENGINEERING CORP. 70231 LASER DIFFUSE SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.

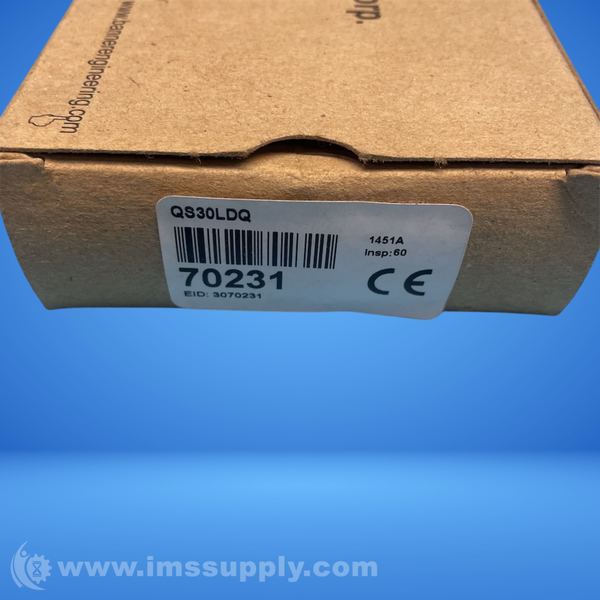

Manufacturer Part Number: 70231
IMS Product Code: 2145828
Packaging: Sold Individually
Description:

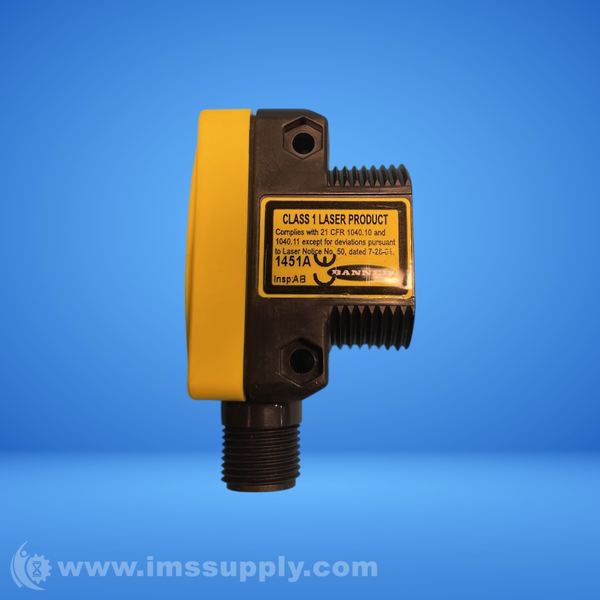

Banner Engineering Corp. 70231 Laser Diffuse Sensor
Class 1 laser diffuse sensor with 400mm range, 10-30V DC input, bipolar NPN/PNP output, and M12 quick-disconnect connector.
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Beam: Visible Red Laser
- Max Sensing Distance: 400 mm
- Outputs: Bipolar (NPN & PNP)
- Connection: Integral QD
- Quick Disconnect Type: M12
- Operation: Light/Dark Operate
- Min Op. Temp.: -10 degrees C
- Max Op. Temp.: 50 degrees C
- Output Response Time: 0.5 ms
- Repeatability: 70 µs
- Number of Pins: 5
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Housing Style: Rectangular w/M30 Mount
- Primary Housing Material: Thermoplastic
- Lens Material: Acrylic
- Laser Classification: Class 1
- Sensing Mode: Diffuse
- Adjustments: Teach Button
- Indicator: LEDs
- Feature: Timing (Hold/Delay)
- Feature: Remote Teach
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
