BANNER 75979 K50 SERIES EZ-LIGHT SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: 75979
IMS Product Code: 2145827
Packaging: Sold Individually
Description:

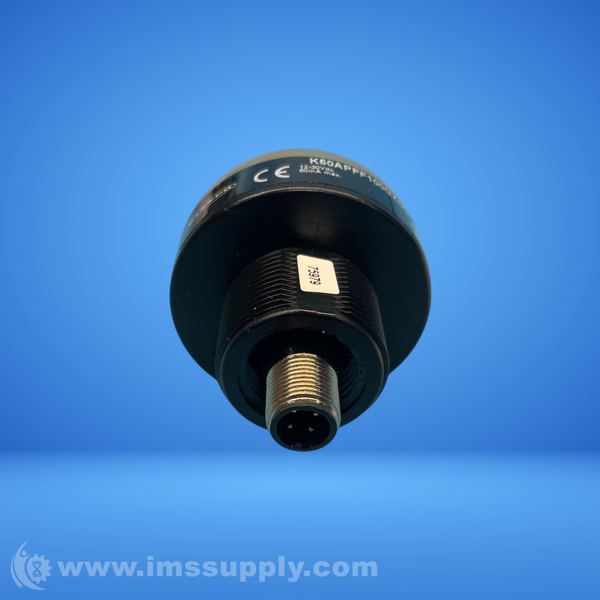

Banner 75979 K50 Series EZ-Light Sensor
1-Color Fixed-Field Sensor with 12-30 V DC voltage, Polycarbonate housing, IP67 and IP69K rating, 100 mm range, PNP (NO) input, Green color, 4-pin M12 Integral QD connection.
Specifications
- Supply Voltage: 12-30 V dc
- Housing Style: Dome
- Primary Housing Material: Polycarbonate
- Mounting Thread: M30 x 1.5
- Number of Colors: 1
- Product Size (mm): 50
- Color Option 1: Green
- Animation Option 1: Solid On
- Connection: Integral QD
- Quick Disconnect Type: M12
- Max Current Color (mA): 75
- Number of Input Pins/Conductors: 4
- Output Type: PNP
- Input Type: PNP
- Maximum Sensing Distance (mm): 100
- Physical Dimensions (LxWxH or DxH mm): 50.0 x 67.8
- Environmental Rating: IP67; IP69K
- Min Op. Temperature (C): -40
- Max Op. Relative Humidity Non-Condensing (%): 90% @ 50°C
- Primary Window Material: Polycrbonate Diffused
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
