BANNER ENGINEERING CORP. 78925 K30LGRYPQ 3-COLOR INDICATOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: 78925
IMS Product Code: 2145835
Packaging: Sold Individually
Description:

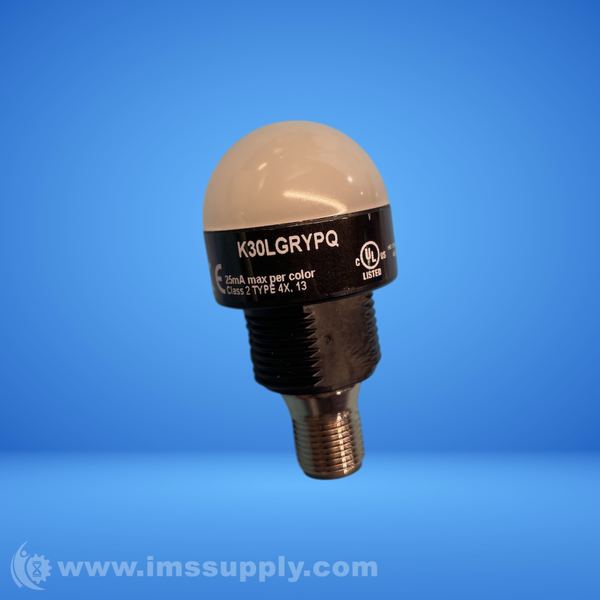

Banner Engineering Corp. 78925 K30LGRYPQ 3-Color Indicator
3-Color General Purpose Indicator with PNP Input, M12 Integral QD, Green/Red/Yellow Colors
Specifications
- Supply Voltage: 10-30 V dc
- Housing Style: Base Mount - Dome Window
- Primary Housing Material: Polycarbonate
- Mounting Thread: M22 x 1.5
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Number of Colors: 3
- Product Size (mm): 30
- Color Technology: Standard LED
- Color Option 1: Green
- Color Option 2: Red
- Color Option 3: Yellow
- Connection: Integral QD
- Quick Disconnect Type: M12
- Max Current Color (mA): 25
- Number of Input Pins/Conductors: 4
- Input Type: PNP
- Max Input Response Time (ms): 1
- Physical Dimensions (LxWxH or DxH mm): 30.0 x 57.0
- Environmental Rating: IP67; IP69K
- Min Op. Temperature (C): -40
- Storage Temp (C): -40 to 70
- Primary Housing Color: Black
- Primary Window Material: Polycarbonate Diffused
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 13 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
