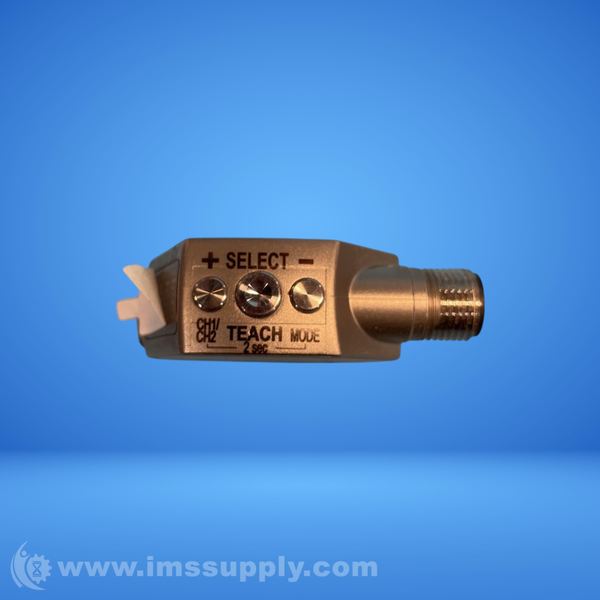

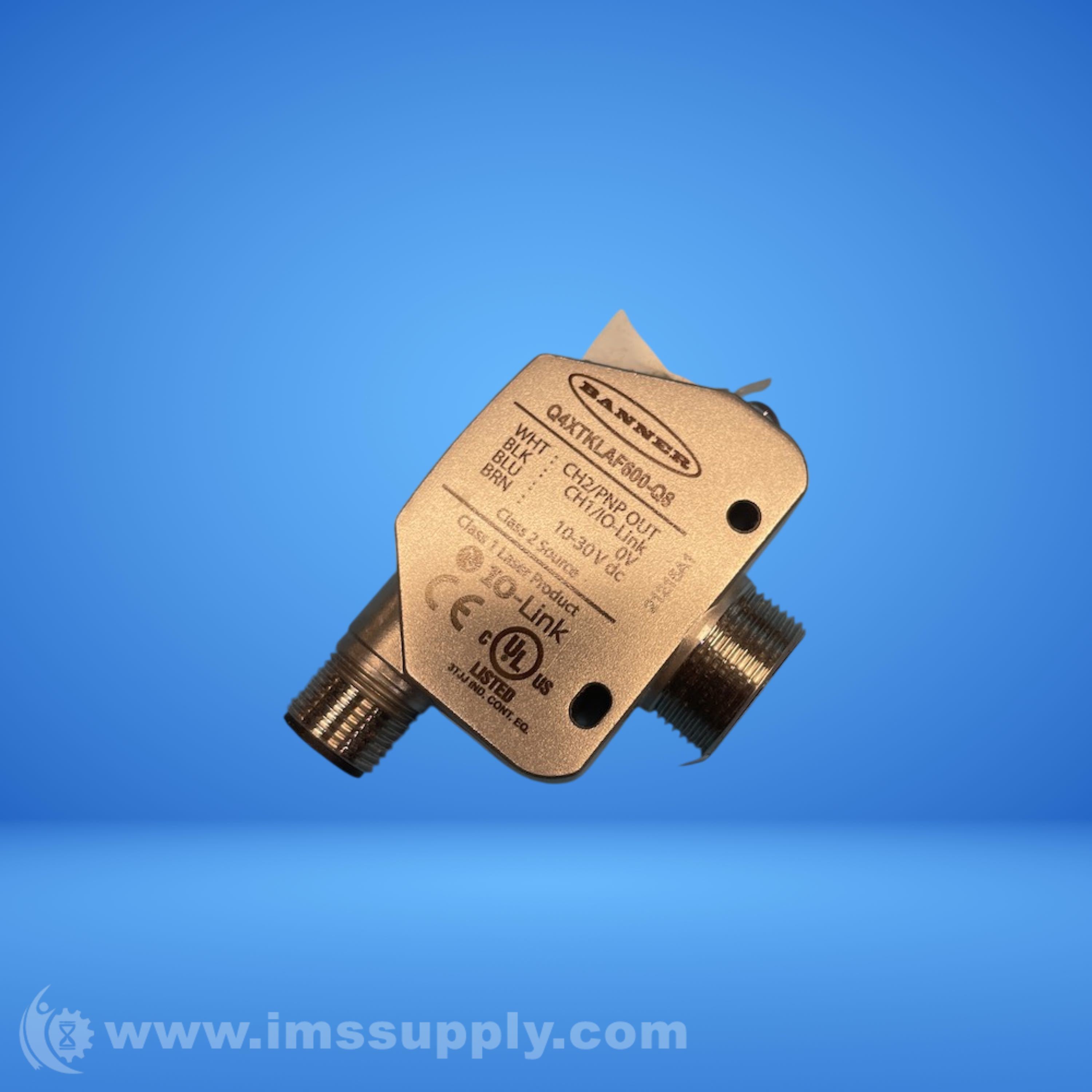

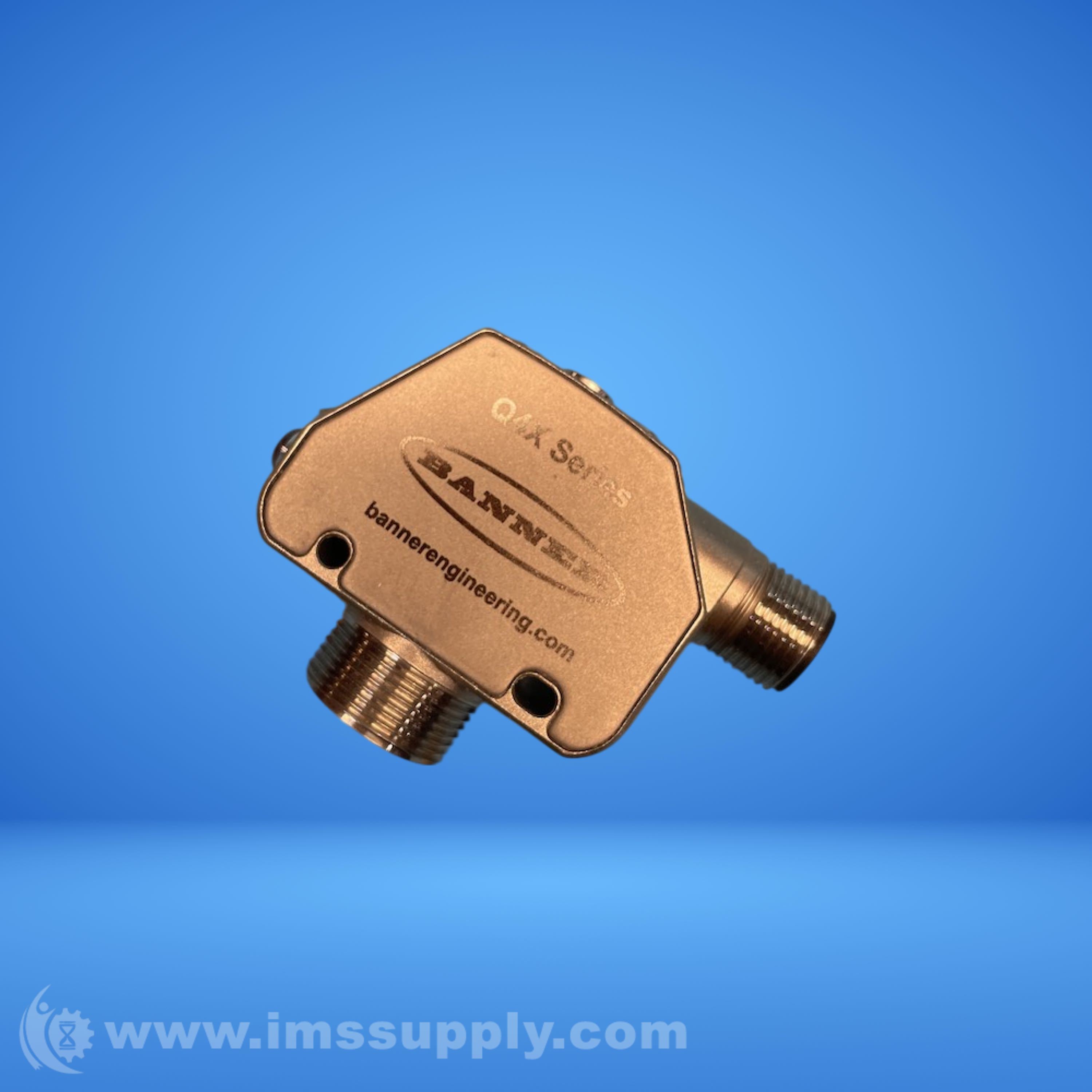

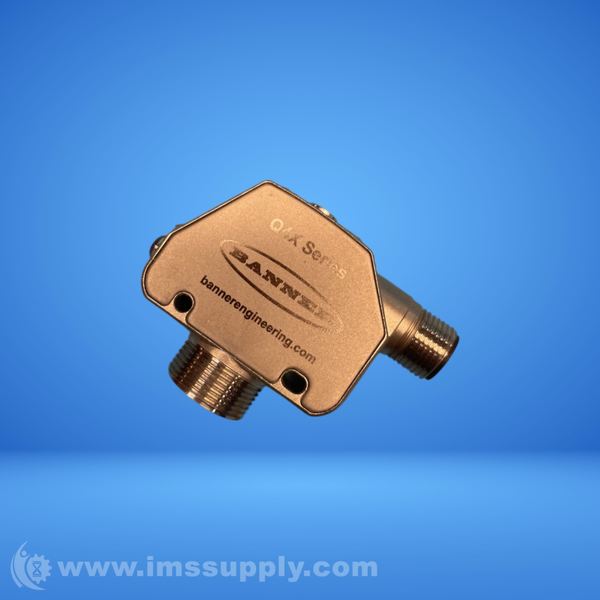

BANNER 801918 LASER DISTANCE SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: 801918
IMS Product Code: 2145829
Packaging: Sold Individually
Description:
Banner 801918 Laser Distance Sensor
Q4X Series: Laser Adjustable Field Range 600 mm; Input: 10-30 V dc Output: 1 PNP/NPN with IO-Link Communication; 1 PNP 4-pin M12 Integral QD Threaded Barrel Housing
Specifications
- Power: DC
- Sensing Beam: Visible Red Laser
- Supply Voltage: 10-30 V dc
- Sensing Mode (General): Proximity
- Sensing Mode (Detailed): Background/Foreground Suppression
- Housing Style: Rectangular w/ Threaded Mount
- Primary Housing Material: Stainless Steel
- Laser Classification: Class 1
- Connection: Integral QD
- Quick Disconnect Type: M12
- Max Sensing Distance (mm): 600
- Minimum Sensing Distance (mm): 25
- Discrete (Switched) Outputs: 1 NPN/PNP Configurable; 1 PNP
- Number of Pins: 4
- Barrel Thread: M18
- Max Operating Temperature (C): 50
- Min Operating Temperature (C): -10
- Minimum Response Time (ms): 2
- Max Ambient Light (Lux): 5000
- IP Rating: IP67, IP68, IP69K
- NEMA / UL Type Rating: NEMA 4X
- IO Link: Yes
- Laser Control: Yes
- Feature: Remote Teach: Yes
- Feature: Washdown Rated: Yes
- Feature: Clear Object Detection: Yes
- Feature: Timing (Hold/Delay): Yes
- Feature: Chemical Resistant: Yes
- Feature: Quick Disconnect: Yes
