BANNER ENGINEERING CORP. 811505 RGB FIXED-FIELD SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: 811505
IMS Product Code: 2145820
Packaging: Sold Individually
Description:

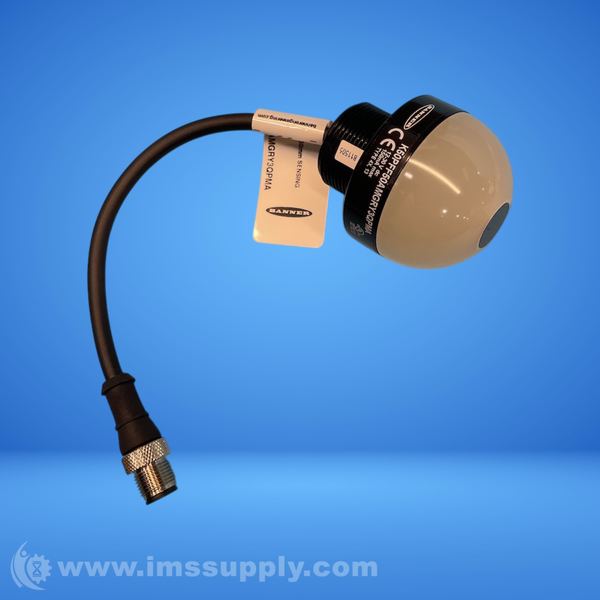

Banner Engineering Corp. 811505 RGB Fixed-Field Sensor
12-30 V dc; Polycarbonate; IP67, IP69K; Range: 50 mm; Bimodal, NO, Momentary; Colors: Multicolor; 150 mm (6 in) 5-pin M12 PUR Pigtail QD
Specifications
- Power: DC
- Cable Length (m): 0.15
- IP Rating: IP67, IP69K
- Supply Voltage: 12-30 V dc
- Sensing Mode (General): Fixed Field
- Housing Style: Dome
- Primary Housing Material: Polycarbonate
- Mounting Thread: M30 x 1.5
- Number of Colors: 14
- Color Technology: RGB Configurable
- Connection: Pigtail PUR QD
- Max Current Color (mA): 150
- Number of Input Pins/Conductors: 5
- Operation: Normally Open
- Output Type: Bipolar (NPN & PNP)
- Input Type: Bimodal (PNP/NPN)
- Maximum Sensing Distance (mm): 50
- Physical Dimensions (LxWxH or DxH mm): 50.0 x 67.3
- Number of Beams: 1
- Environmental Rating: IP67; IP69K
- Max Op. Relative Humidity Non-Condensing (%): 90% @ 50°C
- Min Op. Temperature (C): -40
- Storage Temp (C): -40 to 70
- Primary Housing Color: Black
- Button Operation: Momentary
- Primary Window Material: Polycarbonate Diffused
