BANNER 94853 LASER DIFFUSE TIME-OF-FLIGHT SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: 94853
IMS Product Code: 2132987
Packaging: Sold Individually
Description:

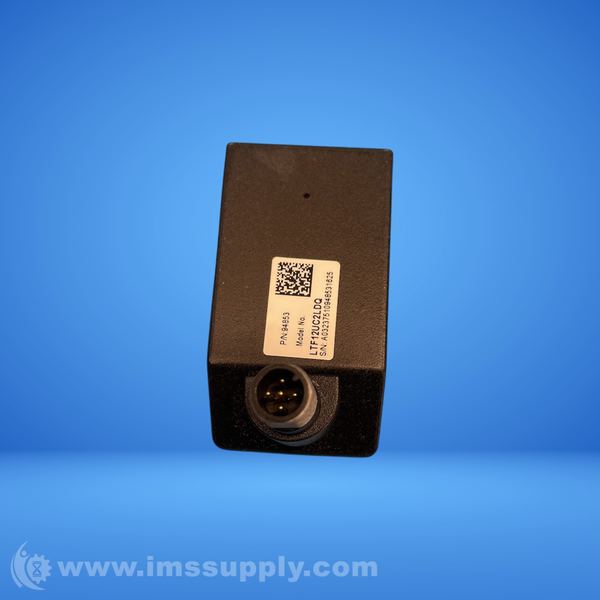

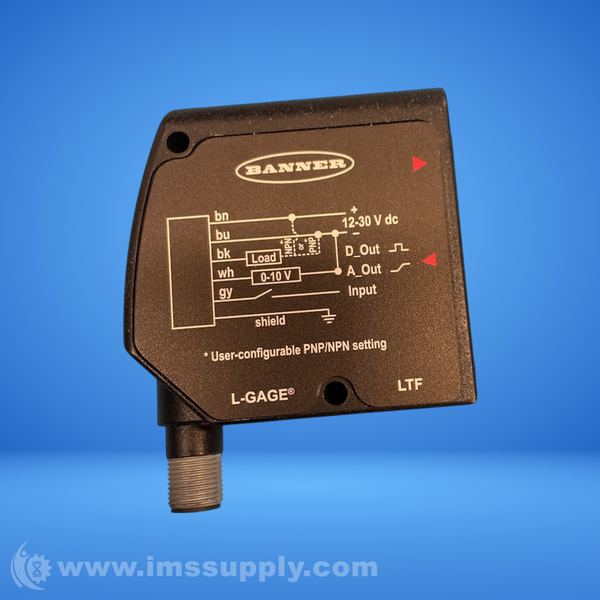

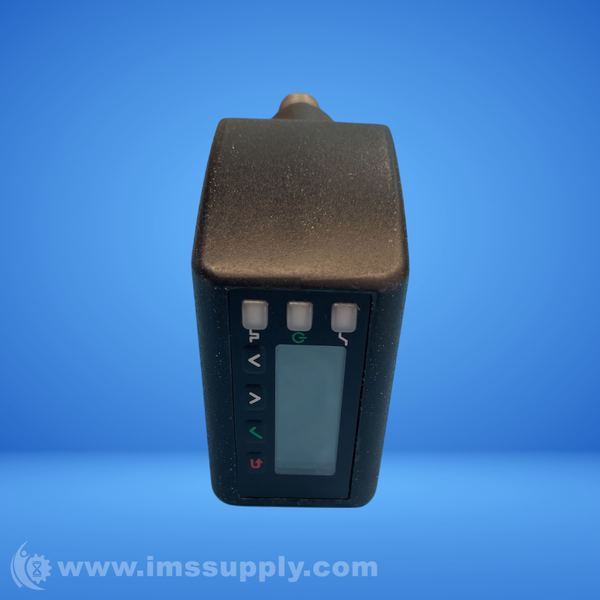

Banner 94853 Laser Diffuse Time-of-Flight Sensor
Laser diffuse time-of-flight sensor with 50-12000 mm range, 12-30 V dc input, analog 0-10 V output, Class 2 laser, NPN/PNP configurable discrete output, and M12 integral quick disconnect.
Specifications
- Supply Voltage: 12-30 V dc
- Sensing Mode (General): Proximity
- Sensing Mode (Detailed): Time of Flight
- Housing Style: Rectangular
- Primary Housing Material: Zinc Alloy Die-Cast
- Laser Classification: Class 2
- Max Sensing Distance (mm): 12000
- Minimum Sensing Distance (mm): 50
- Sensing Beam: Visible Red Laser
- Analog Output Configuration: 0-10 V dc
- Connection: Integral QD
- Quick Disconnect Type: M12
- Discrete (Switched) Outputs: 1 NPN/PNP Configurable
- Max Operating Temperature: 55 degrees C
- Min Operating Temperature: -20 degrees C
- Minimum Response Time (ms): 1.5
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Delay at Power-up (ms): 2000
- Sensing Beam Wavelength (nm): 660
- Window Material: Acrylic
- Warm-up Time (minutes): 15
- Spot Size (@ Reference Distance): 6.5 mm at 50 mm, 12.5 mm at 12000 mm
- Max Ambient Light (Lux): 40000
- Laser Control: Yes
- Feature: Remote Teach
- Feature: Timing (Hold/Delay)
- Feature: Quick Disconnect
- Feature: Health/Marginal Signal Output
