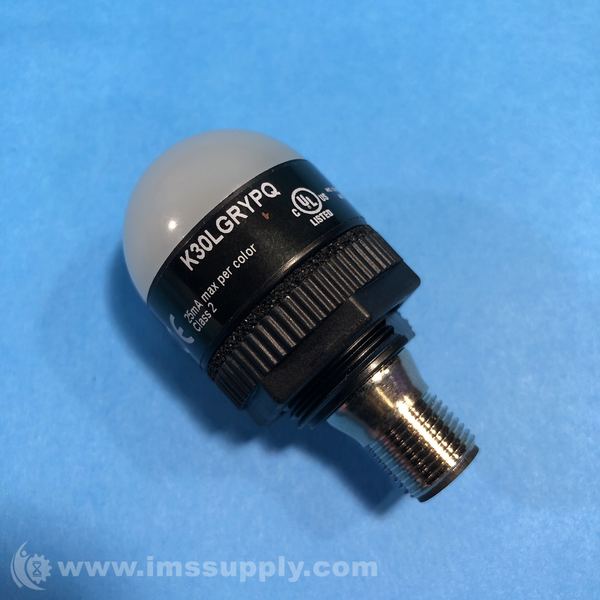

BANNER K30LGRYPQ 3-COLOR LED INDICATOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: K30LGRYPQ
IMS Product Code: 1958734
Packaging: Sold Individually
Description:
Banner K30LGRYPQ 3-Color LED Indicator
Rugged, cost-effective and easy-to-install indicator. Illuminated dome provides operator guidance and indication of equipment status. Compact device is self-contained - no controller needed. Displays up to three colors.
Specifications
- Supply Voltage: 10-30 V dc
- Housing Style: Base Mount - Dome Window
- Primary Housing Material: Polycarbonate
- Mounting Thread: M22 x 1.5
- Color Input Control: Individual (One wire/color)
- Number of Colors: 3
- Product Size: 30 mm
- Color Technology: Standard LED
- Connection: Integral QD M12
- Input Type: PNP
- Max Current Color: 25 mA
- Number of Input Pins/Conductors: 4
- IP Rating: IP67, IP69K
- Min Operating Temperature: -40 C
- Storage Temperature: -40 to 70 C
New - Missing Box (Special):
Missing nut and washer hardware
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 4 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 4 minutes.
