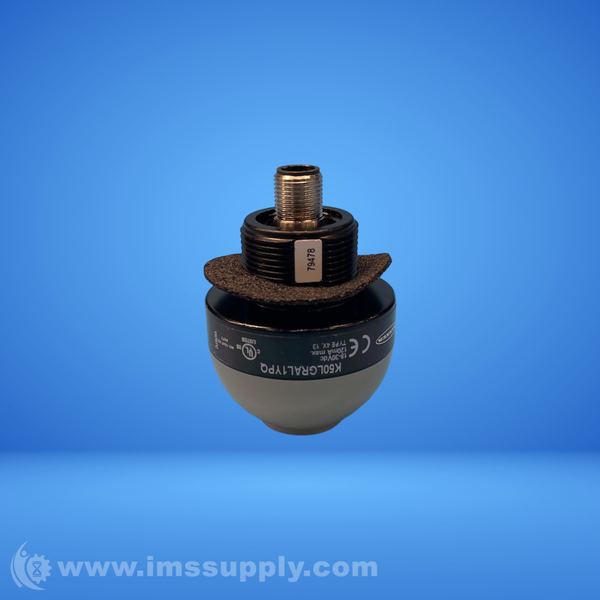

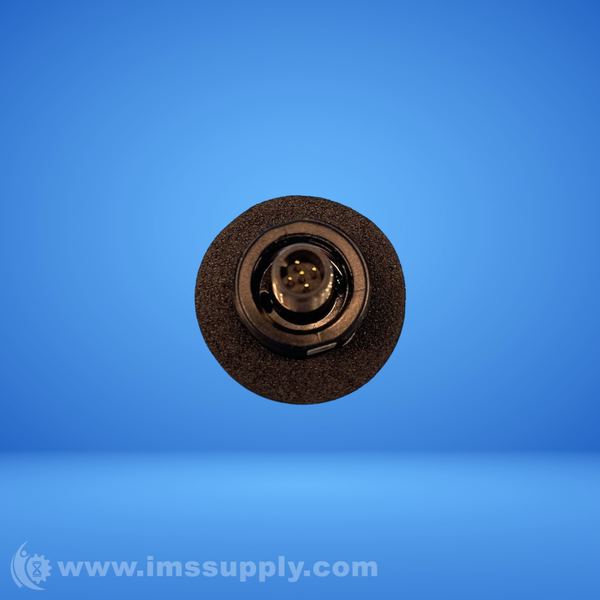

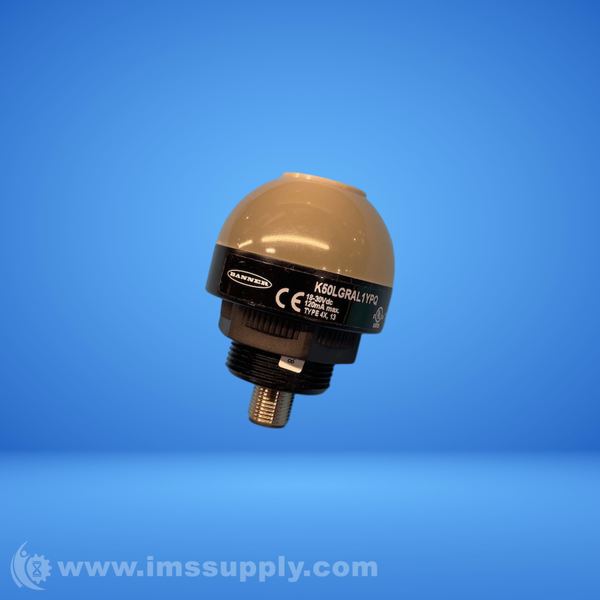

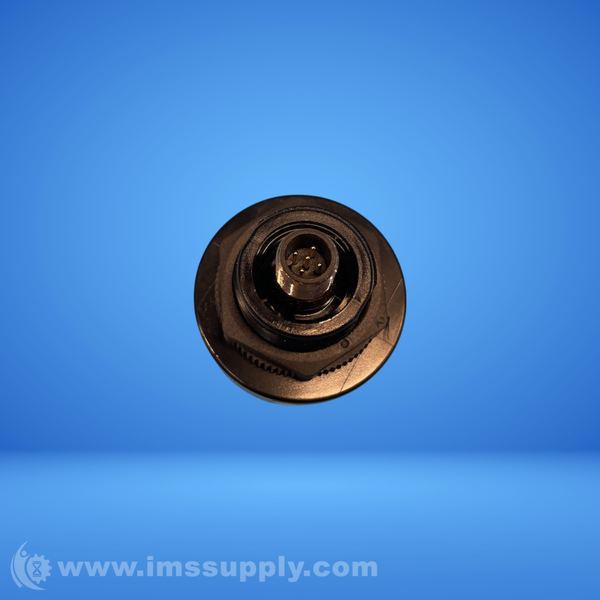

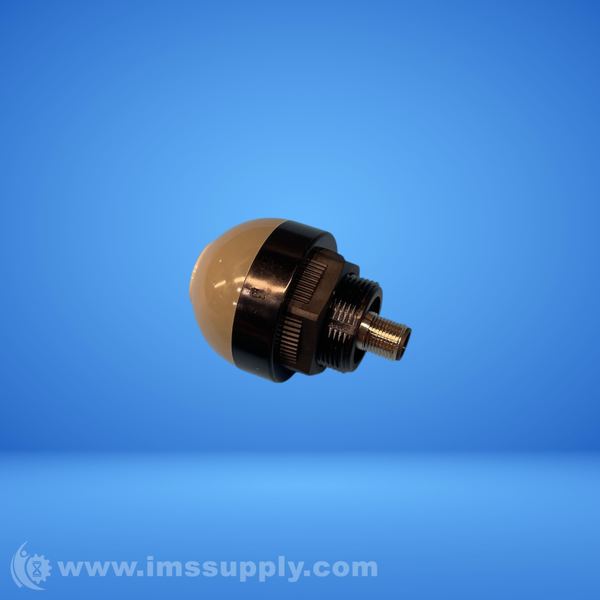

BANNER ENGINEERING K50LGRAL1YPQ 3-COLOR AUDIBLE INDICATOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: K50LGRAL1YPQ
IMS Product Code: 2049550
Packaging: Sold Individually
Description:
Banner Engineering K50LGRAL1YPQ 3-Color Audible Indicator
3-color audible indicator with PNP input, 18-30 V dc supply voltage, and M12 quick disconnect.
Specifications
- Supply Voltage: 18-30 V dc
- IP Rating: IP50
- NEMA / UL Type Rating: NEMA and UL 4X, 13
- Housing Style: Base Mount - Dome Window
- Primary Housing Material: Polycarbonate
- Mounting Thread: M30 x 1.5
- Number of Colors: 3
- Color Option 1: Green
- Color Option 2: Red
- Color Option 3: Yellow
- Connection: Integral QD
- Quick Disconnect Type: M12
- Number of Input Pins/Conductors: 5
- Input Type: PNP
- Max Current Color (mA): 40
- Max Current - Audible Alarm (mA): 40
- Audible Operating Frequency (kHz): 2.7
- Max Audible Intensity (db at 1m): 95
- Min Audible Intensity (db at 1m): 95
- Max Input Response Time (ms): 10
- Physical Dimensions (LxWxH or DxH mm): 50.0 x 68.0
- Min Op. Temperature (°C): -20
- Primary Housing Color: Black
- Primary Window Material: Polycarbonate Diffused
- Secondary Material: Polycarbonate
Used (Special):
ONE IS MISSING PLASTIC NUT ON IT
Availability: 17 In Stock
Ships today if ordered in the next 10 hours and 30 minutes.
Used (Special):
Part is missing bezel.
Availability: 2 In Stock
Ships today if ordered in the next 10 hours and 30 minutes.
