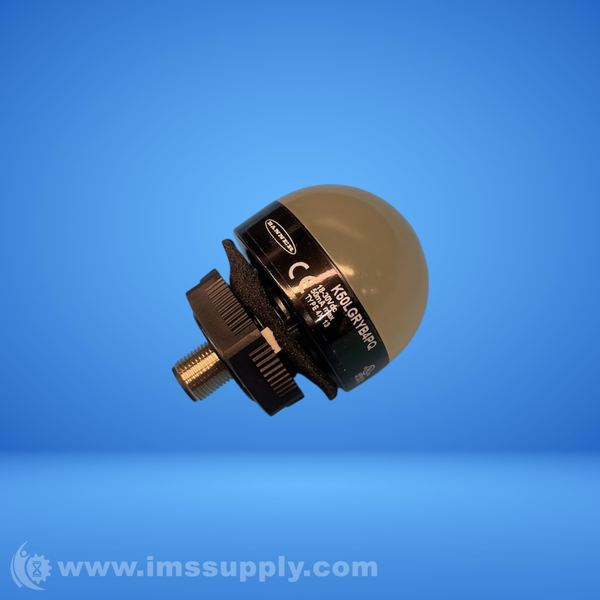

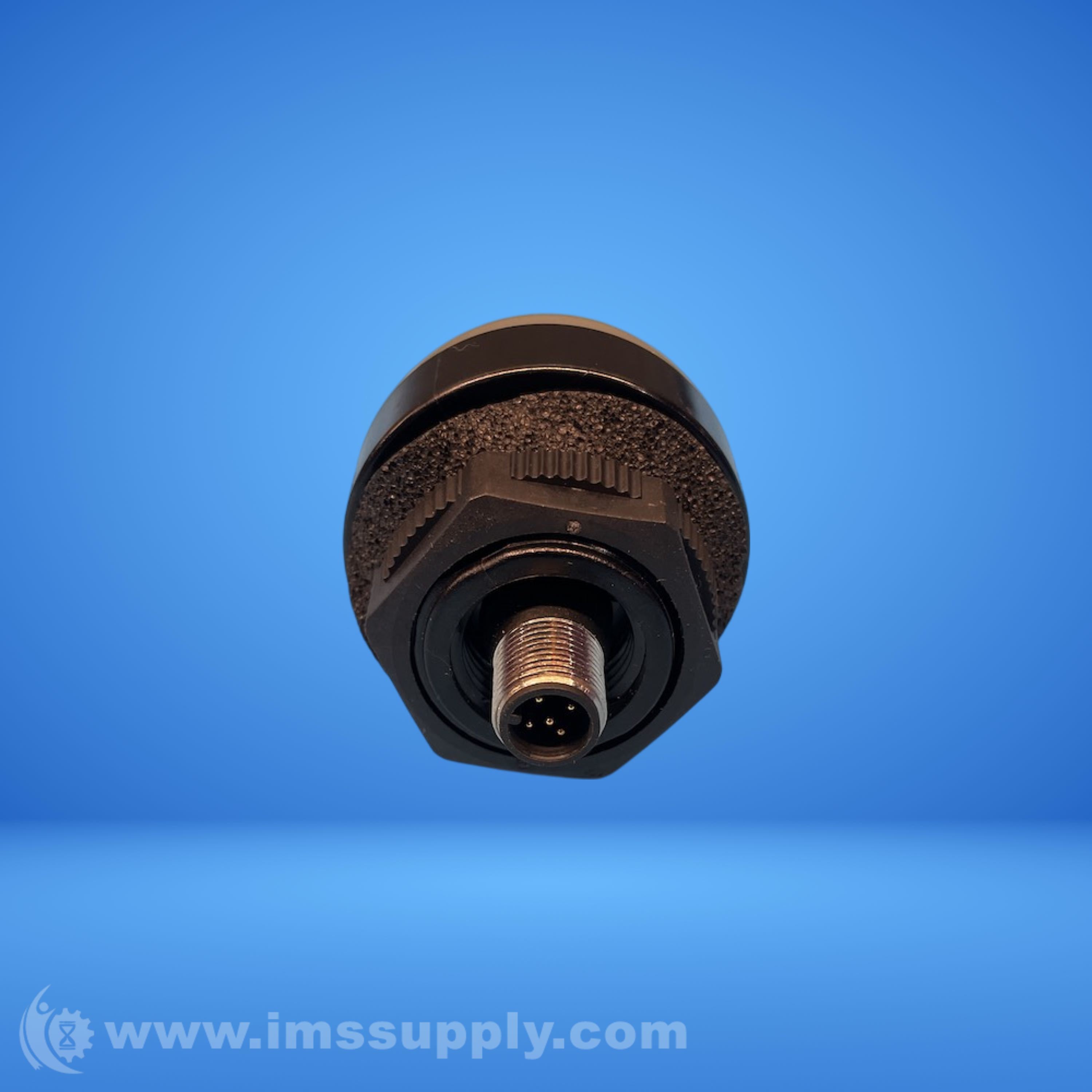

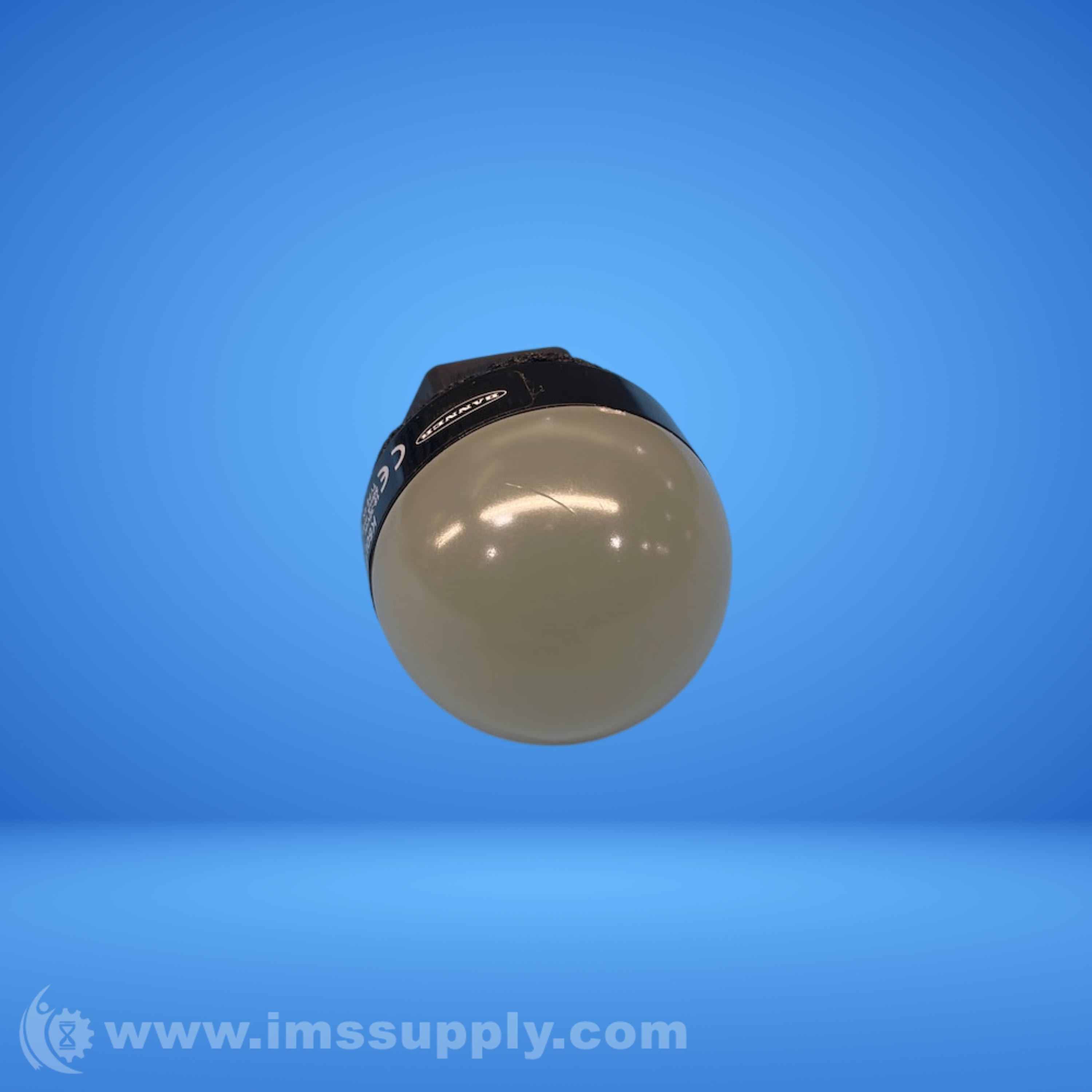

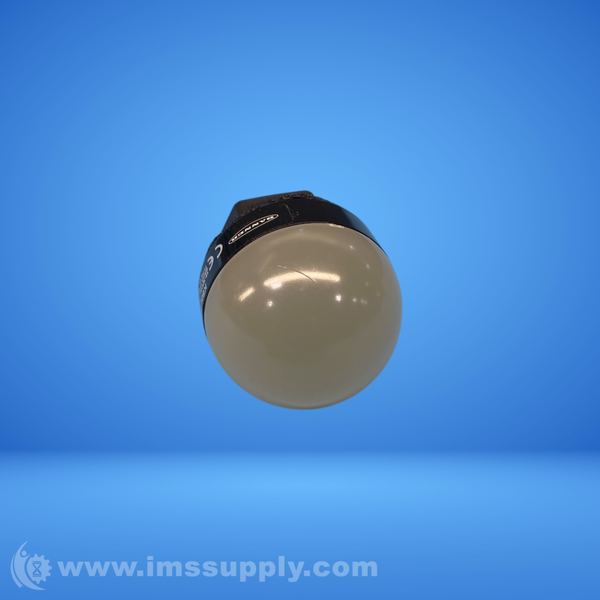

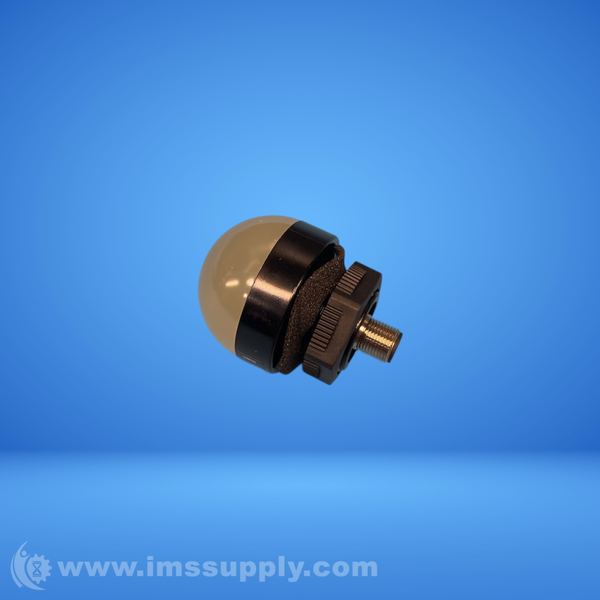

BANNER K50LGRYB4PQ 4-COLOR INDICATOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: K50LGRYB4PQ
IMS Product Code: 2128445
Packaging: Sold Individually
Description:
Banner K50LGRYB4PQ 4-Color Indicator
4-Color Multi-Function Indicator Light
Specifications
- Supply Voltage: 18-30 V dc
- Housing Style: Base Mount - Dome Window
- Primary Housing Material: Polycarbonate
- Mounting Thread: M30 x 1.5
- Color Input Control: Individual (One wire/color, same number of colors as input wires)
- Number of Colors: 4
- Product Size: 50 mm
- Color Technology: Standard LED
- Color Option 1: Green
- Color Option 2: Red
- Color Option 3: Yellow
- Color Option 4: Blue
- Connection: Integral QD
- Quick Disconnect Type: M12
- Max Current Color: 50 mA
- Wire Selectable Function: Multi-Function
- Number of Input Pins/Conductors: 5
- Input Type: PNP
- Max Input Response Time: 250 ms
- Physical Dimensions: 50.0 x 69.0 mm
- Environmental Rating: IP67; IP69K
- Min Op. Temperature: -40 degrees C
- Primary Housing Color: Black
- Primary Window Material: Polycarbonate Diffused
- Washdown Rated: Yes
- Audible: No
- Multi-Color Device: Single Color On
- Feature: Quick Disconnect: Yes
