BANNER LX6RQ RECEIVER SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: LX6RQ
IMS Product Code: 2141566
Packaging: Sold Individually
Description:

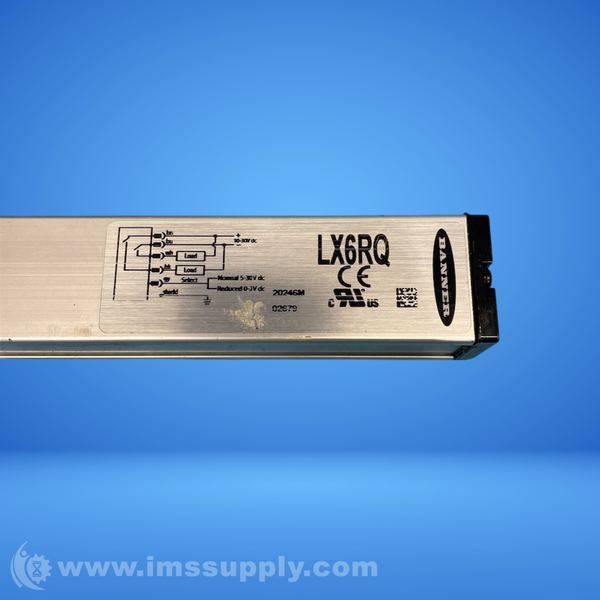

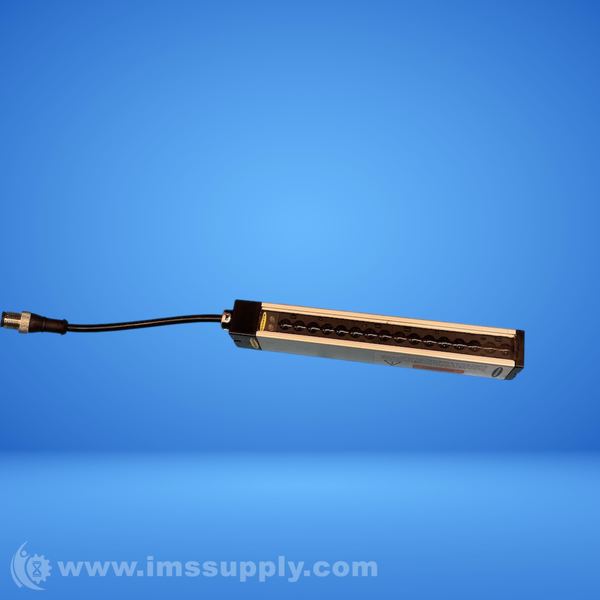

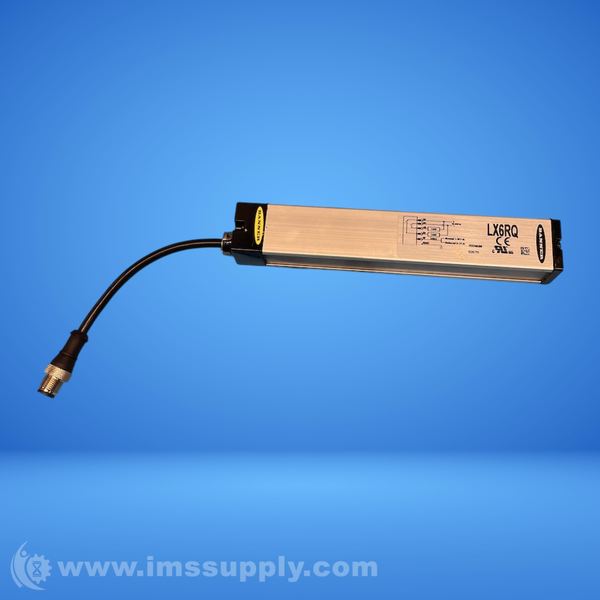

Banner LX6RQ Receiver Sensor
Receiver unit for LX Series light curtain, 143mm height, 2m range, NPN/PNP output, 10-30Vdc supply
Specifications
- Connection: Pigtail QD
- Quick Disconnect Type: M12
- Number of Pins: 5
- Power Supply/Supply Voltage: 10-30 V dc
- Outputs: Bipolar (NPN & PNP)
- Max Sensing Range (mm): 2000
- Minimum Object Detection (mm): 9.5
- Slot Depth/Array Length (mm): 143
- Primary Housing Material: Aluminum
- Lens Material: Acrylic
- IP Rating: IP65
- NEMA / UL Type Rating: NEMA 4X
- Output response time (ms): 1.6 ON/7 OFF
- Operation: Dark Operate
- Indicator: LEDs
- Max Op. Temperature (°C): 70
- Min Op. Temperature (°C): -20
- Max Op. Relative Humidity (%): 90% @ 50°C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
