BANNER ENGINEERING CORP. OTBVP6 MOMENTARY TOUCH BUTTON
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: OTBVP6
IMS Product Code: 2021108
Packaging: Sold Individually
Description:

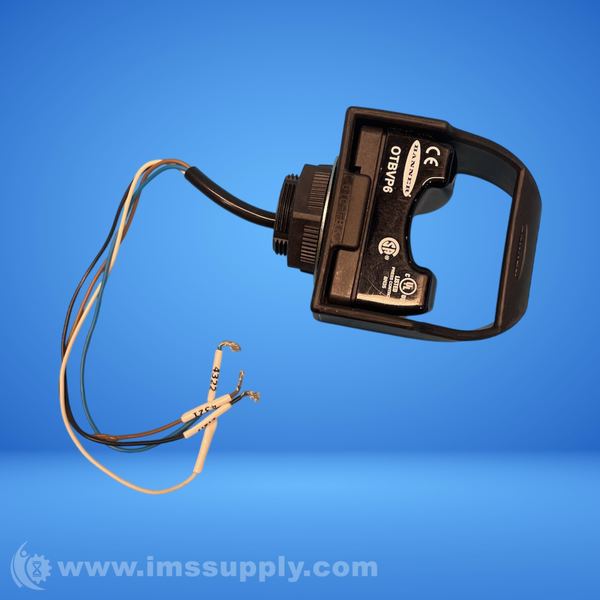

Banner Engineering Corp. OTBVP6 Momentary Touch Button
Momentary action touch button with black field cover, PNP output, 10-30 V dc input, 2 m integral cable.
Specifications
- Supply Voltage: 10-30 V dc
- Output Type: PNP
- Connection: Cable

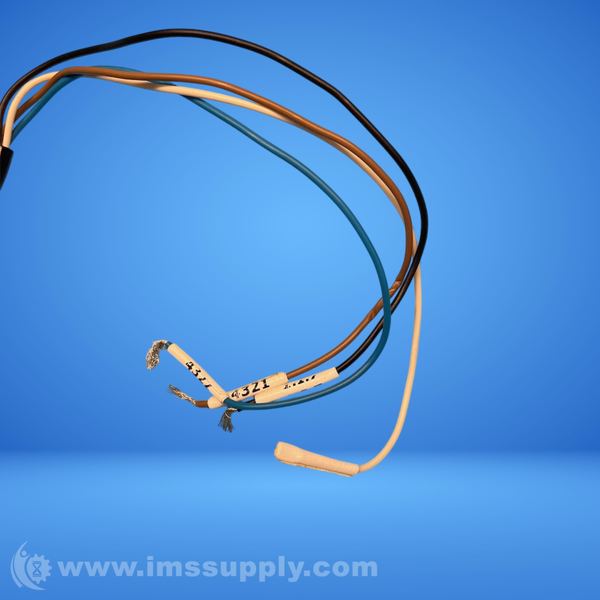

- Cable Length: 2 m
- IP Rating: IP66
- NEMA / UL Type Rating: NEMA 1, 3, 4, 4X, 12, 13
- Primary Housing Material: Thermoplastic Polysulfone
- Mounting Thread: M30 x 1.5
- Physical Dimensions: 59.9 x 43.2 x 48.0 mm
- Operation: Momentary
- Max Input Response Time: 100 ms
- Max Output Response Time: 100 ms
- Min Op. Temperature: -20 degrees C
- Max Op. Relative Humidity: 90% @ 50 degrees C
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 54 minutes.
