BANNER ENGINEERING CORP. Q12RP6RQ3 OPPOSED MODE RECEIVER
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: Q12RP6RQ3
IMS Product Code: 2049079
Packaging: Sold Individually
Description:

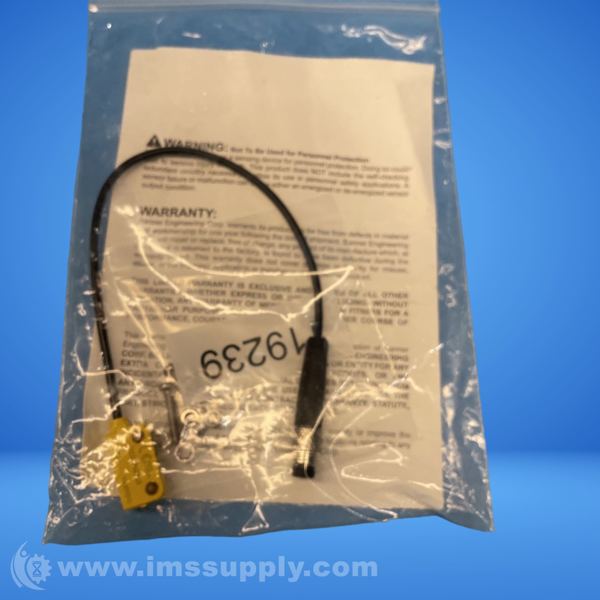

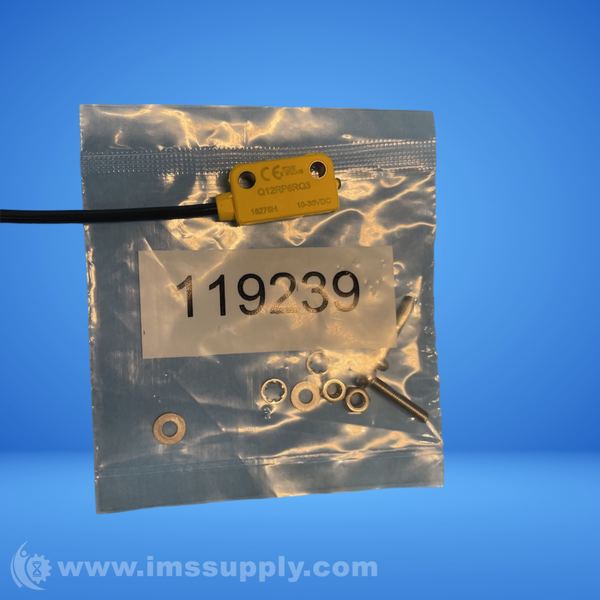

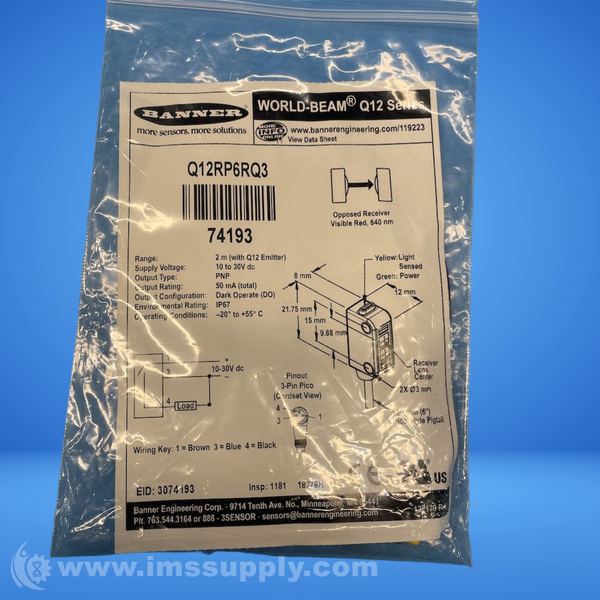

Banner Engineering Corp. Q12RP6RQ3 Opposed Mode Receiver
Opposed mode receiver with 2m sensing distance, 10-30V DC supply, PNP output, and M8 pigtail quick disconnect.
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Mode: Opposed
- Output Type: PNP
- Connection: Pigtail QD
- Quick Disconnect Type: M8
- Max Sensing Distance: 2000 mm
- Min Operating Temperature: -20 degrees C
- Max Operating Temperature: 55 degrees C
- IP Rating: IP67
- Housing Material: Thermoplastic
- Lens Material: Polycarbonate
- Output Response Time: 1.3 ON/0.9 OFF ms
