BANNER QS18VP6WQ8 DIVERGENT DIFFUSE PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: QS18VP6WQ8
IMS Product Code: 315269
Packaging: Sold Individually
Description:

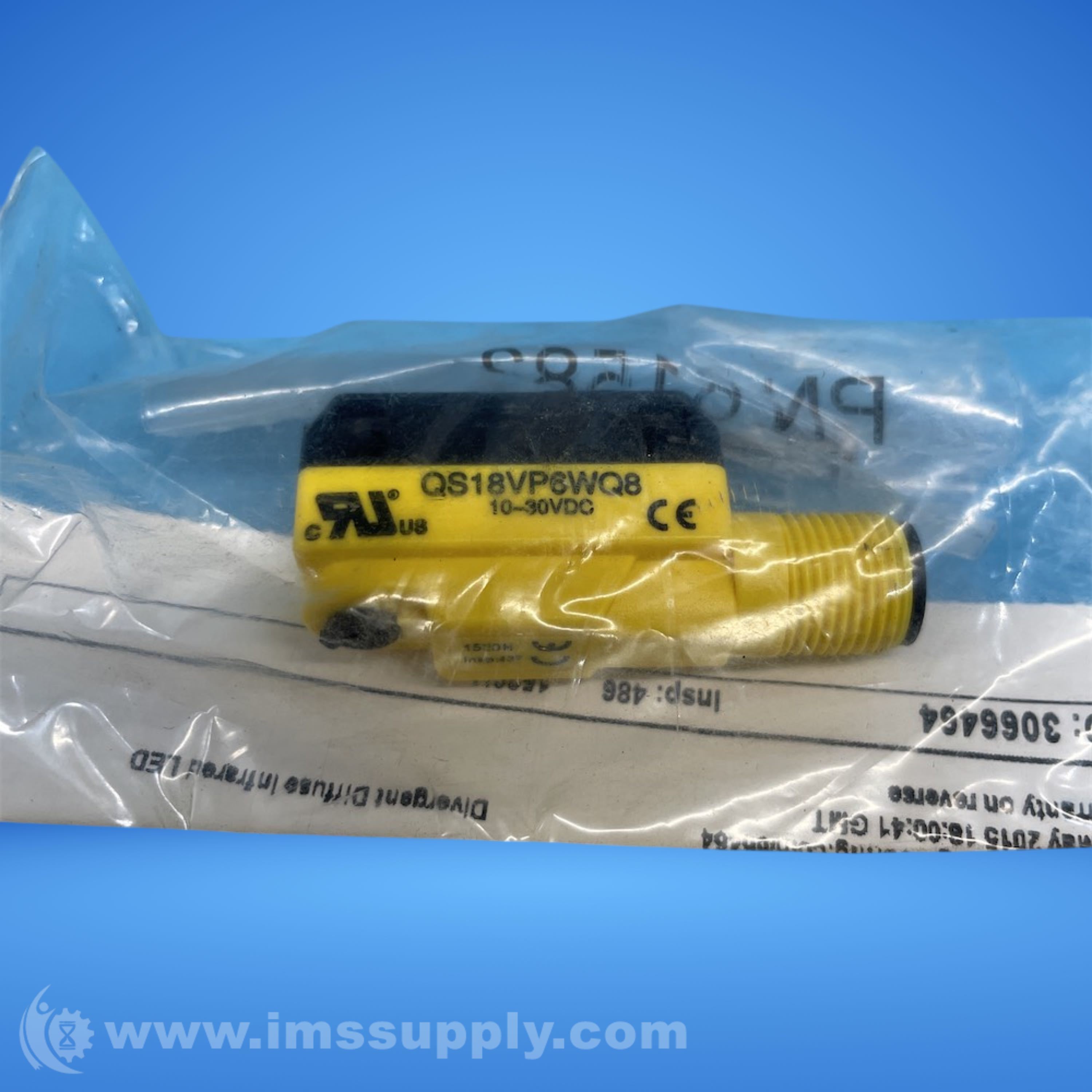

Banner QS18VP6WQ8 Divergent Diffuse Photoelectric Sensor
Divergent diffuse photoelectric sensor with 100mm sensing range, 10-30V DC input, PNP output, and M12 integral quick disconnect.
Specifications
- Supply Voltage: 10-30 V dc
- Sensing Mode: Divergent
- Max Sensing Distance: 100 mm
- Output: PNP
- Connection: Integral QD
- Quick Disconnect Type: M12
- Operation: Light/Dark Operate
- IP Rating: IP67
- NEMA / UL Type Rating: NEMA 4X
- Housing Style: Rectangular
- Primary Housing Material: ABS
- Lens Material: Acrylic
- Min Op. Temp.: -20 degrees C
- Max Op. Temp.: 70 degrees C
- Output response time: 0.6 ms
- Delay at Power-up: 100 ms
- Repeatability: 150 µs
- Number of Pins: 4
- Max Op. Relative Humidity: 95% @ 50°C

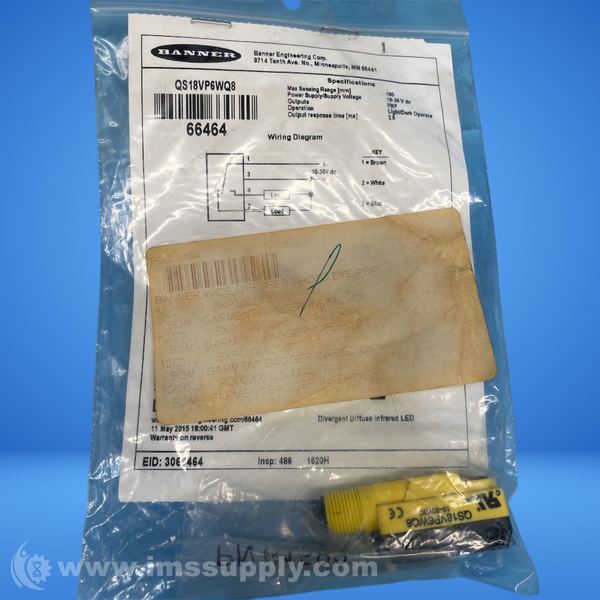

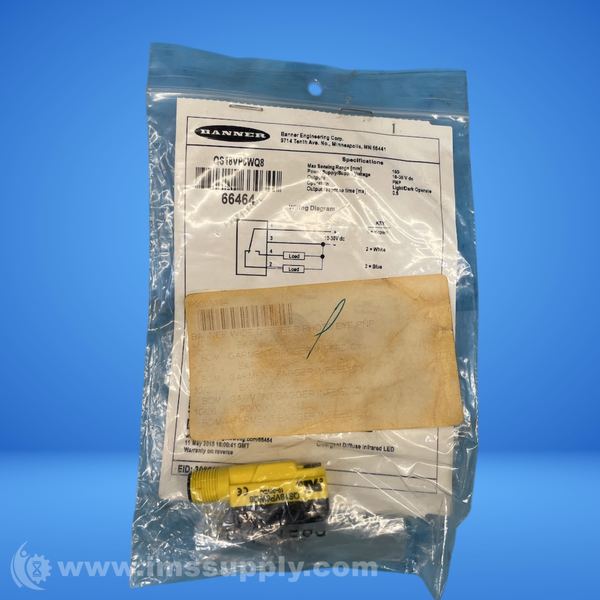

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
