BANNER ENGINEERING CORP. SLSR30-1500Q8 EZ-SCREEN RECEIVER
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: SLSR30-1500Q8
IMS Product Code: 2151519
Packaging: Sold Individually
Description:

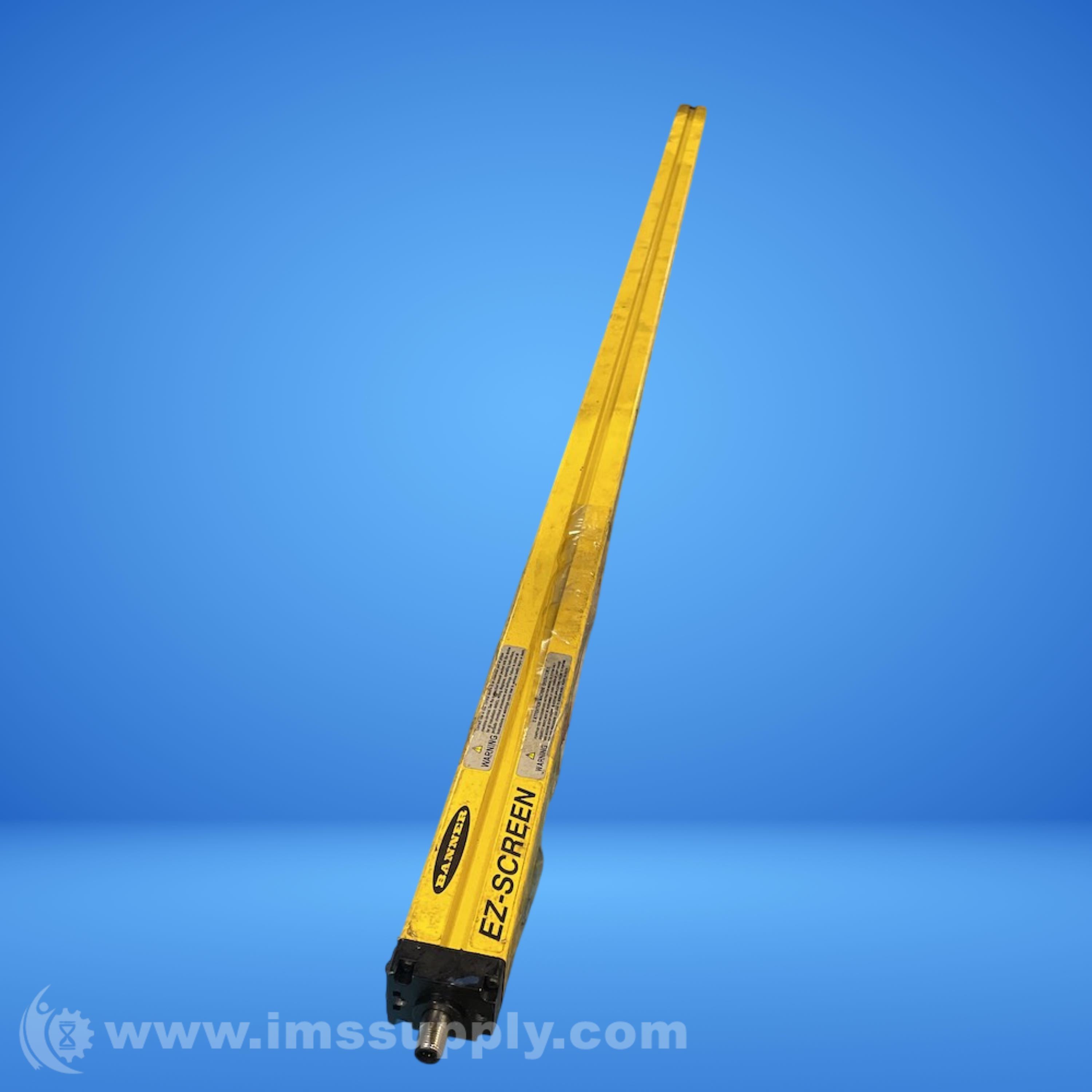

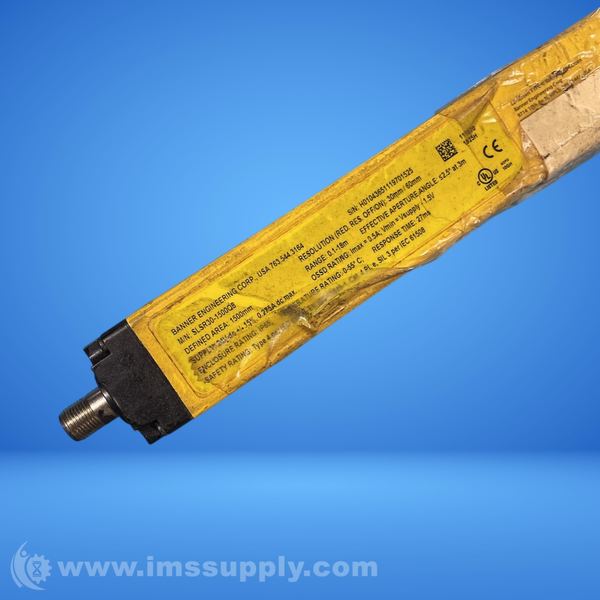

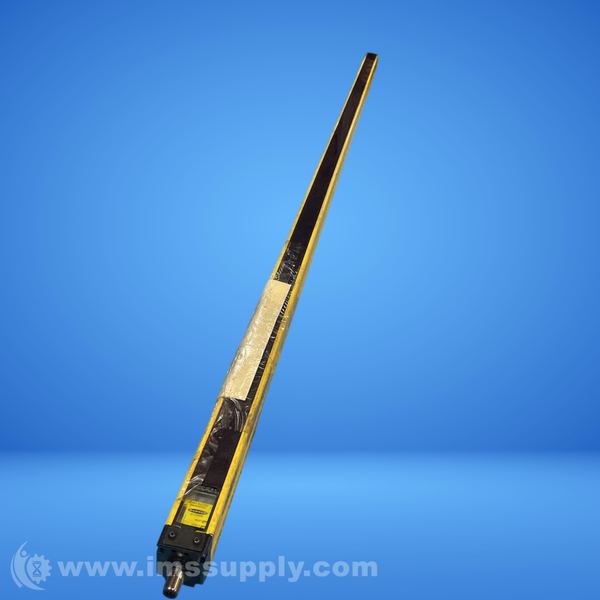

Banner Engineering Corp. SLSR30-1500Q8 EZ-SCREEN Receiver
Safety Light Curtain Receiver with 30mm Resolution, 0.1-18m Range, 1500mm Defined Area Height, 8-pin M12 Connector
Specifications
- Resolution: 30 mm
- Range: 18 m (60 ft)
- Defined Area: 1500 mm (59.1 in)
- Housing Length: 1569 mm (61.8 in)
- Connection: 8-pin M12 Connector
- Supply Voltage: 24 V dc
- Safety Level: Type 4
- Effective Aperture Angle: Type 4 Per IEC 61496-2
- Connector Type: M12
- Dimensions WxD (mm): 36 x 45.2
- Overall Length (mm): 1569
- Operating Temperature: 0 to +55 deg. C; RH 95%
- PL Rating: Ple
- Response Time: 27 ms
- SIL Rating: SIL3; CL3
- Electrical Safety Class: III
- OSSD Rating: 24 V dc at 0.5 A each
- Supply Current: 275 mA max.
- System Type: Receiver
- Trip/Latch Output: Selectable
- Housing Material: Aluminum
- IP Rating: IP65
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
