BANNER ENGINEERING CORP. SLSR30-450Q8 SAFETY LIGHT CURTAIN RECEIVER
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: SLSR30-450Q8
IMS Product Code: 1809427
Packaging: Sold Individually
Description:

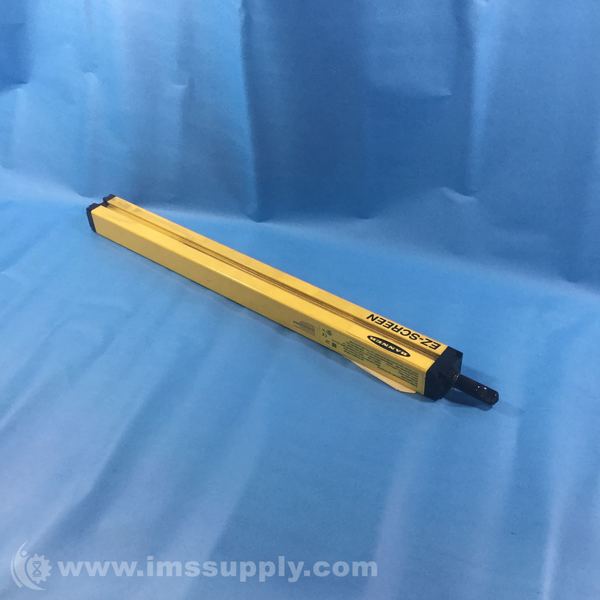

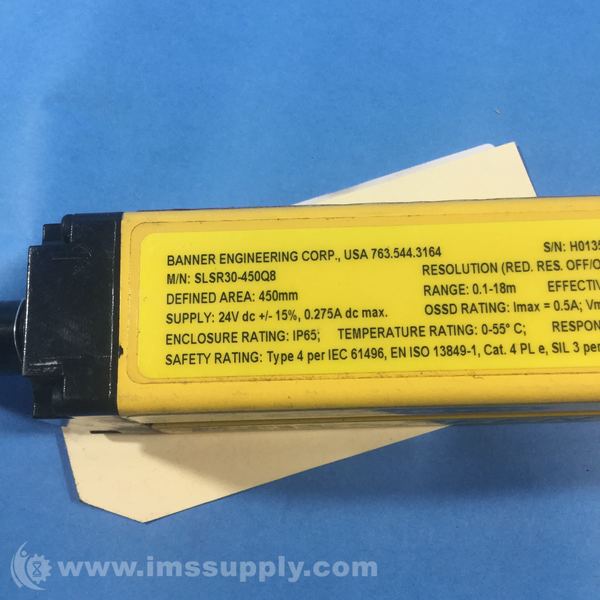

Banner Engineering Corp. SLSR30-450Q8 Safety Light Curtain Receiver
Type 4 safety light curtain receiver with 450mm protected height and 30mm resolution. Operates at 24V DC with PNP output and M12 connector.
Specifications
- Defined Area Height: 450 mm
- Dimensions WxD: 36 x 45.2 mm
- Overall Length: 522 mm
- IP Rating: IP65
- Supply Voltage: 24 V dc
- Primary Housing Material: Aluminum
- Safety Level: Type 4
- Effective Aperture Angle: Type 4 Per IEC 61496-2
- Connector Type: M12
- Number of Pins: 8
- Operating Distance: 0.1 - 18 m
- Operating Temperature: 0 to 55 degrees C
- PL Rating: Ple
- Resolution: 30 mm
- SIL Rating: SIL3; CL3
- Electrical Safety Class: III
- Scan Code: Selectable
- Short Protection: Yes
- System Type: Receiver
- Vibration: 10-55 Hz at 0.35 mm
- Auxiliary Output: Yes
- Fault Output: No
- Housing Material: Aluminum; Zinc; Acrylic
- OSSD Rating: 24 V dc at 0.5 A each
- Supply Current: 275 mA max.
- Trip/Latch Output: Selectable
- Test Input: No
Used (Special):
has plastic back cover.
