BANNER LEDIA70XD5-XM IR AREA LIGHT
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: LEDIA70XD5-XM
IMS Product Code: 1752774
Packaging: Sold Individually
Description:

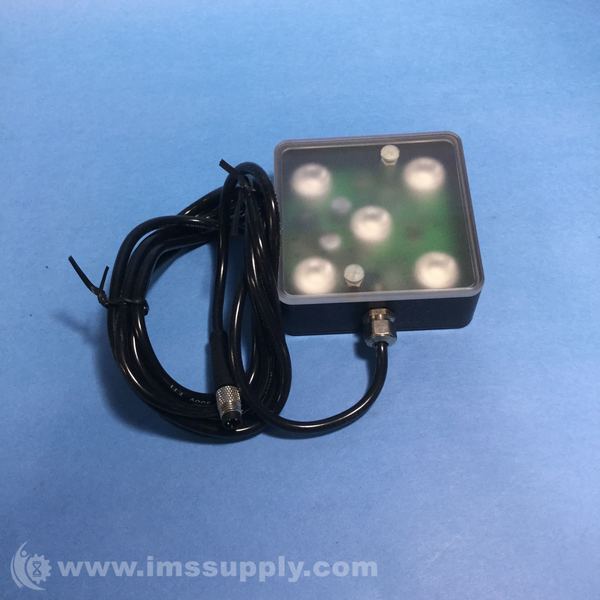

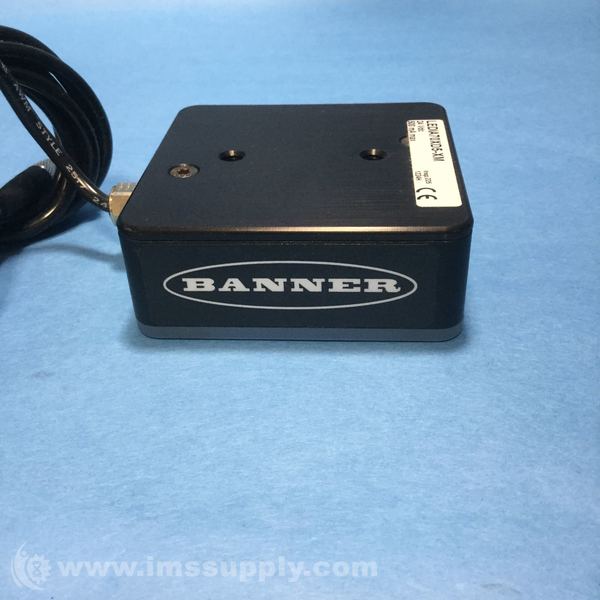

Banner LEDIA70XD5-XM IR Area Light
Infrared area light with 5 high-intensity LEDs, 24V DC supply, low-carbon steel housing, and diffused acrylic window. Rectangular shape, 76.2 x 76.2 x 29.2 mm dimensions, IP50 rating, and 2m M8 pigtail connection.
Specifications
- Supply Voltage: 24 V DC
- Max Current: 500 mA
- Device Type: Area Light
- Color: Infrared
- Primary Housing Material: Low-Carbon Steel
- Window Material: Diffuse Acrylic
- Connection Type: Pigtail QD

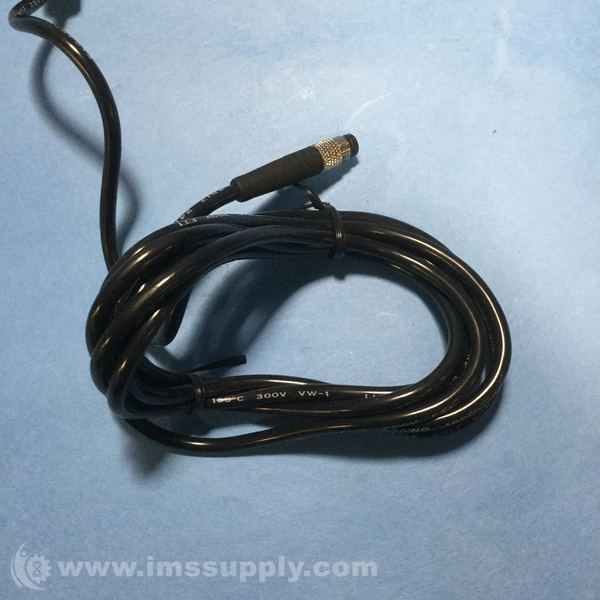

- QD Type/Cable Length: 2 m; M8
- Number of Input Pins/Conductors: 3
- Physical Dimensions: 76.2 x 76.2 x 29.2 mm
- Operating Temperature: -20°C to 50°C
- IP Rating: IP50
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, October 27, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, October 27, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
