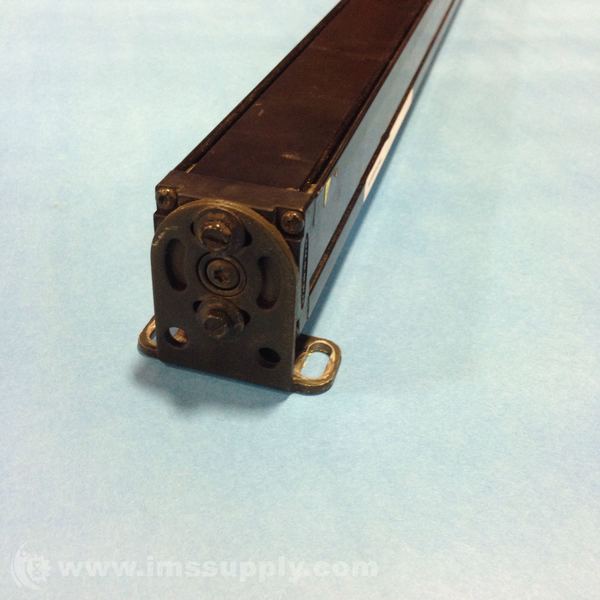

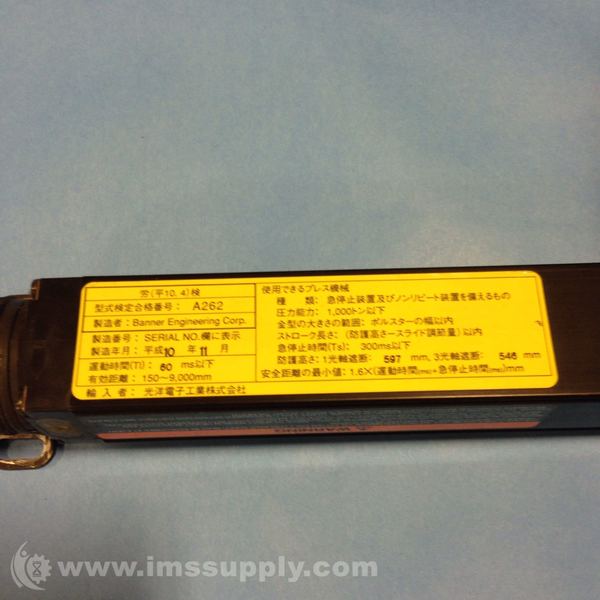

BANNER MSE2424 SAFETY LIGHT CURTAIN EMITTER
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: MSE2424
IMS Product Code: 1749904
Packaging: Sold Individually
Description:
Banner MSE2424 Safety Light Curtain Emitter
Banner MSE2424 Mini-Screen safety light curtain emitter with defined area of 610 mm (24 in) and range of 9 m (30 ft). Features integral quick-disconnect and IP65 enclosure rating.
Specifications
- Defined Area: 610 mm (24 in)
- Range: 9 m (30 ft)
- Minimum Object Sensitivity: 0.75 inch (19mm)
- Enclosure Rating: UL/CSA Type 4,13, IP65
- Weight: 1.41 kgs
- Movement Time (T1): 60 ms or less
- Emergency Stop Time (Ts): 300 ms or less
- Effective Range: 150 to 9,000 mm
