BANNER OTBVR81L OPTICAL TOUCH BUTTON
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: OTBVR81L
IMS Product Code: 1750757
Packaging: Sold Individually
Description:

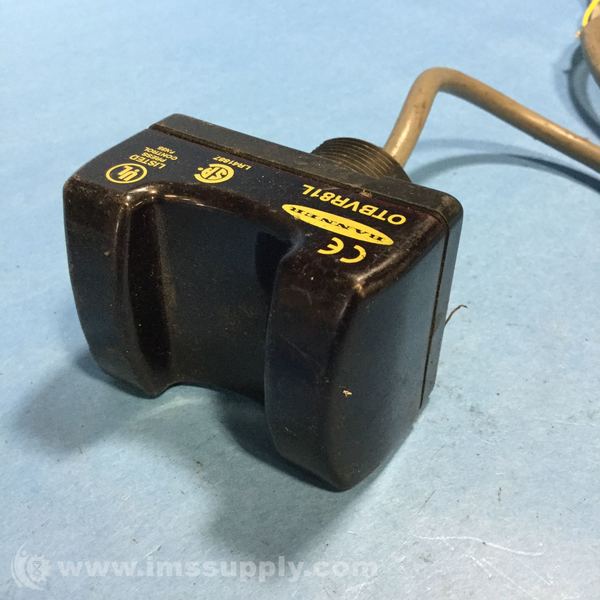

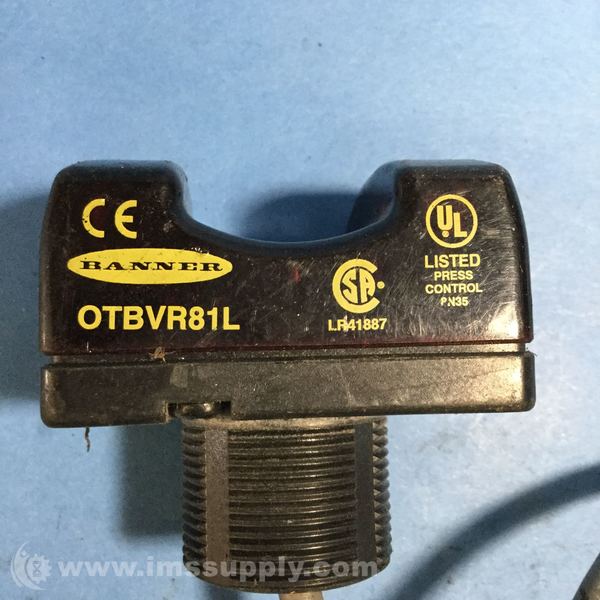

Banner OTBVR81L Optical Touch Button

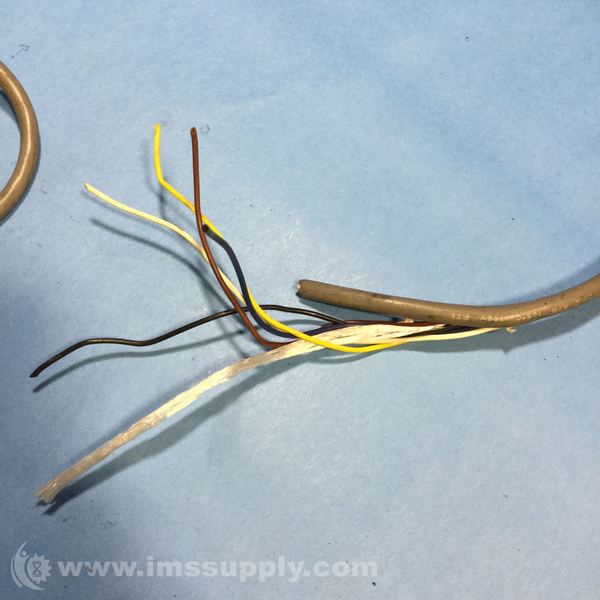

Momentary action optical touch button with black field cover, 20-30 V ac/dc input, SPDT electromechanical relay output, 2m integral cable
Specifications
- Power: DC or AC
- Cable Length: 2 m
- IP Rating: IP66
- NEMA / UL Type Rating: NEMA 1, 3, 4, 4X, 12, 13
- Supply Voltage: 20-30 V ac/dc
- Sensing Mode: Single Point Optical
- Housing Style: Base Mount - Saddle
- Primary Housing Material: Polycarbonate
- Mounting Thread: M30 x 1.5
- Connection: Cable
- Number of Input Pins/Conductors: 5
- Operation: Normally Open/Normally Closed
- Output Type: SPDT e/m Relay
- Max Input Response Time: 100 ms
- Max Output Response Time: 100 ms
- Physical Dimensions: 59.9 x 43.2 x 48.0 mm
- Environmental Rating: IP66
- Max Op. Relative Humidity: 90% @ 50°C
- Min Op. Temperature: -20°C
- Max Op. Temperature: 50°C
- Field Cover Color: Black
- Primary Housing Color: Red
- Button Operation: Momentary
- Secondary Material: Thermoplastic
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 2 hours and 23 minutes.
Used (Special):
Has an additional cord and a Banner handle attached to the main part.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 23 minutes.
