BANNER SLSE14-450Q8 EZ-SCREEN EMITTER
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: SLSE14-450Q8
IMS Product Code: 1749948
Packaging: Sold Individually
Description:

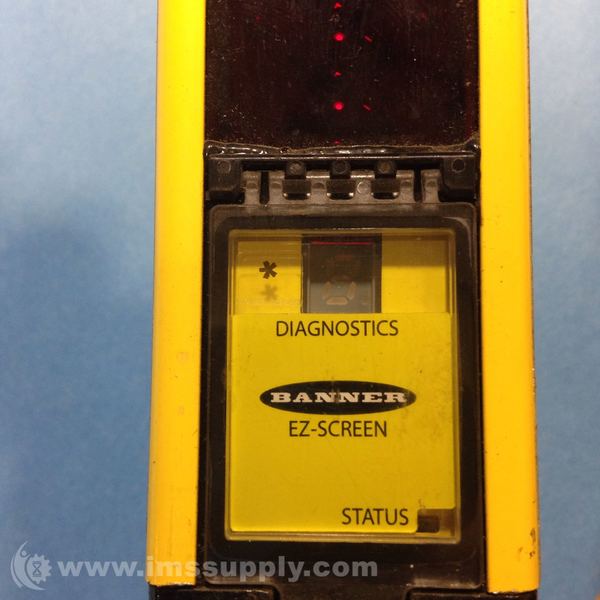

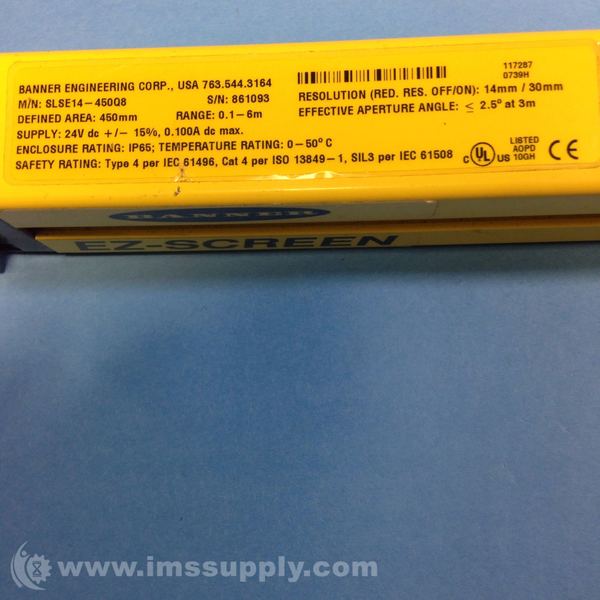

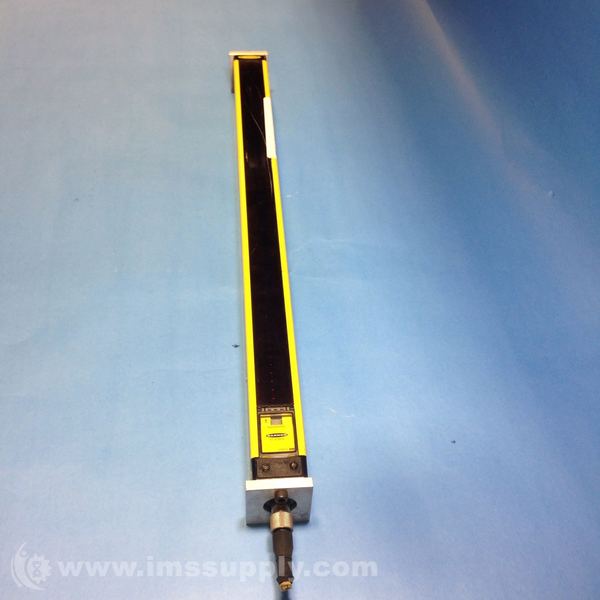

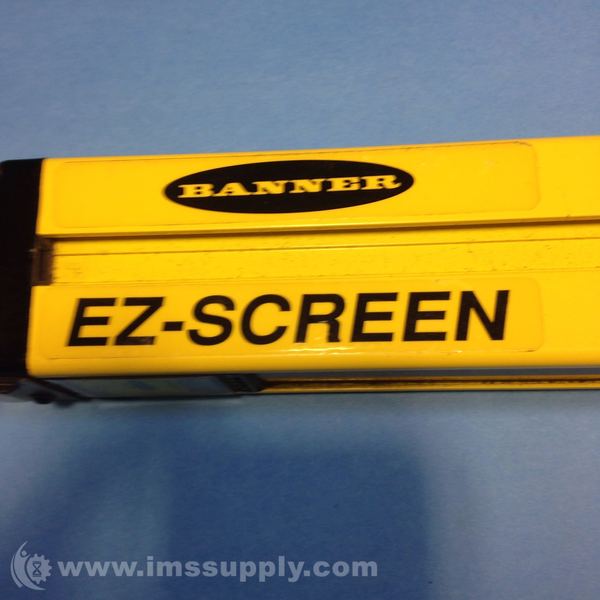

Banner SLSE14-450Q8 EZ-SCREEN Emitter
Safety Light Curtain Emitter with 14 mm resolution and 450 mm defined area height
Specifications
- Resolution: 14 mm
- Range: 6 m (20 ft)
- Defined Area: 450 mm (17.7 in)
- Housing Length: 522 mm (20.6 in)

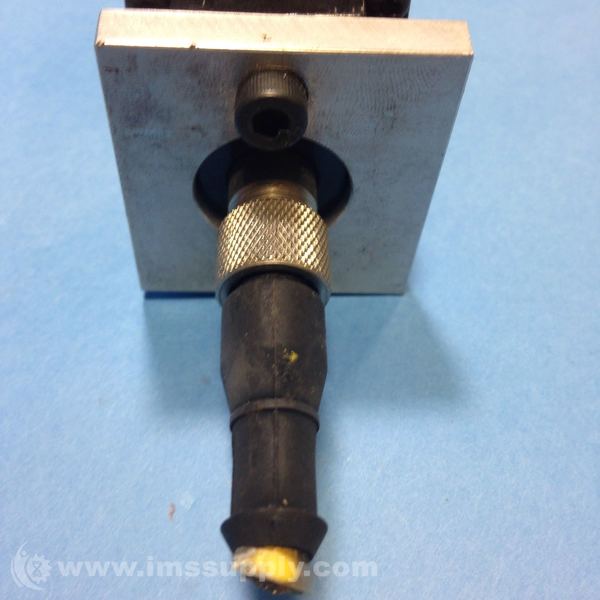

- Connection: 8-pin M12 Connector
- IP Rating: IP65
- Supply Voltage: 24 V dc
- Primary Housing Material: Aluminum
- Safety Level: Type 4
- Effective Aperture Angle: Type 4 Per IEC 61496-2
- Operating Temperature: 0 to +55 deg. C; RH 95%
- PL Rating: Ple
- SIL Rating: SIL3; CL3
- Electrical Safety Class: III
- System Type: Emitter
- Supply Current: 100 mA max.
- Dimensions WxD (mm): 36 x 45.2
- Overall Length (mm): 522
- Defined Area Height (mm): 450
