BANNER SLSE14-900Q8 SAFETY LIGHT CURTAIN EMITTER
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: SLSE14-900Q8
IMS Product Code: 1757996
Packaging: Sold Individually
Description:

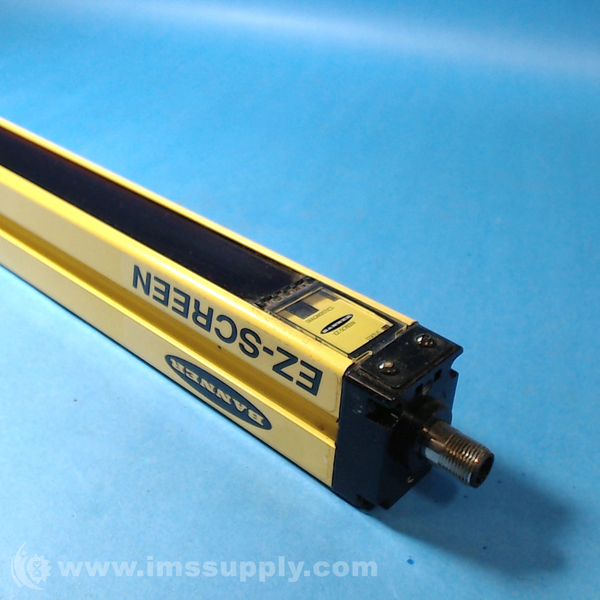

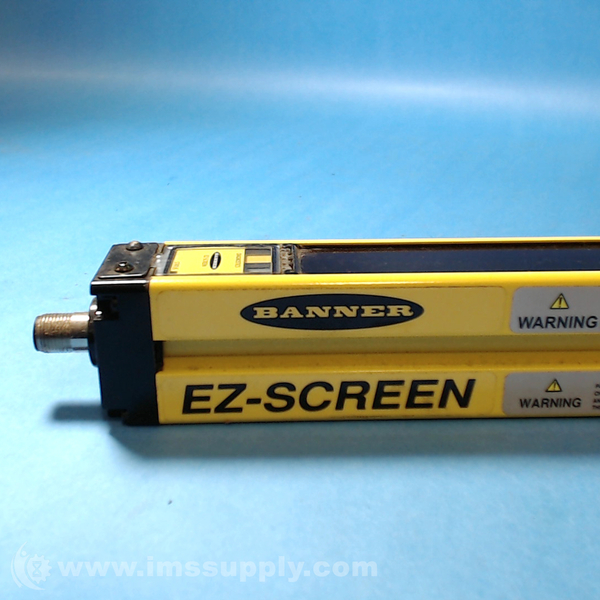

Banner SLSE14-900Q8 Safety Light Curtain Emitter
Safety light curtain emitter with 14 mm resolution, 900 mm defined area height, and 0.1-6 m operating range. Features 8-pin M12 connector, aluminum housing, and IP65 rating. Operates at 24 V DC with 100 mA max supply current. Response time is 32 ms. Designed for industrial safety applications.
Specifications
- Resolution: 14 mm
- Defined Area Height: 900 mm
- Operating Range: 0.1-6 m
- Supply Voltage: 24 V dc
- Connector Type: M12
- Number of Pins: 8
- Housing Material: Aluminum
- Housing Finish: Black Polyester
- IP Rating: IP65
- Operating Temperature: 0 to +55 degrees C
- Safety Level: Type 4
- Response Time: 32 ms
- Supply Current: 100 mA max.
- System Type: Emitter
- Effective Aperture Angle: Type 4 Per IEC 61496-2
- Overall Length: 971 mm
- Dimensions WxD: 36 x 45.2 mm
- PL Rating: Ple
- SIL Rating: SIL3; CL3
- Electrical Safety Class: III
- Scan Code: Selectable
