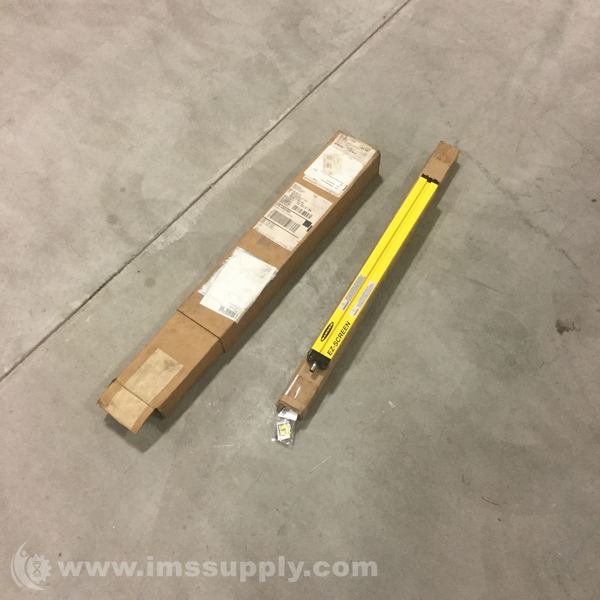

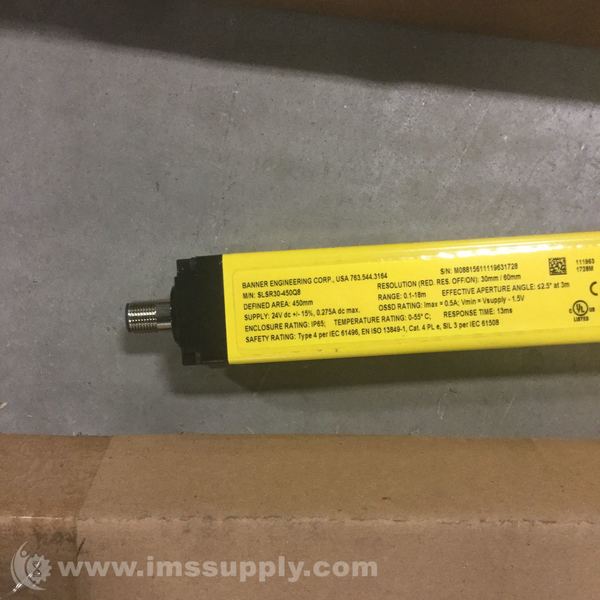

BANNER SLSR30-450Q8 LIGHT CURTAIN RECEIVER, EZ-SCREEN
Quick Overview
Manufactured By: BANNER
Manufacturer Part Number: SLSR30-450Q8
IMS Product Code: 1809516
Packaging: Sold Individually
Description:
Banner SLSR30-450Q8 Light Curtain Receiver, EZ-Screen
Specifications:
- Primary Housing Material: Aluminum
- Safety Level: Type 4
- Effective Aperture Angle: Type 4 Per IEC 61496-2
- Connector Type: M12
- Defined Area Height (mm): 450
- Dimensions WxD (mm): 36 x 45.2
- Overall Length (mm): 522
- External Monitoring Device: 1 or 2 Channel
- Fixed Blanking: Yes
- Housing Finish: Yellow Polyester
- IP Rating: IP65
- Number of Pins (Receiver/Emitter): 8
- Operating Distance (m): 0.1 - 18
- Operating Voltage: 24 V dc +/- 15%
- Operating Temperature: 0 to +55 deg. C; RH 95%
- PL Rating: Ple
- Recovery Time: 25-152 / 81-49
- Resolution (mm): 30
- Reduced Resolution: Yes
- Response Time: 13
- SIL Rating: SIL3; CL3
- Electrical Safety Class: III
- Scan Code: Selectable
- Shock: 10g at 16ms (6000 cycles)
- Short Protection: Yes
- System Type: Receiver
- Vibration: 10-55 Hz at 0.35 mm
- Auxiliary Output: Yes
- Fault Output: No
- Housing Material: Aluminum; Zinc; Acrylic
- OSSD Rating: 24 V dc at 0.5 A each
- Supply Current: 275 mA max.
- Trip/Latch Output: Selectable
- Test Input: No
- Feature: End-to-End Sensing: No
