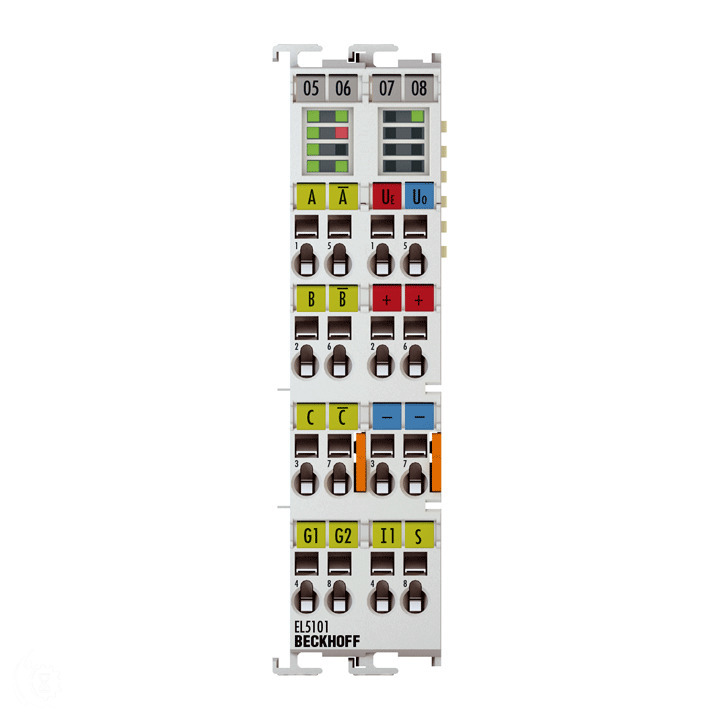

BECKHOFF EL 5101 INCREMENTAL ENCODER INTERFACE, ETHERCAT TERMINAL

Starting At: $373.43

Quick Overview

Manufactured By: BECKHOFF
Manufacturer Part Number: EL 5101
IMS Product Code: 1740059
Packaging: Sold Individually

Description:

Beckhoff EL 5101 Incremental Encoder Interface, EtherCAT Terminal, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz

The EL5101 EtherCAT Terminal is an interface for the direct connection of incremental encoders with differential signals (RS422) or TTL single ended signals. Input frequencies up to 1 MHz can be evaluated. Two additional 24 V digital inputs are available for storing, blocking and setting the counter status. The error message output of an encoder can be connected and evaluated via the status input. The 5 V and 24 V supply of the encoder can be provided directly via the terminal connection points.

Special features:

  • save, lock, set counter
  • integrated frequency and period measurement
  • optionally usable as 5 V up/down counter
  • Microincrements
  • synchronous reading of the position value via distributed clocks
  • Timestamp on the last-registered incremental edge

In addition, the EL5101 enables the measurement of a period or frequency with a resolution of 100 ns. With the optional interpolating microincrement functionality, the EL5101 can provide even more accurate axis positions for dynamic axes. It also supports synchronous reading of the encoder value together with other input data in the EtherCAT system via the high-precision EtherCAT distributed clocks (DC). A timestamp for the last-registered incremental edge is also available. The use of encoder profiles enables simple and fast linking of the process data for Motion Control applications.


Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 38 to 45 Days

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. IMS Supply is not an authorized distributor, reseller or representative of Beckhoff. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
