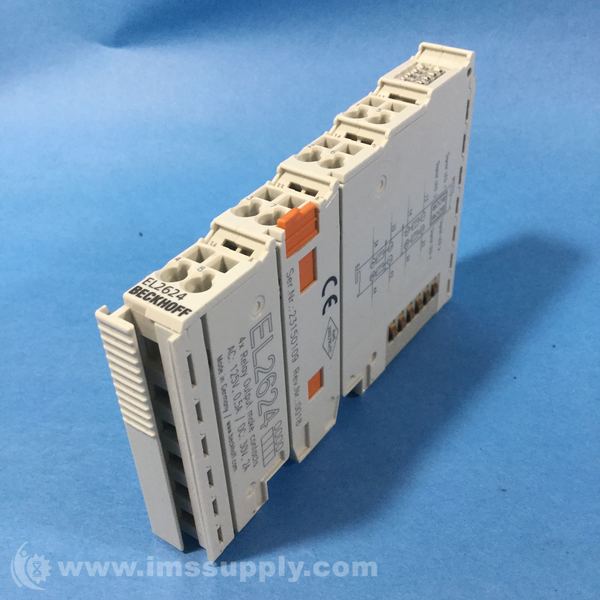

BECKHOFF EL2624 4-CHANNEL RELAY OUTPUT TERMINAL 125 V AC/30 V DC

Call For Quote

Quick Overview

Manufactured By: BECKHOFF
Manufacturer Part Number: EL2624
IMS Product Code: 1786710
Packaging: Sold Individually

Description:

Beckhoff EL2624 4-channel relay output terminal 125 V AC/30 V DC

Specifications:

  • Connection technology: relay output
  • Number of outputs: 4 x make contacts
  • Nominal voltage: 125 V AC/30 V DC
  • Load type:ohmic
  • Distributed clocks     –
  • Ohmic switching current: 0.5 A AC/2 A DC per channel
  • Inductive switching current: no data
  • Minimum permitted load: 10 µA at 10 mV DC with intact contact coating
  • Current consumption E-bus: typ. 200 mA
  • Electrical isolation: 500 V (E-bus/field potential)
  • Current consumption power contacts     –
  • Bit width in the process image: 4 outputs
  • Operating cycles mech. (min.): 1 x 108
  • Operating cycles electr. (min.): 2 x 105 (1 A/30 V DC)
  • Configuration: no address or configuration setting
  • Weight: approx. 50 g
  • Operating/storage temperature: 0…+55 °C/-25…+85 °C
  • Relative humidity: 95 %, no condensation
  • Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
  • EMC immunity/emission:  conforms to EN 61000-6-2/EN 61000-6-4
  • Protect. class/installation pos.:  IP 20/variable
  • Pluggable wiring: for all ESxxxx terminals
  • Approvals: CE, UL
