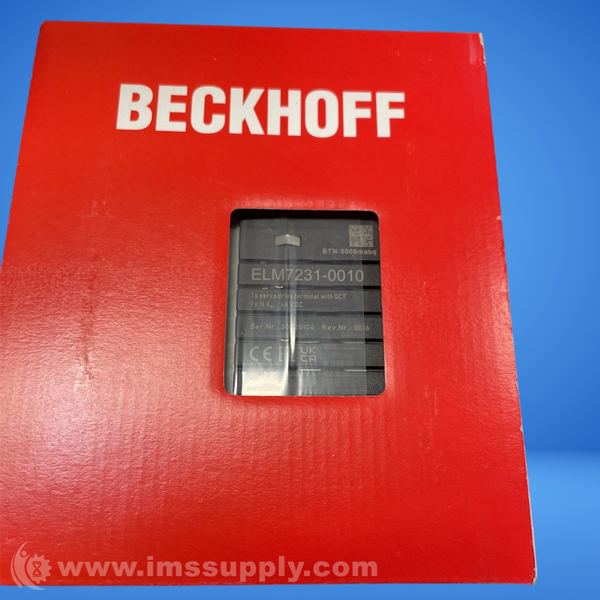

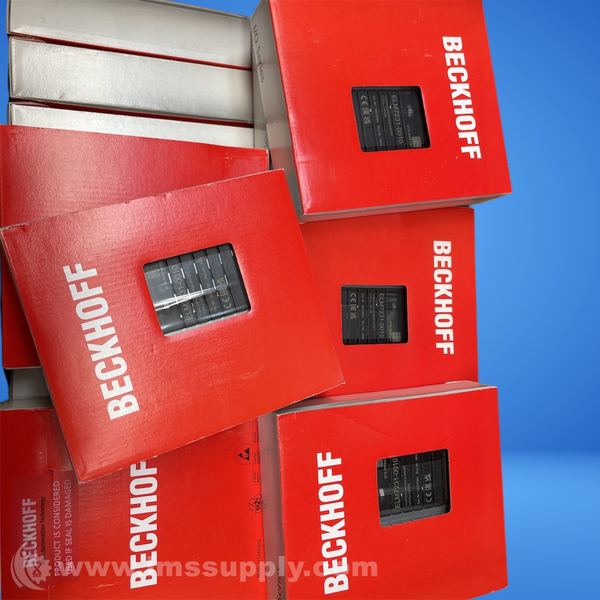

BECKHOFF ELM7231-0010 ETHERCAT TERMINAL
Quick Overview
Manufactured By: BECKHOFF
Manufacturer Part Number: ELM7231-0010
IMS Product Code: 2130771
Packaging: Box of 30
Description:
Beckhoff ELM7231-0010 EtherCAT Terminal
EtherCAT Terminal, 1-channel motion interface, servomotor, 48 V DC, 16 A, OCT
Specifications
- Technology: compact drive technology
- Load type: permanent magnet-excited three-phase synchronous motor
- Number of channels: 1
- Number of outputs: 1 x servomotor, 1 x motor brake, 1 x braking resistor
- Number of inputs: 2 x digital input, 1 x feedback
- Connection technology: direct motor connection with OCT
- Supply voltage electronics: 24 V DC (via power contacts)
- Supply voltage power: 8…48 V DC (external)
- Output current (rms): 16 A
- Peak current (rms): max. 30 A for 1 s
- PWM clock frequency: 16 kHz
- Current controller frequency: 32 kHz
- Rated speed controller frequency: 16 kHz
- Rotating field frequency: 0…599 Hz
- Output voltage motor brake: 24 V DC
- Output current: max. 0.7 A
- Power loss: typ. 10 W
- Current consumption power contacts: typ. 100 mA + holding current motor brake
- Current consumption E-bus: 120 mA
- Distributed clocks: yes
- Special features: compact (30 mm wide), absolute feedback, One Cable Technology (OCT)
- Electrical isolation: 500 V (E-bus/field potential)
- Weight: approx. 390 g
- Operating temperature: 0…55°C
- Storage temperature: -25…+85°C
- Relative humidity: 95%, no condensation
- Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
- EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
- Protect. rating/installation pos.: IP20/see documentation
- Approvals/markings: CE, UL
- Design form: metal housing with signal LEDs
- Material: zinc die-cast
- Installation: on 35 mm DIN rail, conforming to EN 60715 with lock
- Wiring: specific push-in connection
- Dimensions (W x H x D): 30 mm x 100 mm x 95 mm
