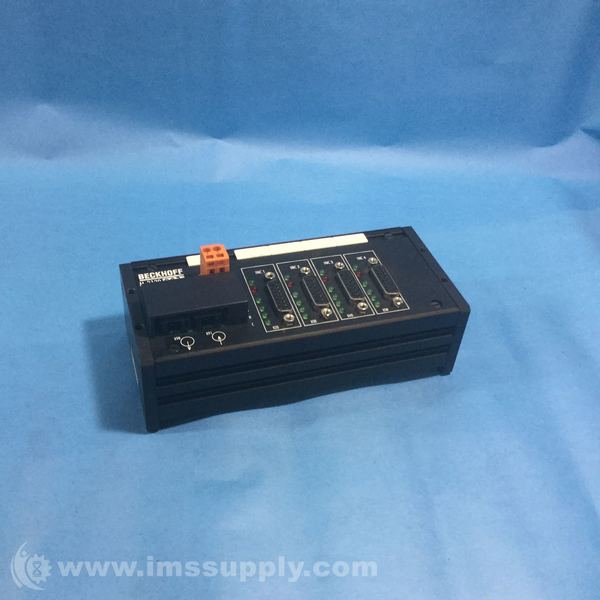

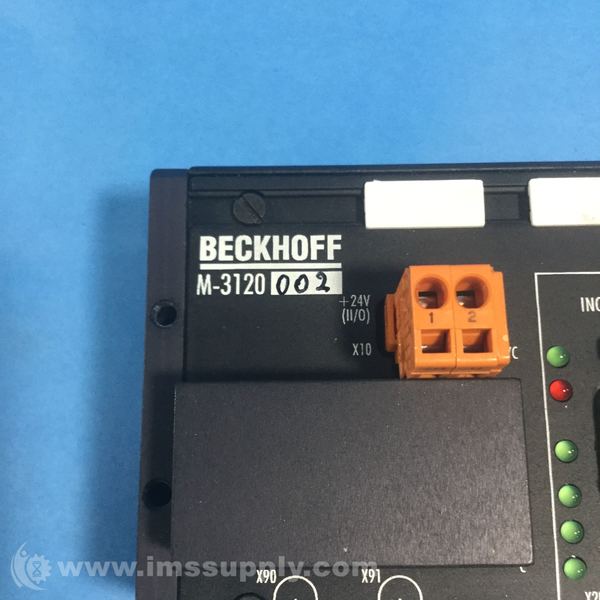

BECKHOFF M3120-002 LIGHTBUS INCREMENTAL ENCODER INTERFACE

Call For Quote

Quick Overview

Manufactured By: BECKHOFF
Manufacturer Part Number: M3120-002
IMS Product Code: 1810084
Packaging: Sold Individually

Description:

Beckhoff M3120-002 Lightbus Incremental Encoder Interface

Specifications:

  • Fieldbus: Lightbus
  • Data transfer rates: 2.5 Mbaud, 32 bits of process data in 25 µs
  • Encoder connection: A, A(inv), B, B(inv), zero, zero(inv), status
  • Encoder operating voltage: optionally 5 V DC/15 V DC
  • Counter: 24 bits, binary
  • Limit frequency: 1 MHz
  • Quadrature decoder: 1-, 2-, or 4-fold evaluation
  • Zero-pulse latch: 24 bits
  • Commands: read, set, enable
  • Supply voltage: 24 V DC (-15 %/+20 %)
  • Current consumption: 0.1 A (without sensor load current)
  • Housing form: compact continuously cast aluminium housing, can be clipped to device carrier rail
  • Dimensions (W x H x D): 166 mm x 76 mm x 63 mm
  • Operating/storage temperature: 0…+55 °C/-25…+85 °C
  • Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
  • EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
