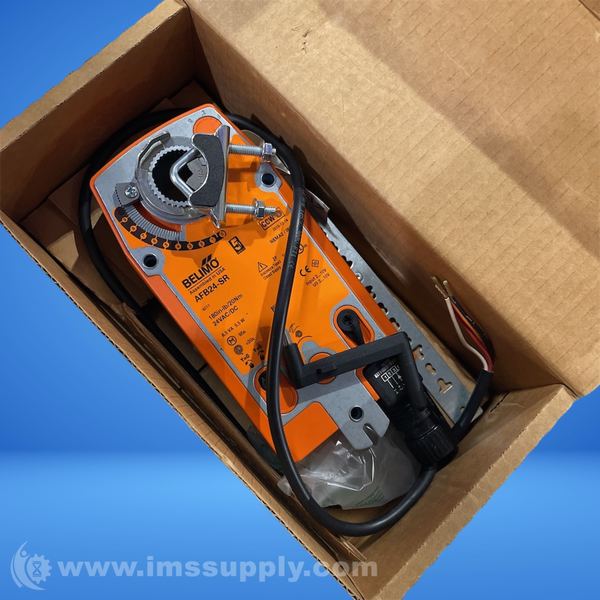

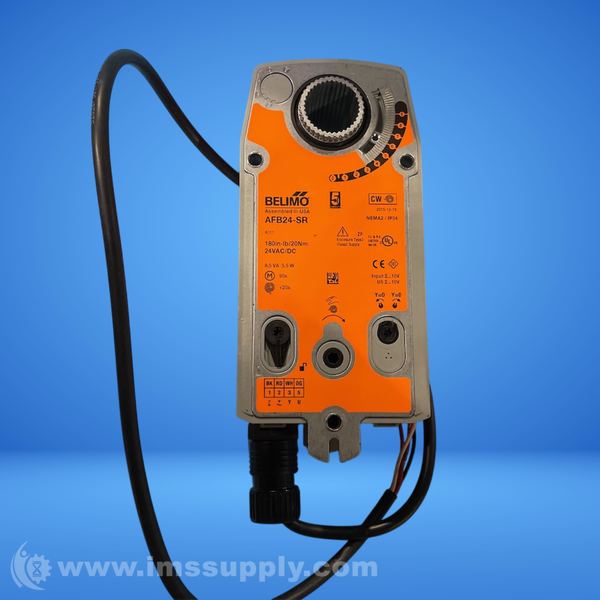

BELIMO AFB24-SR DAMPER ACTUATOR
Quick Overview
Manufactured By: BELIMO
Manufacturer Part Number: AFB24-SR
IMS Product Code: 2154187
Packaging: Sold Individually
Description:
Belimo AFB24-SR Damper Actuator
Spring return damper actuator with 180 in-lb torque for proportional modulation of dampers in HVAC systems.
Specifications
- Supply Voltage: 24 VAC/VDC
- Torque: 180 in-lb
- Housing Material: Zinc Coated Metal and Plastic Casing
- Humidity: max. 95% RH non-condensing
- Manual Override: 5mm Hex Crank (3/16 in Allen)
- Input Impedance: 100 kO for 2 to 10 VDC, 500 O for 4 to 20 mA
- Position Indication: visual indicator, 0° to 95°
- Shaft Diameter: 1/2 in to 1.05 in round
- Power Consumption Running: 5.5 W
- Power Consumption Holding: 3 W
- Running Time: 95 seconds
- Transformer Sizing: 8.5 VA
- Storage Temperature Range: -40 to 176 °F
- Enclosure Rating: NEMA 2, IP54
- Ambient Temperature Range: -22 to 122 °F
- Angle of Rotation: 95°
- Electrical Connection: 3ft appliance cable with 1/2 in conduit connector
- Feedback Output: 2 to 10 VDC, 0.5 mA max
- Weight: 2.39 lbs
- Country of Origin: United States of America
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 3 minutes.
