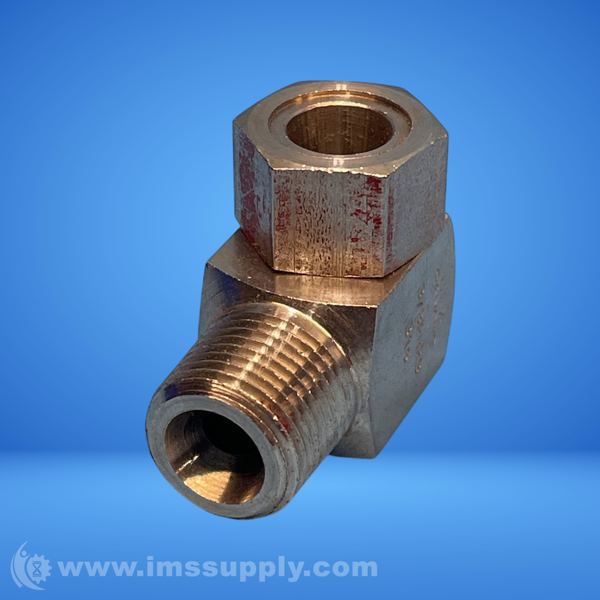

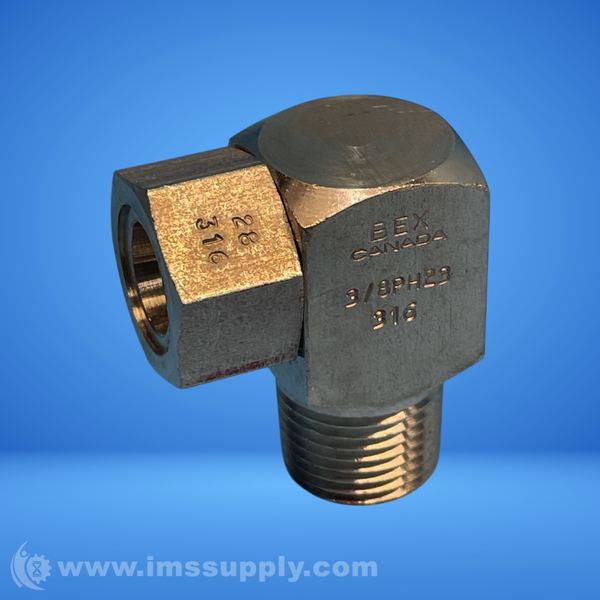

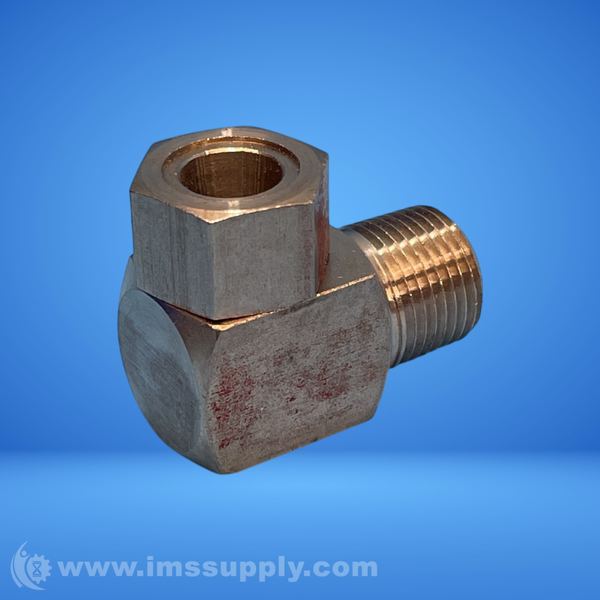

BEX 3/8PH23 PHOSPHATING NOZZLE
Quick Overview
Manufactured By: BEX
Manufacturer Part Number: 3/8PH23
IMS Product Code: 2083741
Packaging: Sold Individually
Description:
BEX 3/8PH23 Phosphating Nozzle
PH series nozzle for phosphating applications
Specifications
- Orifice Diameter Body: 7.9 mm
- Orifice Diameter Cap: 5.6 mm
- Spray Angle at 0.5 bar: 45°
- Spray Angle at 1.5 bar: 53°
- Spray Angle at 4 bar: 60°
- Capacity at 0.3 bar: 5.7 LPM
- Capacity at 0.5 bar: 7.4 LPM
- Capacity at 0.7 bar: 8.8 LPM
- Capacity at 1.0 bar: 10.5 LPM
- Capacity at 1.5 bar: 12.8 LPM
- Capacity at 2 bar: 14.8 LPM
- Capacity at 3 bar: 18.2 LPM
- Capacity at 4 bar: 21.0 LPM
- Capacity at 5 bar: 23.4 LPM
- Capacity at 7 bar: 27.7 LPM
- Construction: Two-piece construction with removable cap
- Standard Materials: Brass, 303SS, 316SS
