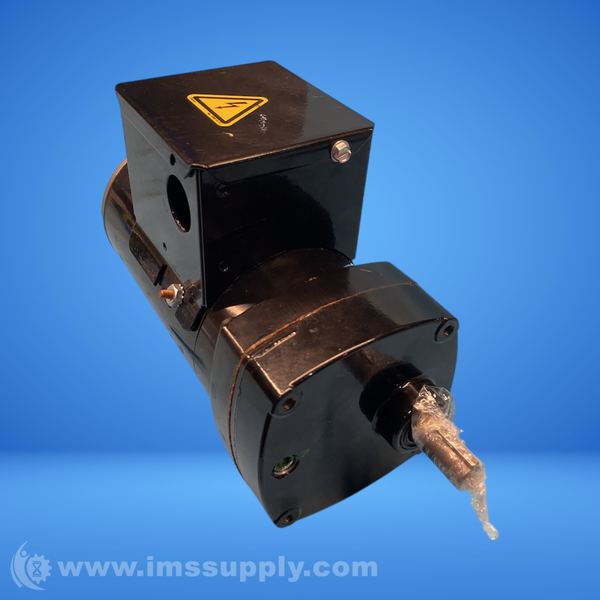

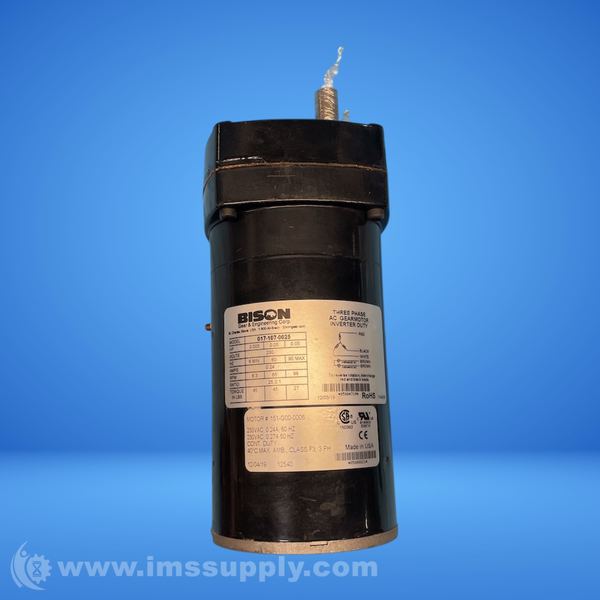

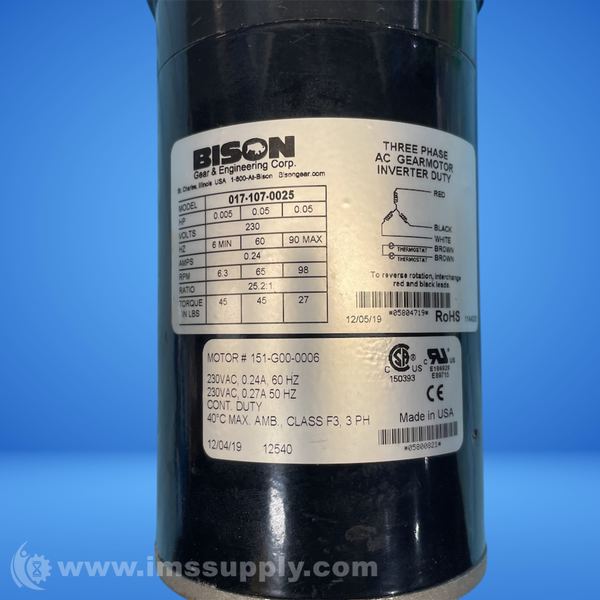

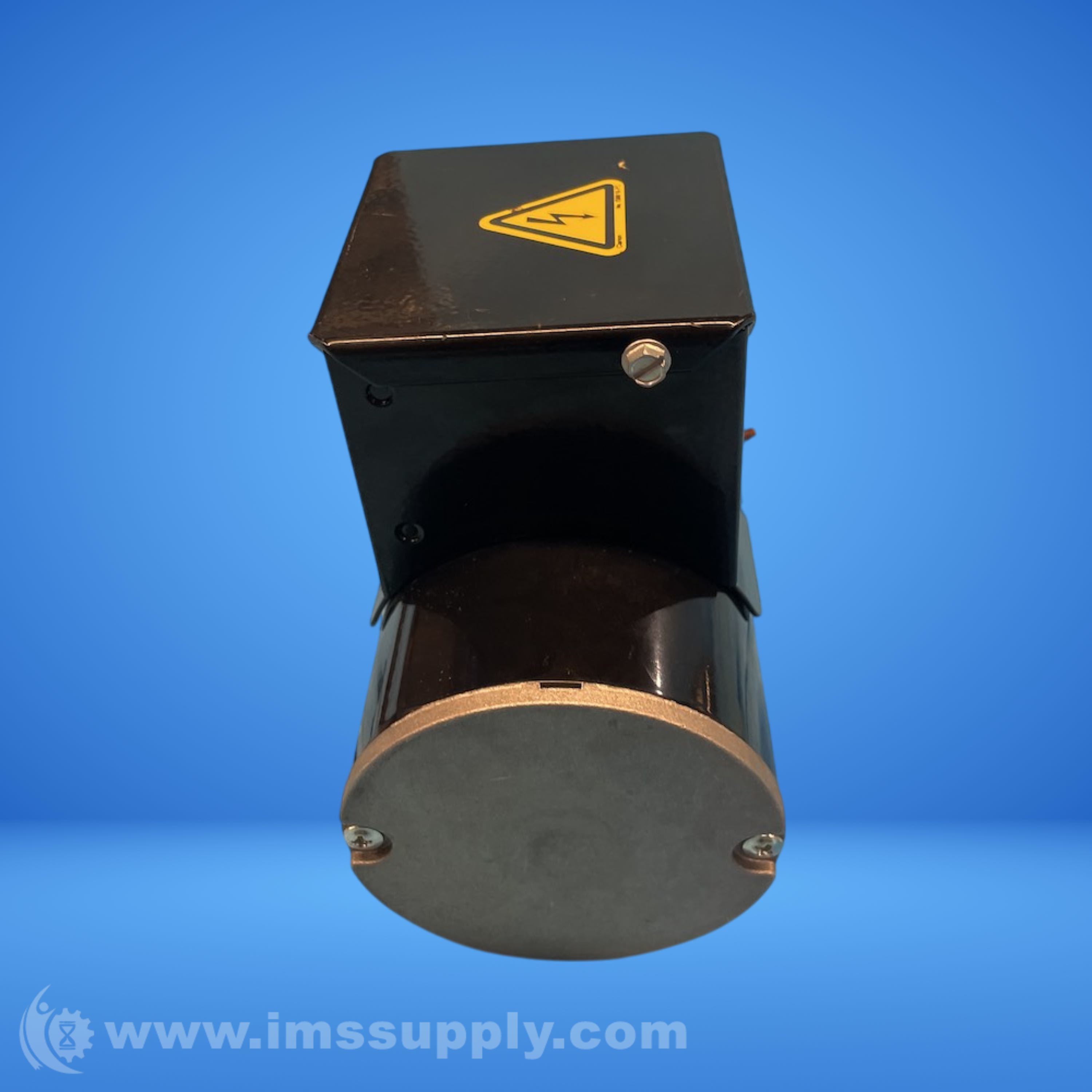

BISON 017-107-0025 AC PARALLEL GEAR MOTOR
Quick Overview
Manufactured By: BISON
Manufacturer Part Number: 017-107-0025
IMS Product Code: 2141659
Packaging: Sold Individually
Description:
Bison 017-107-0025 AC Parallel Gear Motor
AC Parallel Gear Motor with 25.2:1 ratio, 1/20 hp, 230V, 3-phase, TENV enclosure, face/foot mount, keyed output shaft
Specifications
- Shaft Type: Parallel
- Input Horsepower: 1/20 hp
- Motor Phase: 3 ph
- Motor Supply Voltage: 230 V
- Gear Ratio: 25.2 :1
- Output RPM: 65.1 rpm
- Enclosure Type: TENV (Totally Enclosed Non-Ventilated)
- Duty Condition Type: Continuous Duty
- Full Load Current: 0.24 A
- Full Load Torque: 45 in/lb
- Insulation Class: F
- Frequency Rating: 60/90 Hz
- Standards Met: CSA, CURUS, RoHS, UL
- IP Rating: IP54
- Stage: 2
- Overhung Load: 220 lbs
- Mounting Type: Face / Foot
- Weight: 9.00 lbs
- Maximum Output Speed: 98 RPM
- Maximum Torque: 45 in-lb
- Output Shaft Diameter: 1/2 in
- Output Shaft Length: 7/16 in
- Keyway Type: Square
- Keyway Width: 1/8 in
- Keyway Depth: 1/8 in
- Keyway Length: 3/4 in
- Lubrication: Oil
- Overall Length: 8.71 in
- Length Less Shaft: 7.29 in
- Overall Height: 3.35 in
- Country of Origin: USA
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
