BOSTON GEAR 715-10-H WORM GEARBOX
Quick Overview
Manufactured By: BOSTON GEAR
Manufacturer Part Number: 715-10-H
IMS Product Code: 1896502
Packaging: Sold Individually
Description:

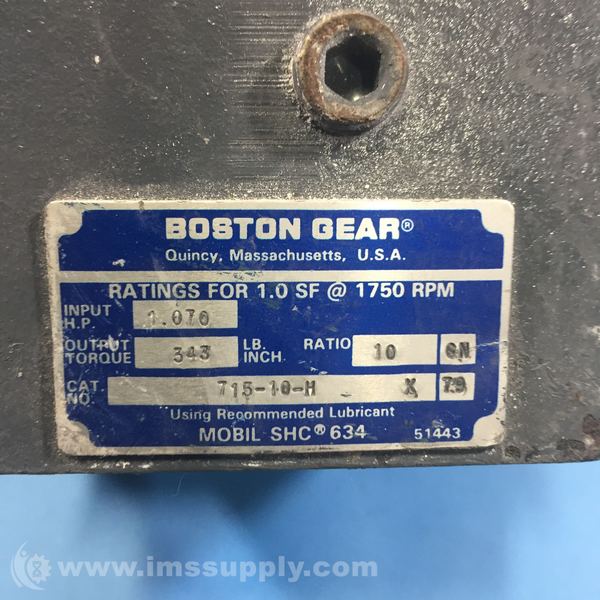

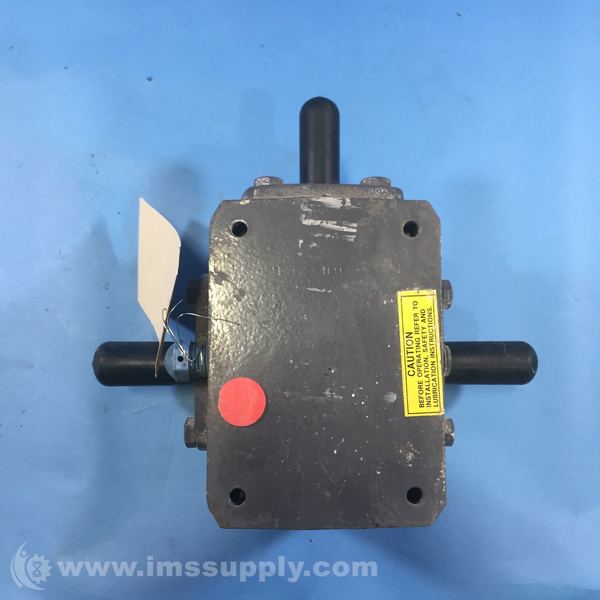

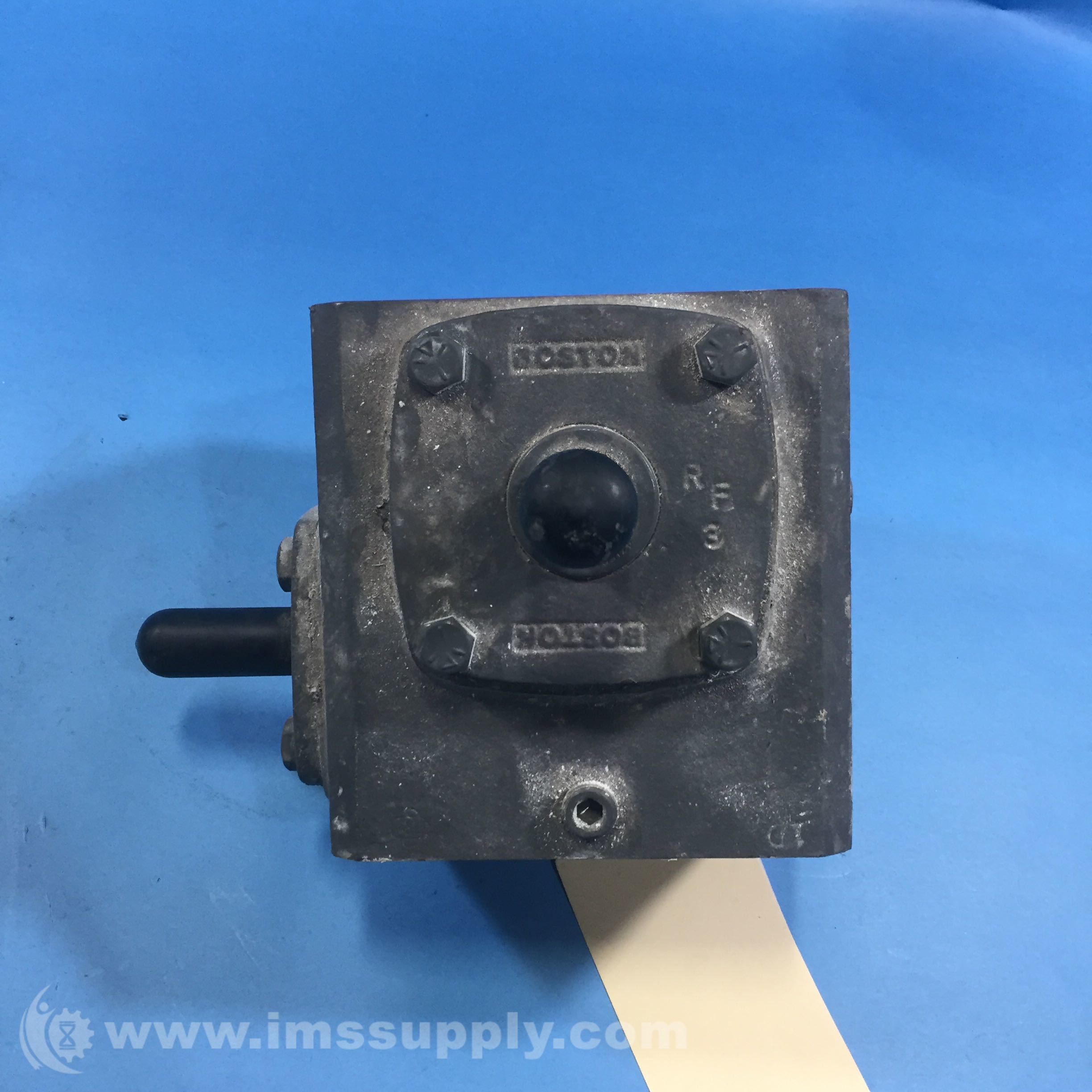

Boston Gear 715-10-H Worm Gearbox
Cast iron worm gearbox with 10:1 ratio, single reduction, double shaft projection, and gray paint finish.
Specifications
- Bore/Shaft Diameter: 0.75"
- Center Distance: 1.5"
- Input Size: 0.625"
- Input Style: Solid Input Shaft
- Input Type: Input Shaft
- Output: Left & Right
- Output Type: Solid Output Shaft
- Ratio: 10 to 1
- Reduction: Single
- Shaft Projection: Double
- Output RPM @1750: 175
- Torque Cap (LB-IN): 343
- Series: 700
- Gear Ratio: 10:1
- Input hp: 1.2 hp
- Output hp: 1.1 hp
- Motor hp: 1 hp
- Output Maximum Speed: 175 rpm
- Input Maximum Speed: 1750 rpm
- Torque Rating: 397 in-lb
- Centre Distance: 1.54 in
- Efficiency: 0.92 %
- Lubrication: Klubersynth UH1 6-460
- Material: Cast Iron
- Dimensions: 7.25 in L x 6.84 in W x 5.38 in H
- Input Shaft: 0.6245 in
- Output Shaft: 3/4 in
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 6 minutes.
