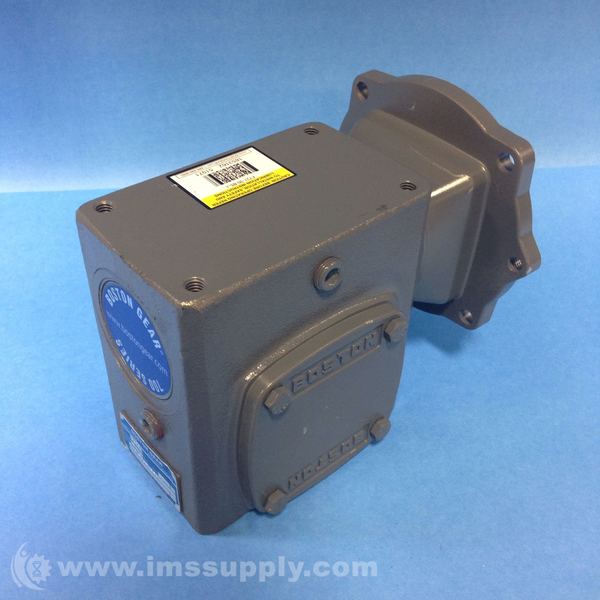

BOSTON GEAR F721-30-B5-J SPEED REDUCER
Quick Overview
Manufactured By: BOSTON GEAR
Manufacturer Part Number: F721-30-B5-J
IMS Product Code: 1734919
Packaging: Sold Individually
Description:
Standard Cast Iron C-Face Speed Reducer, Single Output, 700 lb. Overhung Load
Item: Speed Reducer
Speed Reducer Type: C-Face
Shaft Orientation: Right Angle
Duty: Standard
Input RPM: 1750
Nominal Output RPM: 58
Worm Center Distance: 2.06"
Bore Dia.: 5/8"
Frame: 56C
Overhung Load: 700 lb.
Nominal Ratio: 30:1
Max. Input HP: 0.75
Max. Output Torque: 624 in.-lb.
Output Torque @ 1/40 HP: 3600
Output Torque @ 3/4 HP: 416 in.-lb.
Output Torque @ 1 HP: 624 in.-lb.
Number of Stages: 1
Rotation: Forward/Reversible
Base: Optional
Mounting: Any Position
Lubrication: Klubersynth UH1 6-460
Seal Type: Double Lip
Bearings: Tapered Roller
Pinion Material: Hardened Steel
Gear Type: Worm
Gear Material: Hardened and Ground Steel
Worm Gear Material: Bronze
Housing Material: Cast Iron
Finish: Powdered Epoxy Paint
Single/Double Output/Universal: Single Output
Solid/Hollow Output Shaft: Solid
Output Shaft Dia.: 1"
Output Shaft Height: 2-9/32"
Standards: AGMA
