BROWNING 1VP44X3/4 VARIABLE PITCH SHEAVE
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: 1VP44 X 3/4
IMS Product Code: 1945703
Packaging: Sold Individually
Description:

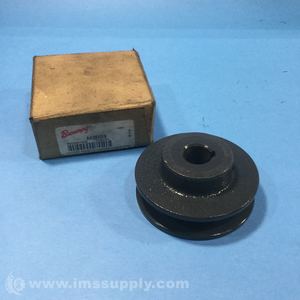

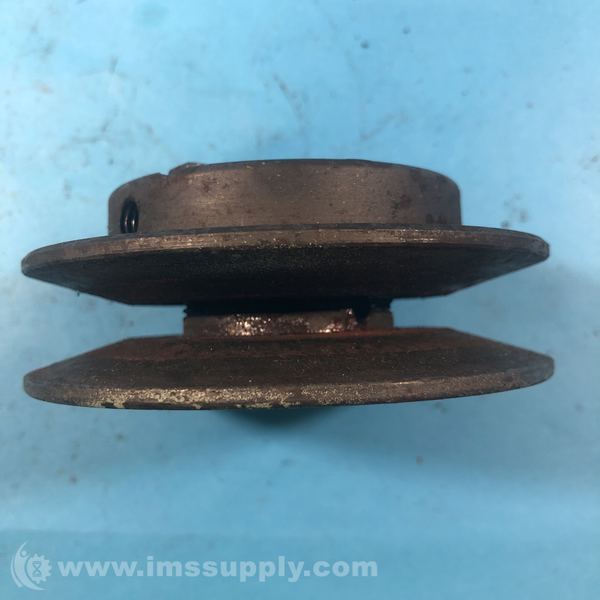

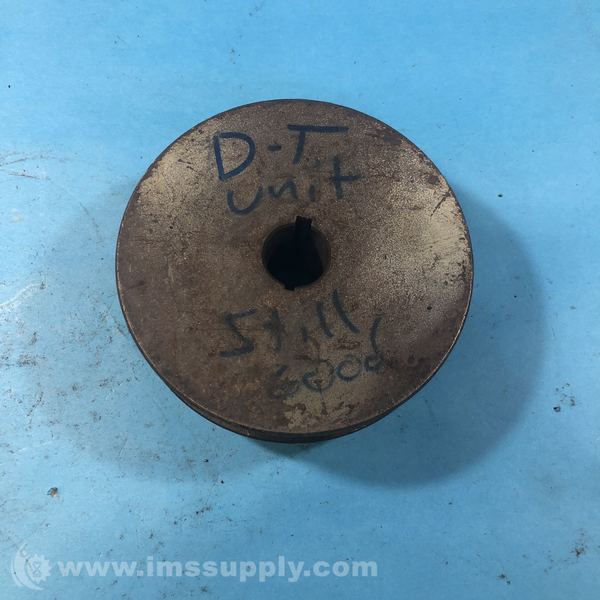

Browning 1VP44X3/4 Variable Pitch Sheave
Cast iron variable pitch sheave with 1 groove, 3L/4L/5L/A/B belt section size, 0.75 inch bore, 4.15 inch OD, finished with keyway.
Specifications
- Belt Section Size: 3L, 4L, 5L, A, B
- Bore Diameter: 0.7500 in
- Bore Type: Finished w/ Keyway
- Datum Diameter: 3.8000 in (A) (Max) 4.1000 in (B) (Max) 3.1000 in (B) (Min)
- Face Width: 21/32 to 1-1/32 in
- Keyway Size: 3/16 x 3/32 in
- Length Through Bore: 1.8750 in
- Material: Cast Iron
- Maximum Pitch Diameter: 3.5000 in (3L) Max
- Minimum Pitch Diameter: 2.7000 in (3L) Min
- Number Of Grooves: 1
- Outside Diameter: 4.1500 in
- Pulley Construction: Variable
- Series: VP
- Weight: 2.02 lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
