BROWNING 1VP56 X 1 1/8 VARIABLE PITCH SHEAVE
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: 1VP56 X 1 1/8
IMS Product Code: 1945701
Packaging: Sold Individually
Description:

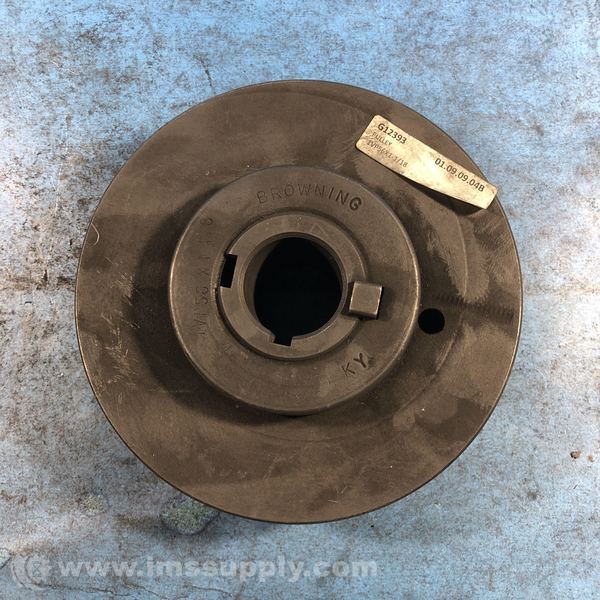

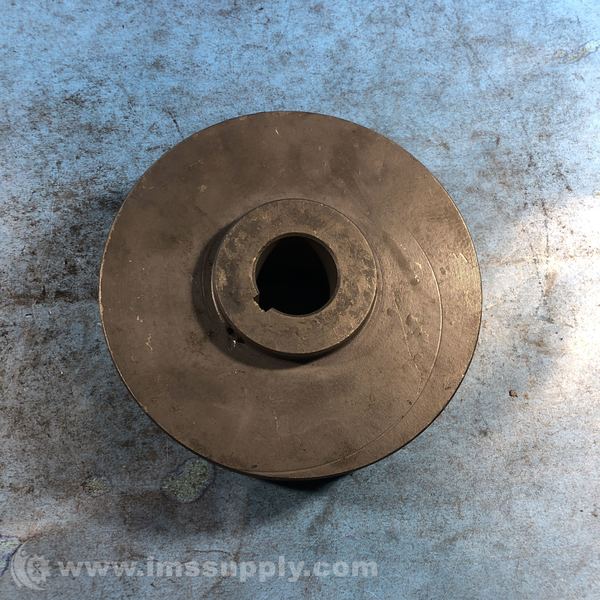

Browning 1VP56 X 1 1/8 Variable Pitch Sheave
Variable pitch sheave, VP series, 1 groove, 3L/4L/5L/A/B belt section size, 1.125 inch bore, 5.35 inch OD, cast iron material.
Specifications
- Belt Section Size: 3L, 4L, 5L, A, B
- Bore Diameter: 1.125 in
- Bore Type: Finished w/ Keyway
- Datum Diameter: 5.0000 in (A) (Max) 5.3000 in (B) (Max) 4.3000 in (B) (Min)
- Face Width: 11/16 to 1-1/16 in
- Keyway Size: 1/4 x 1/8 in
- Length Through Bore: 2.1563 in
- Material: Cast Iron
- Maximum Pitch Diameter: 4.7000 in (3L) Max
- Minimum Pitch Diameter: 3.9000 in (3L) Min
- Number Of Grooves: 1
- Outside Diameter: 5.35 in
- Pulley Construction: Variable
- Series: VP
- Weight: 4.40 lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
