BROWNING H4015X1 STEEL FINISHED BORE SPROCKET
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: H4015X1
IMS Product Code: 1835016
Packaging: Sold Individually
Description:

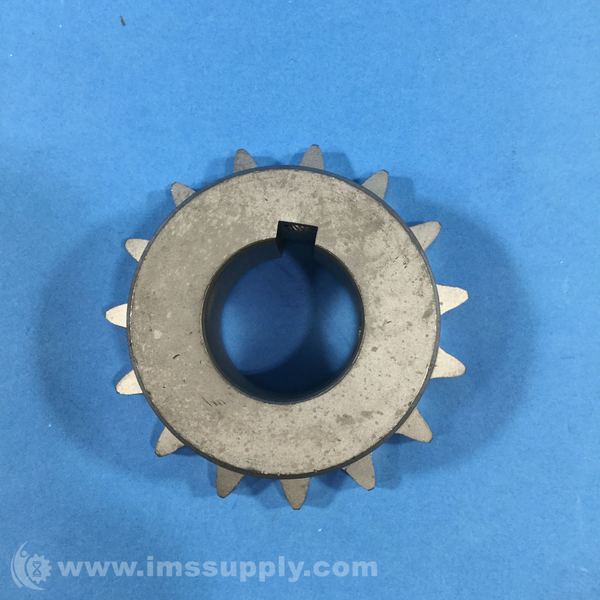

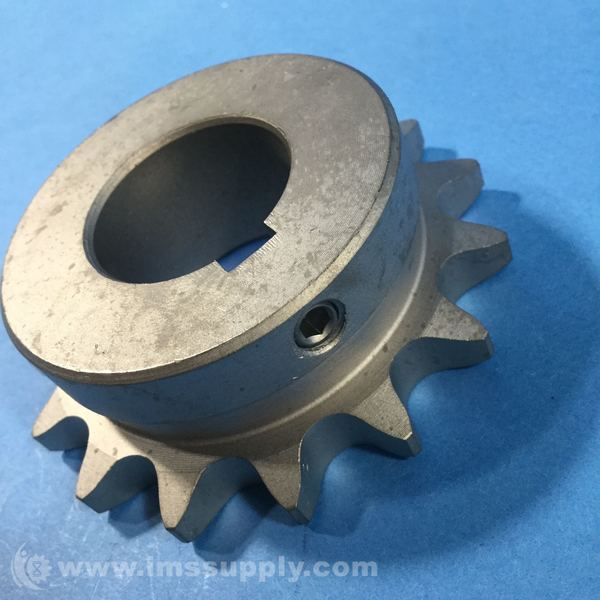

Browning H4015X1 Steel Finished Bore Sprocket
Steel finished bore roller chain sprocket with hardened teeth, 15 teeth, 1 inch bore diameter with keyway, Type B hub style, single strand, 1/2 inch pitch ANSI chain compatibility
Specifications
- Material: Steel
- Number of Teeth: 15
- Bore Type: Finished Bore w/ Keyway
- Bore Diameter: 1 in
- Hub Type: Type B
- Pitch Diameter: 2.405 in
- Outside Diameter: 2.652 in
- Length Through Bore: 0.891 in
- Hub Diameter: 2.0625 in
- Hub Projection: 0.594 in
- Tooth Width: 0.284 in
- Keyway Size: 1/4 x 1/8
- Hardened Teeth: With Hardened Teeth
- Number of Strands: 1
- Chain Pitch: 0.5 in
- Weight: 0.65 lbs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
