BROWNING VPS-110 PILLOW BLOCK BALL BEARING UNIT
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: VPS-110
IMS Product Code: 2038434
Packaging: Sold Individually
Description:

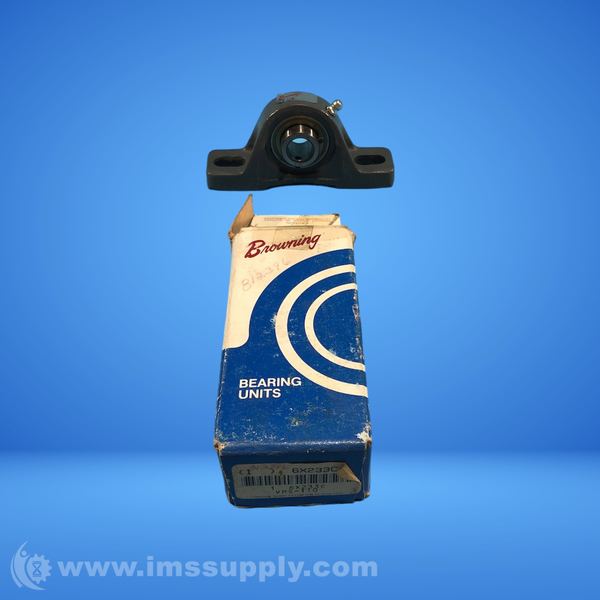

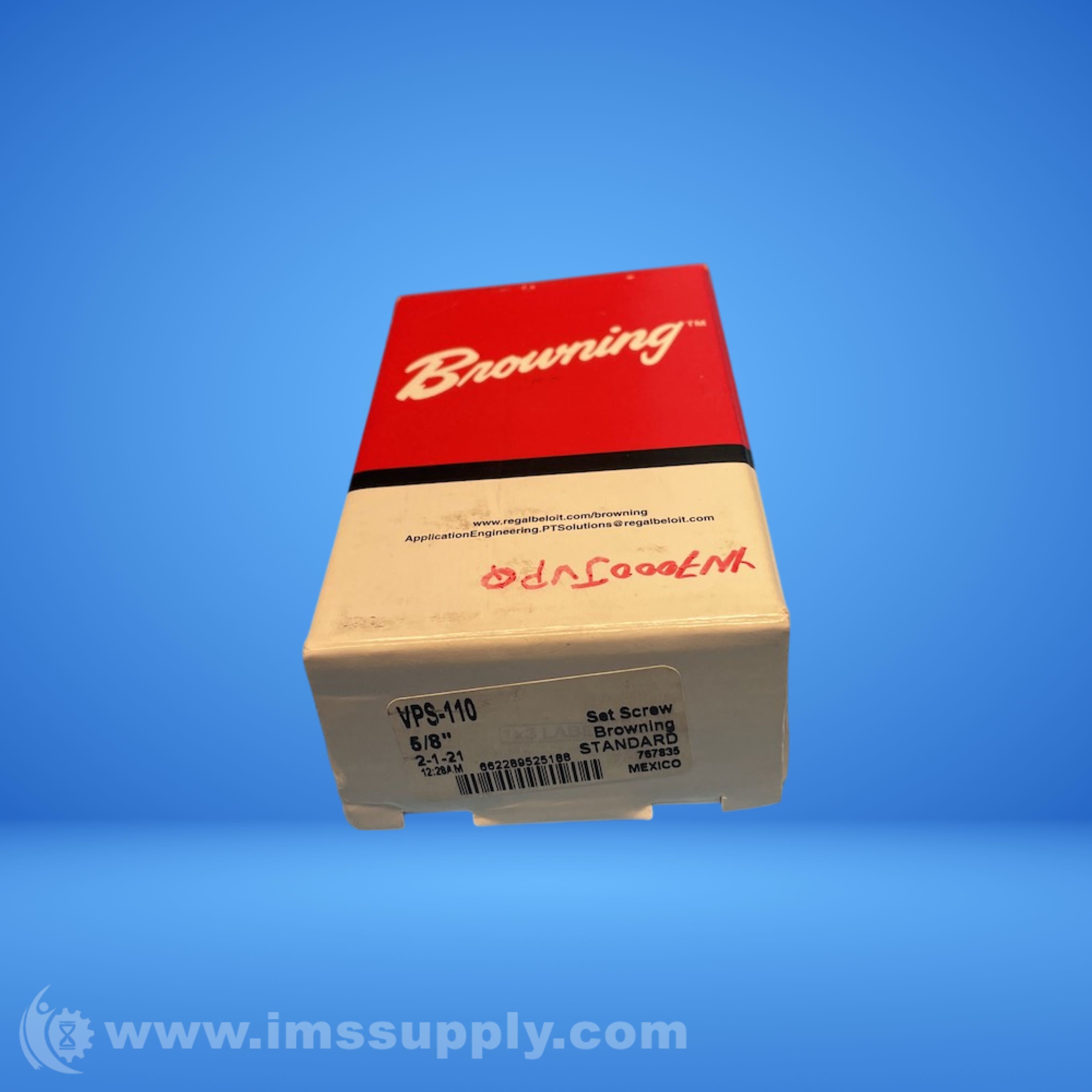

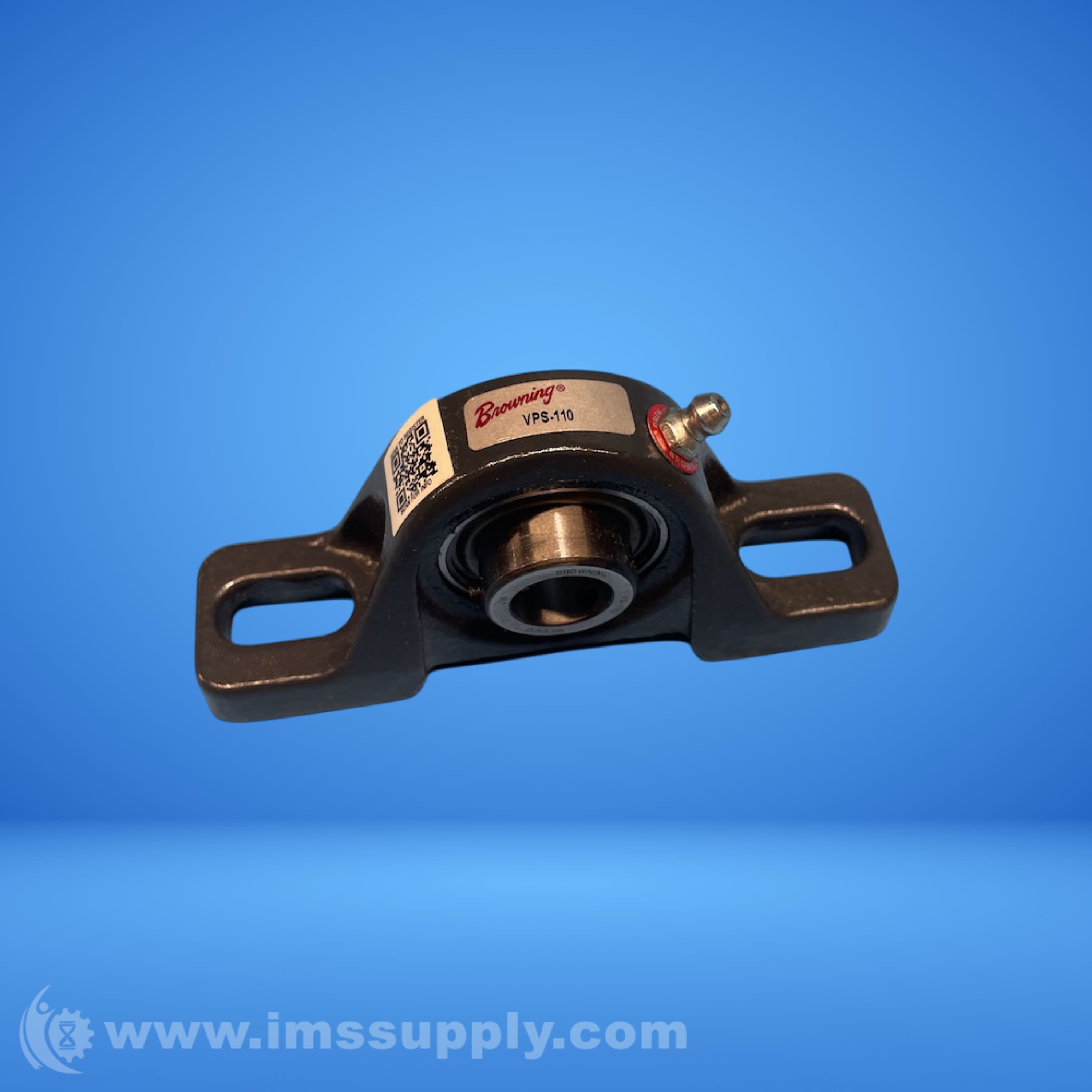

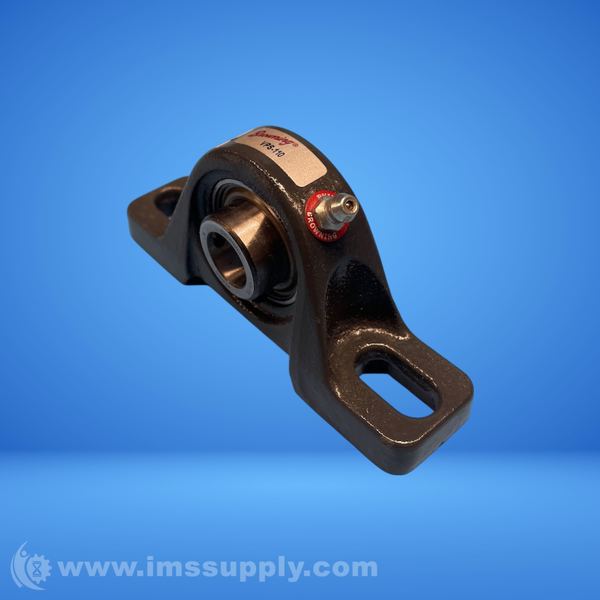

Browning VPS-110 Pillow Block Ball Bearing Unit
Pillow Block Ball Bearing Unit - 2-Bolt Base, 5/8 in Bore, Cast Iron Material, Light Duty, Non-Expansion Bearing (Fixed)
Specifications
- Mounting Type: 2-Bolt Base
- Bore Type: Round
- Bore Diameter: 5/8 in
- Bolt Center To Center Length: 3.1875 to 4.0625 in
- Base To Bore Centerline: 1.1875 in
- Duty Type: Light Duty
- Locking Device: Set Screw
- Seal Type: Single Lip Contact
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Height: 2.2188 in
- Overall Length: 4.8750 in
- Base Width: 1.2188 in
- Finish Coating: Gray Painted
- Insert Material: 52100 Bearing Steel
- Max Operating Temperature: 200 °F
- Radial Dynamic Load Capacity: 2108 lbf
- Radial Static Load Capacity: 1117 lbf
- Max Rpm: 5000 rpm
- Lubrication Type: Lubrication Fitting
- Series: VPS
- Weight: 1.02 lbs
- Number Of Mounting Holes: 2
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Open Box (Special):
Part has another part# VS-110.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
