BROWNING VPS-216 PILLOW BLOCK BALL BEARING
Quick Overview
Manufactured By: BROWNING
Manufacturer Part Number: VPS-216
IMS Product Code: 2145174
Packaging: Sold Individually
Description:

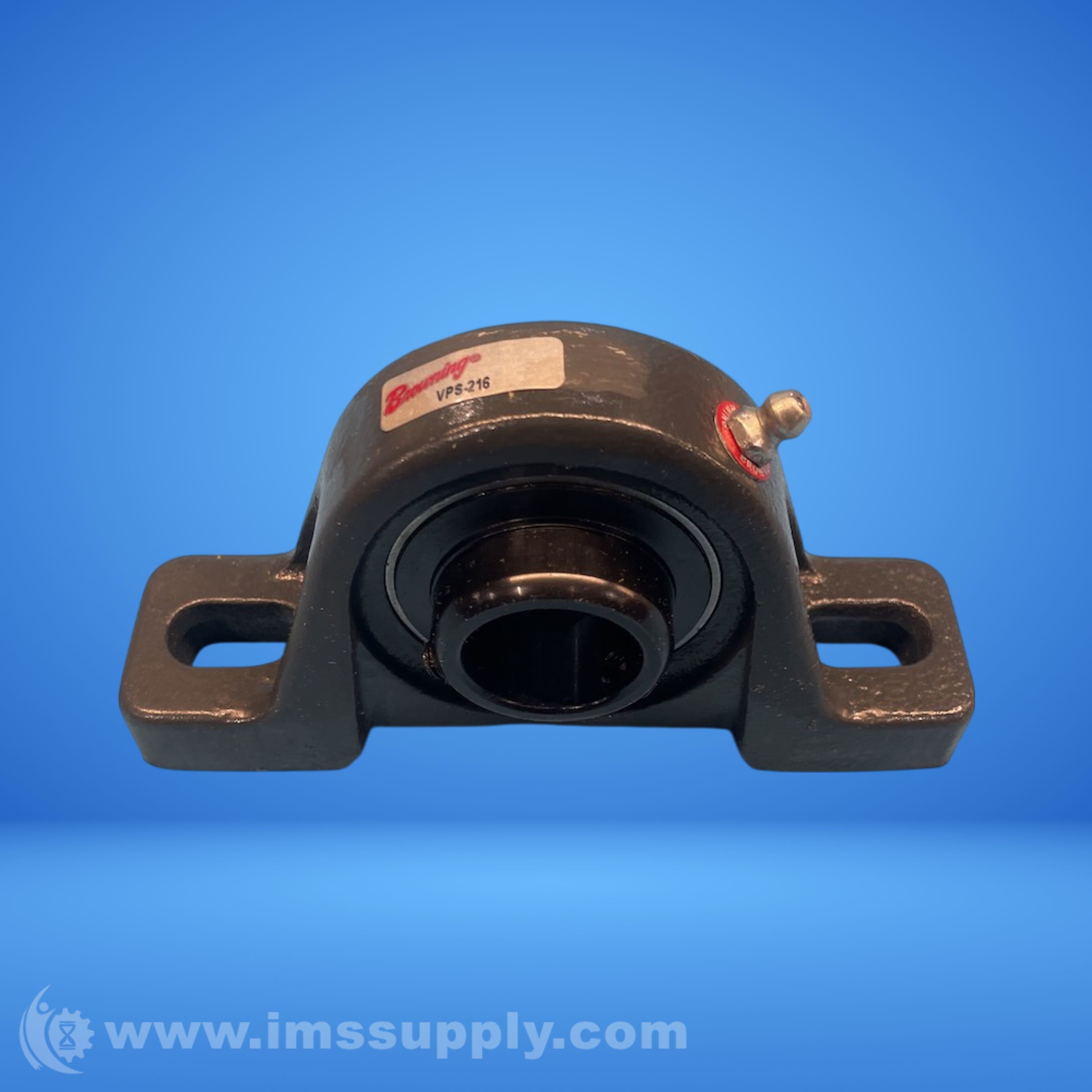

Browning VPS-216 Pillow Block Ball Bearing
Pillow Block Ball Bearing Unit - 2-Bolt Base, 1 in Bore, Cast Iron Material, Standard Duty, Non-Expansion Bearing (Fixed)
Specifications
- Mounting Type: 2-Bolt Base
- Bore Type: Round / Straight
- Bore Diameter: 1 in
- Bolt Center To Center Length: 3.7190 to 4.5310 in
- Base To Bore Centerline: 1.4375 in
- Duty Type: Standard Duty
- Locking Device: Set Screw
- Seal Type: Single Lip Contact with Flinger
- Housing Material: Cast Iron
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Height: 2.8130 in
- Overall Length: 5.5000 in
- Base Width: 1.4060 in
- Finish Coating: Gray
- Insert Material: 52100 Bearing Steel, Black Oxided Inner
- Bolt Size: 0.3750 in
- Max Operating Temperature: 200 F
- Radial Dynamic Load Capacity: 2801 lbf
- Radial Static Load Capacity: 1651 lbf
- Max Rpm: 5500 rpm
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Series: Normal
- Type Of Bearing: Ball Bearing
- Weight: 1.77 lbs
- Locking Type: Set Screw
- Number Of Mounting Holes: 2
