BUSS 16371-3 POWER DISTRIBUTION BLOCK
Quick Overview
Manufactured By: BUSS
Manufacturer Part Number: 16371-3
IMS Product Code: 2146905
Packaging: Sold Individually
Description:

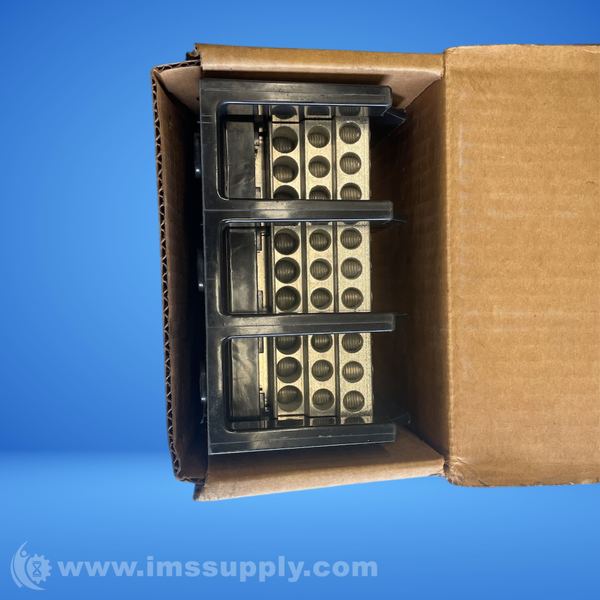

Buss 16371-3 Power Distribution Block
Three-pole power distribution block with 600 Vac/Vdc voltage rating, 310A amperage rating, and tin-plated aluminum connector.
Specifications
- Amperage Rating: 310 A
- Approval: UL, CSA, CE
- Color: Black
- Conductor Material: Copper/Aluminum
- Connector Material: Tin Plated Aluminum
- Current Rating: 310 Ampere
- Dimensions: 5.21 in L x 4 in W x 3.32 in H
- Finish: Tin Plated
- Housing Material: Molded Thermoplastic
- Material: Molded Thermoplastic Base, Tin-plated aluminum connector
- Number of Poles: 3
- Number of Primary Openings Per Pole: 1
- Number of Secondary Openings Per Pole: 9
- Primary Opening Wire Size: 6 AWG to 350 KCMIL
- Secondary Opening Wire Size: (6) 14 to 2 AWG (Copper), 8 to 2 AWG (Aluminum), (3) 14 to 1/0 AWG (Copper), 8 to 1/0 AWG (Aluminum)
- Short Circuit Current Rating: 100 kA
- Type: Barrier Power Distribution Block
- Voltage Rating: 600 Vac, 600 Vdc
