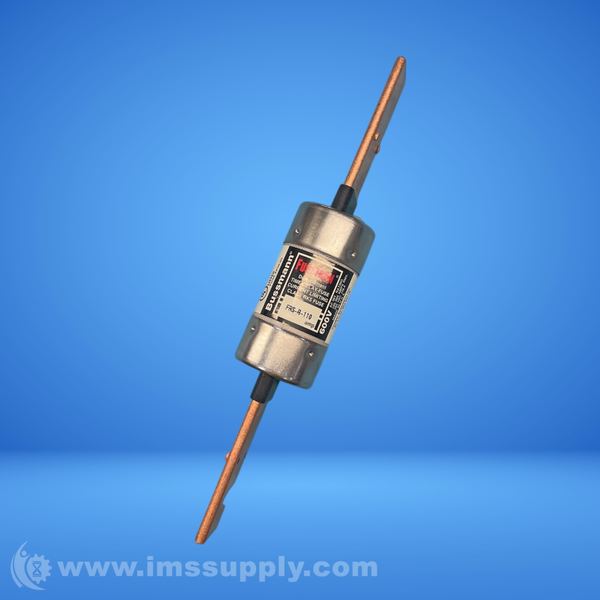

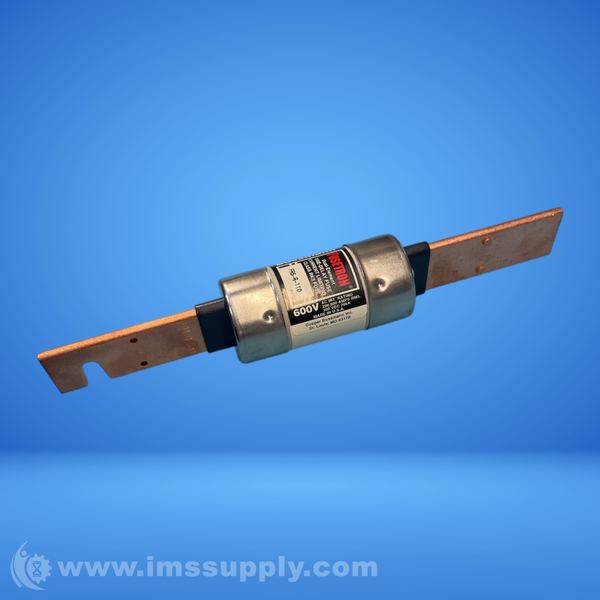

BUSS FRS-R-110 TIME DELAY FUSE
Quick Overview
Manufactured By: BUSS
Manufacturer Part Number: FRS-R-110
IMS Product Code: 2131091
Packaging: Sold Individually
Description:
Buss FRS-R-110 Time Delay Fuse
110 Amps, 600 Volts AC, UL Class RK5, Dual Element, Time Delay Fuse
Specifications
- AC Voltage Rating: 600
- Interrupting Rating: 200,000 AIC RMS
- Current Rating: 110 Amps
- Physical Size: 1.61" x 9.63"
- UL Listing: UL Listed, Class RK5, Guide JDDZ, File E4273
- CSA Certification: CSA Certified, Class 1422-01, File 53787
- Interrupting Rating DC: 20 kAIC @ 300 Vdc
- Class: Rk5
- Time Delay: 10 Sec (At 500 Percent Rated Load)
- Voltage: 600 Vac/300 Vdc
- Ampere: 110
- Terminal Type: Blade
- Diameter: 1.84 Inch
- Length: 9.63 Inch
- Approvals: Ul 248-12 Csa Ce
- Brand: Fusetron[R]
- Model: Frs-R
- Current Limiting: Current Limiting
- Amps: 110 A
- DC Voltage Rating: 300V DC
- Speed: Time Delay
- Body Style: Blade
- Fuse Size: 9-5/8 in L x 1-19/32 in dia
- Visual Indication: Nonindicating
- Interrupt Rating: 200kA at 600V AC; 20kA at 300V DC
- Body Material: Fiberglass
- Element: Dual
- Standards: CE; CSA Certification Class 1422-01; UL 248-12 Guide JDDZ
- Series: FRS-R
- UNSPSC: 39121604
- Country of Origin: Mexico (subject to change)
- Dimensions: 1.61" Dia x 9.63" L (40.89x244.6mm)
- Item weight: 1.56 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 32 minutes.
