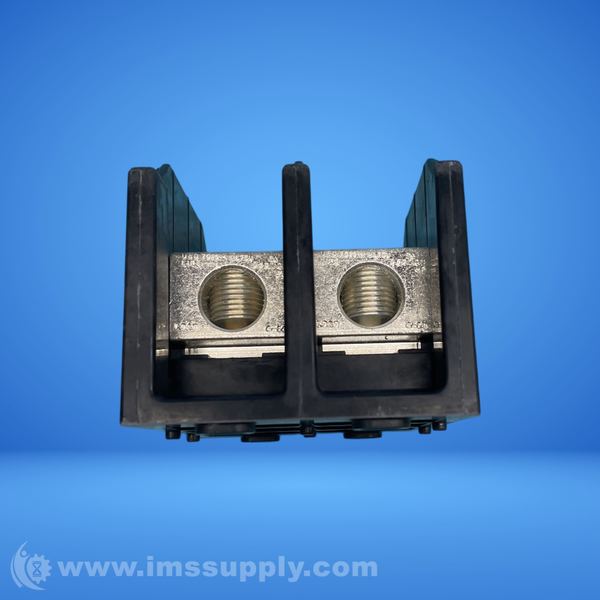

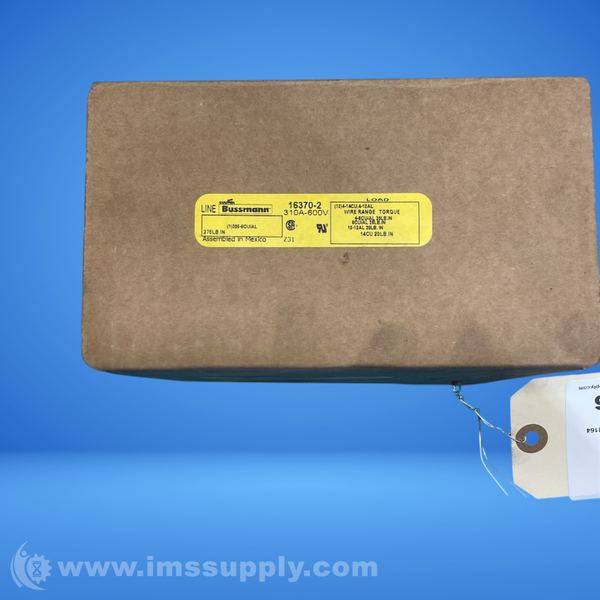

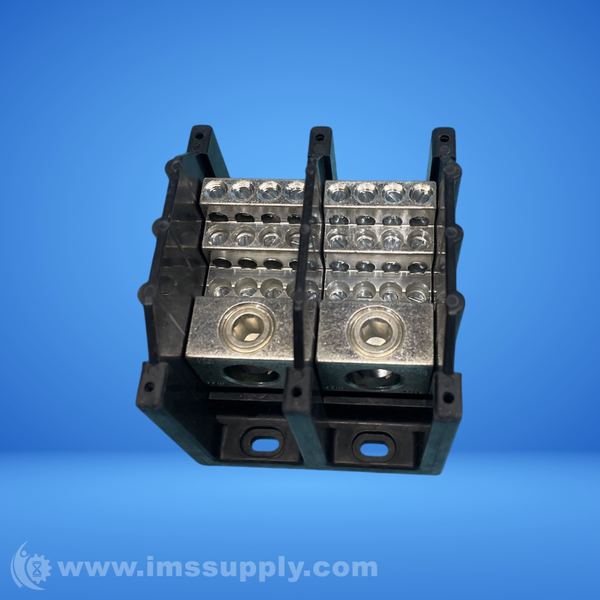

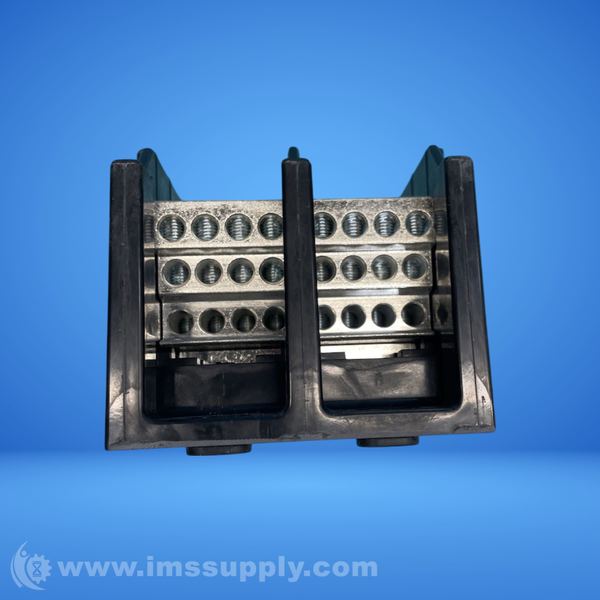

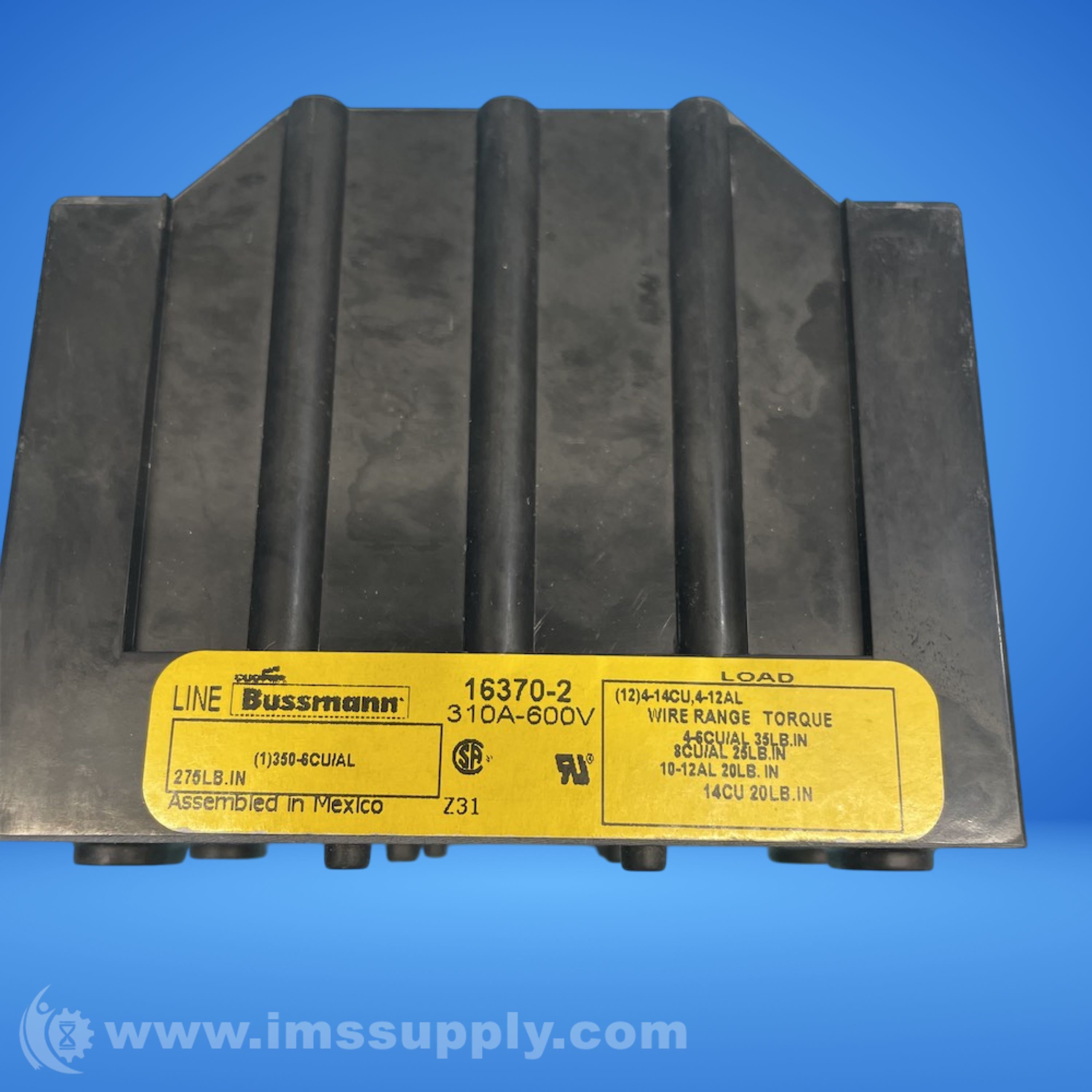

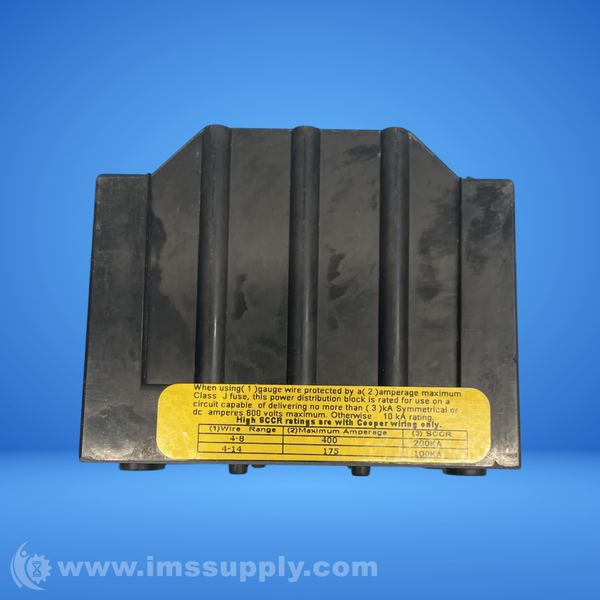

BUSSMANN 16370-2 POWER DISTRIBUTION BLOCK
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: 16370-2
IMS Product Code: 2124763
Packaging: Sold Individually
Description:
Bussmann 16370-2 Power Distribution Block
2-Pole, 600V, 310A, Thermoplastic, Lug Termination
Specifications
- Amperage Rating: 310 A
- Color: Black
- Conductor Size: 6 AWG To 350 KCMIL (Copper/Aluminum) Line, (12) 14 To 4 AWG (Copper) or 12 To 4 AWG (Aluminum) Load
- Finish: Tin Plated
- Flammability Rating: V-0
- For Conductor Material: Aluminum; Copper
- For Maximum Line Wire Size: 350 kcmil
- For Maximum Load Wire Size: 4 AWG
- For Minimum Line Wire Size: 6 AWG
- For Minimum Load Wire Size: 14 AWG
- Housing Color: Black
- Housing Material: Thermoplastic
- Line Connections/Pole: 1
- Line Side Connection Type: Lug
- Load Connections/Pole: 12
- Load Side Connection Type: Lug
- Maximum Current: 310 A
- Maximum Operating Temperature: 248 F
- Maximum Voltage: 600 V AC/DC
- Number of Poles: 2
- Overall Depth: 2 in
- Overall Length: 2 in
- Overall Width: 3 in
- Power Distribution Block Design: Open
- Shape: Rectangular
- Standards: CSA Class 6228-01; UL 1059
- Terminal Material: Aluminum
- Type: Barrier
- Voltage Rating: 600
