BUSSMANN 16530-3 POWER DISTRIBUTION BLOCK
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: 16530-3
IMS Product Code: 2140412
Packaging: Sold Individually
Description:

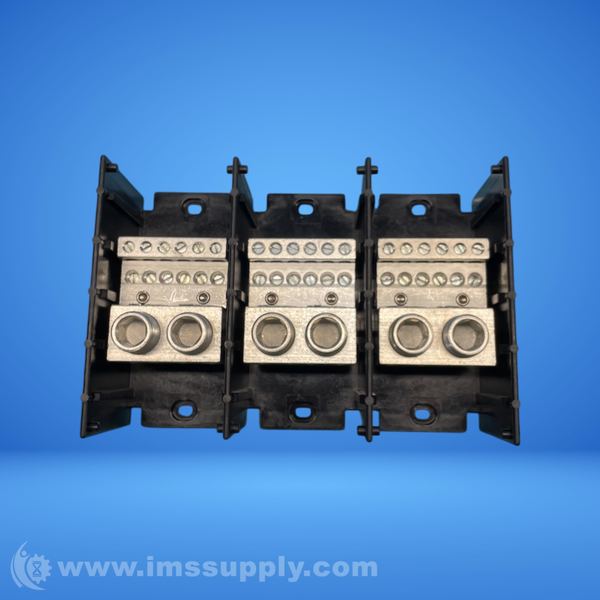

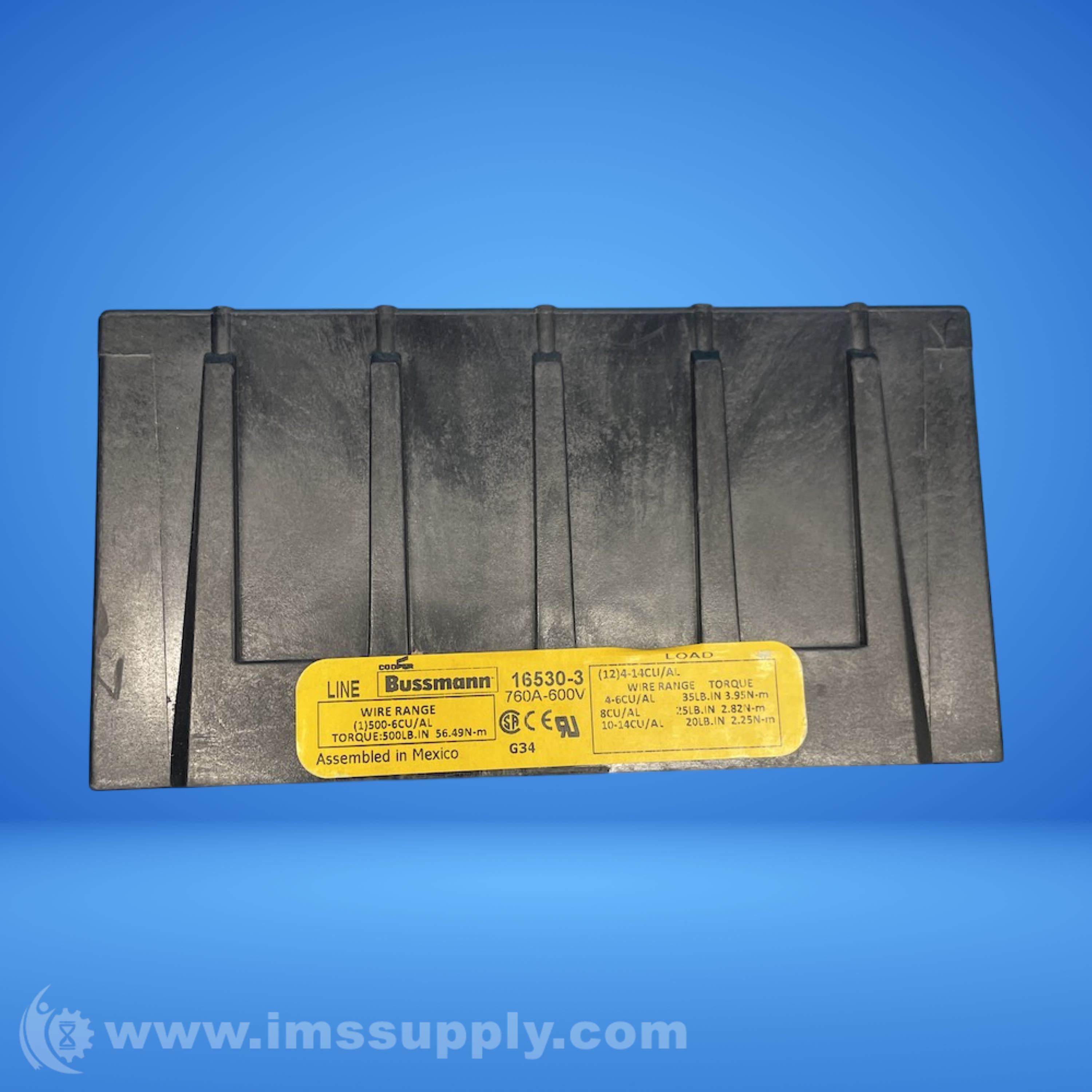

Bussmann 16530-3 Power Distribution Block
3-pole power distribution block with lug termination, 600V, 760A, copper/aluminum conductors, thermoset housing.
Specifications
- Block Type: Power Distribution
- Poles Per Block: 3
- Openings Per Pole, Primary: 2
- Conductor Size - Primary: 6 AWG to 500 MCM
- Openings Per Pole, Secondary: 12
- Conductor Size - Secondary: 14 to 4 AWG
- Conductor Material: Copper/Aluminum
- Material - Housing: Thermoset
- Material - Connector: Aluminum
- Rating - Voltage: 600V
- Rating - Amps: 760
- Maximum Operating Temperature: 248 degrees F
- Overall Depth: 2.89 in
- Overall Length: 5.48 in
- Overall Width: 8 in
- Power Distribution Block Design: Open
- Standards: CSA Class 6228-01; UL 1059
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
